Serpentine Pavilion

LONDON, ENGLAND

2016

CLIENT

Serpentine Galleries

TYPOLOGY

Culture

SIZE M2/FT2

300 / 3,229

STATUS

COMPLETED

When invited to design the 2016 Serpentine Pavilion, BIG decided to work with one of the most basic elements of architecture: the brick wall. Rather than clay bricks or stone blocks – the wall is erected from extruded fiberglass frames stacked on top of each other.

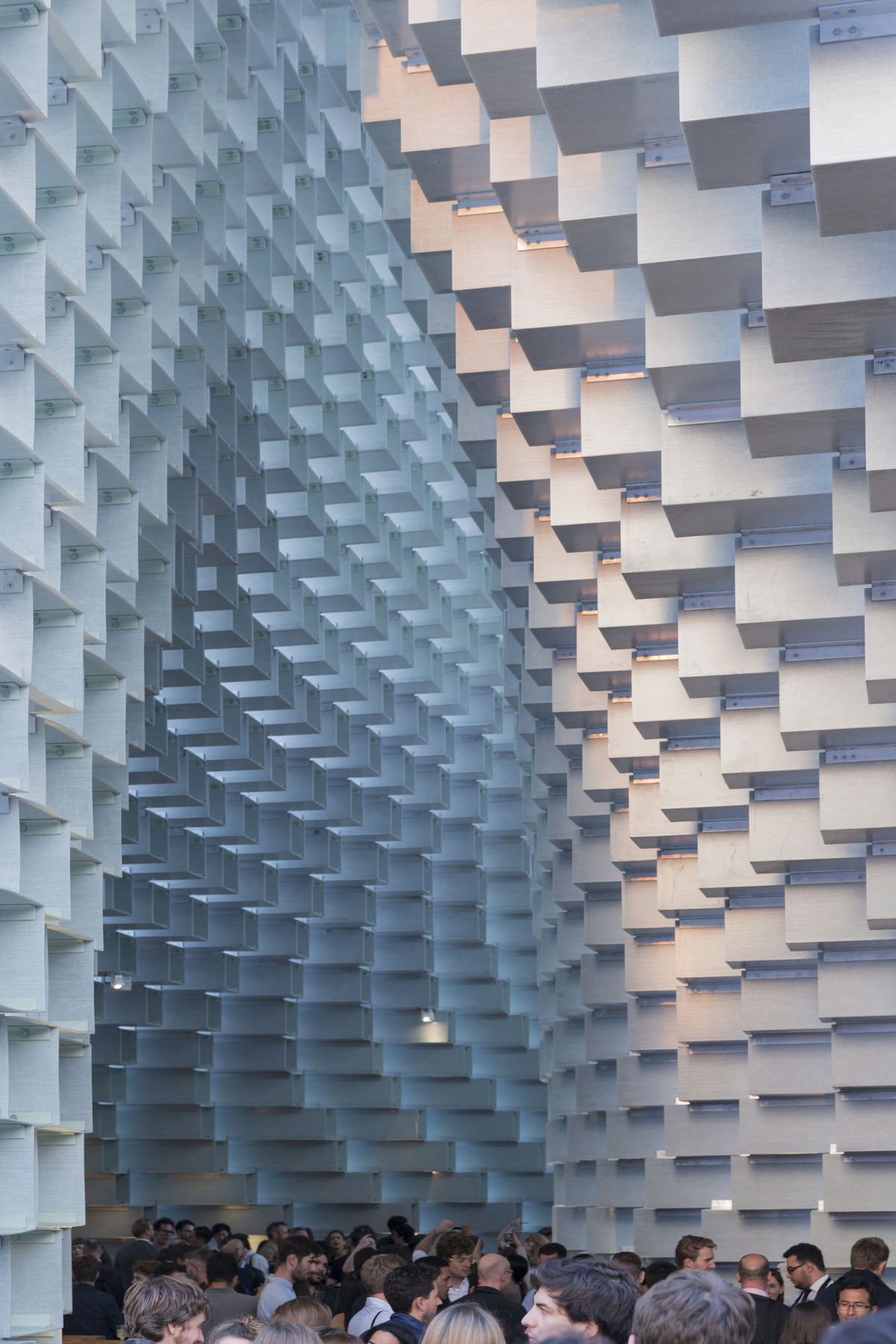

The unzipped Serpentine ‘wall’ creates a cave-like canyon lit through the fiberglass frames, the gaps between the shifted boxes and the translucent resin of the fiberglass. As a result, the structure embodies multiple aspects that are often perceived as opposites: a structure that is free-form yet rigorous, modular yet sculptural, transparent and opaque, box and blob.

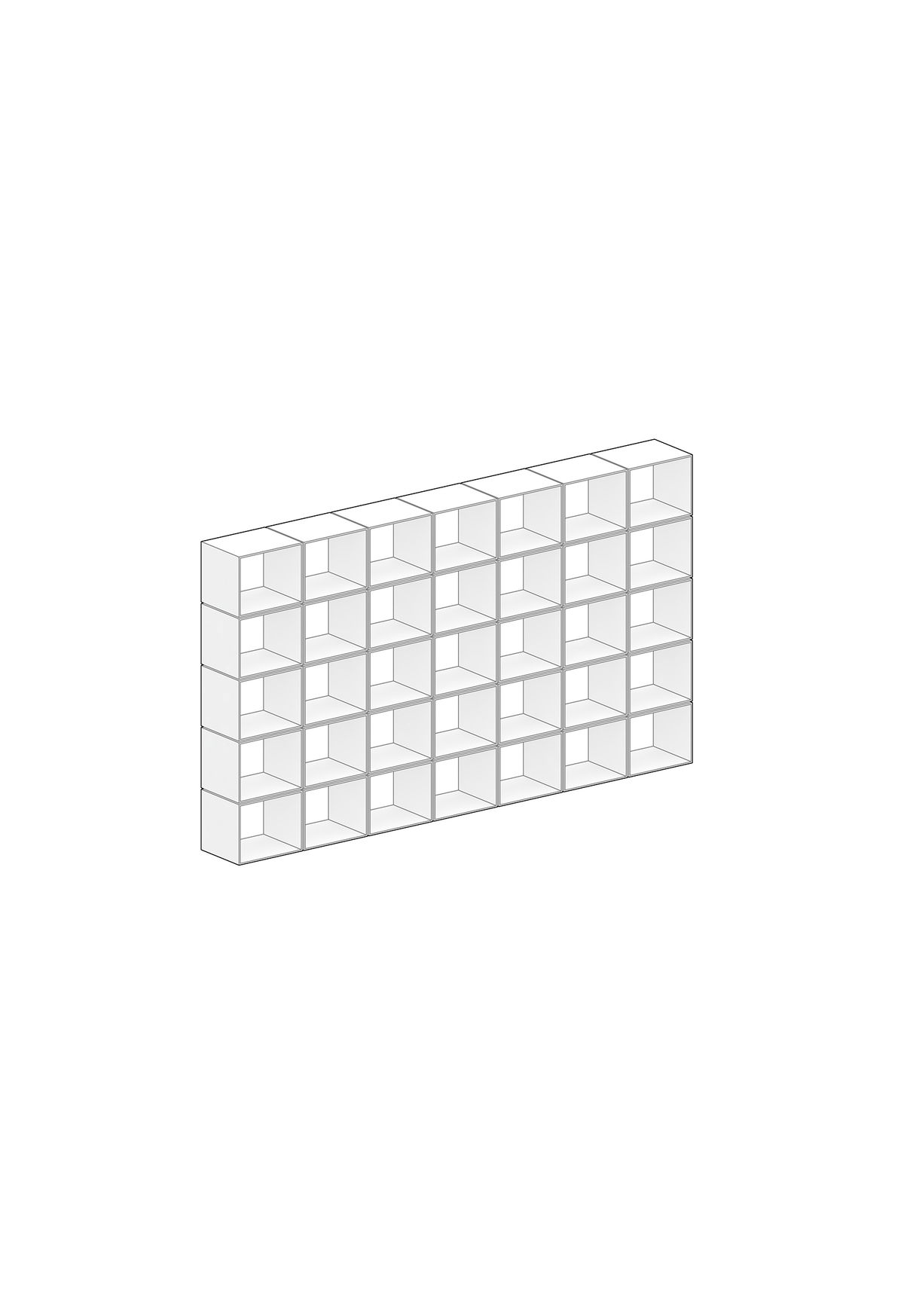

Wall Structure — Boxes and profiles are arranged in an orthogonal grid.

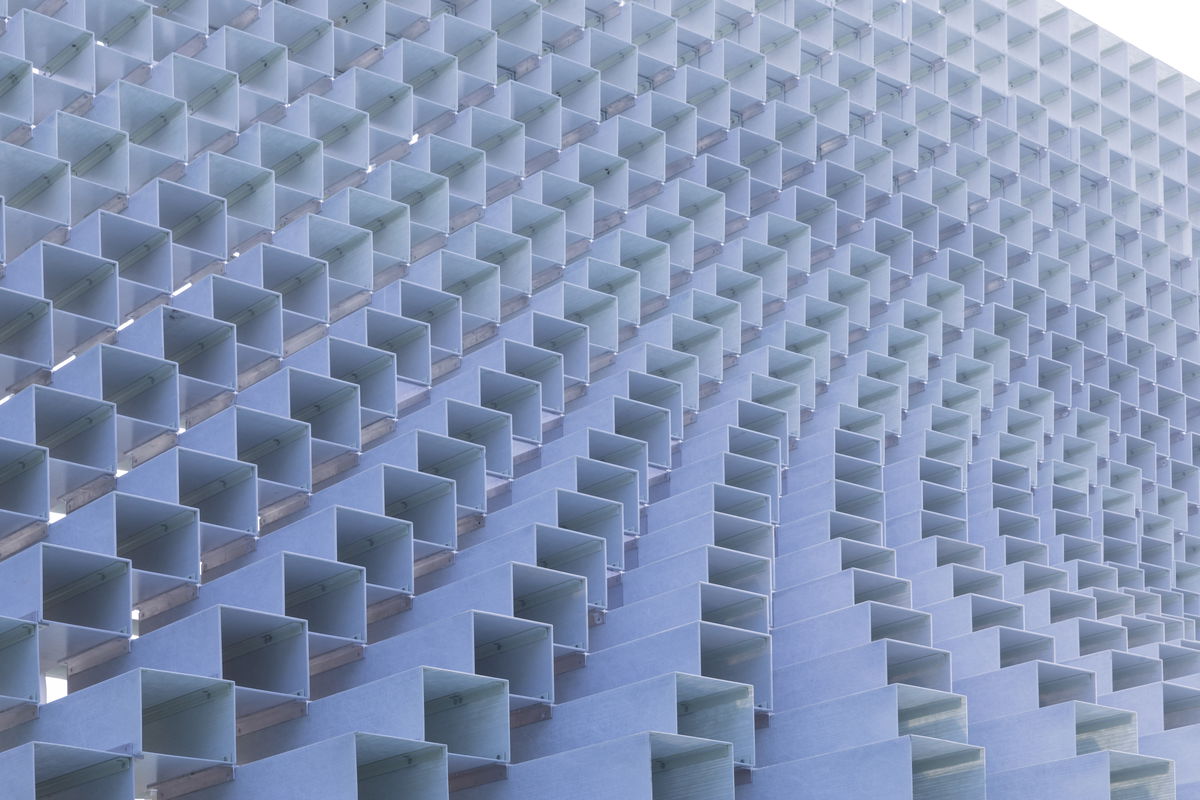

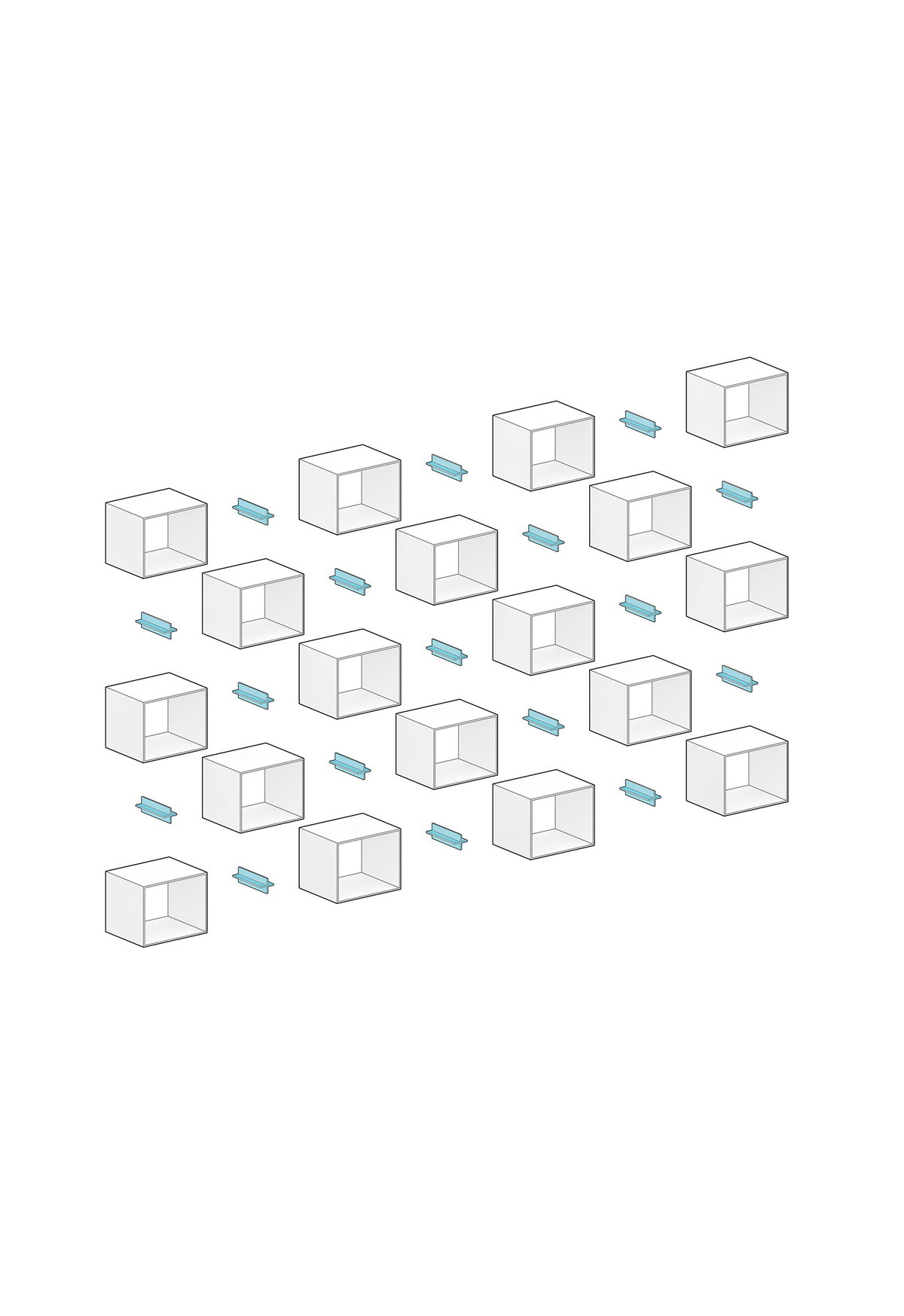

Wall Components — The wall consists of 1,802 glass fiber boxes (400 mm x 500 mm) with 2,890 cruciform aluminum extrusions.

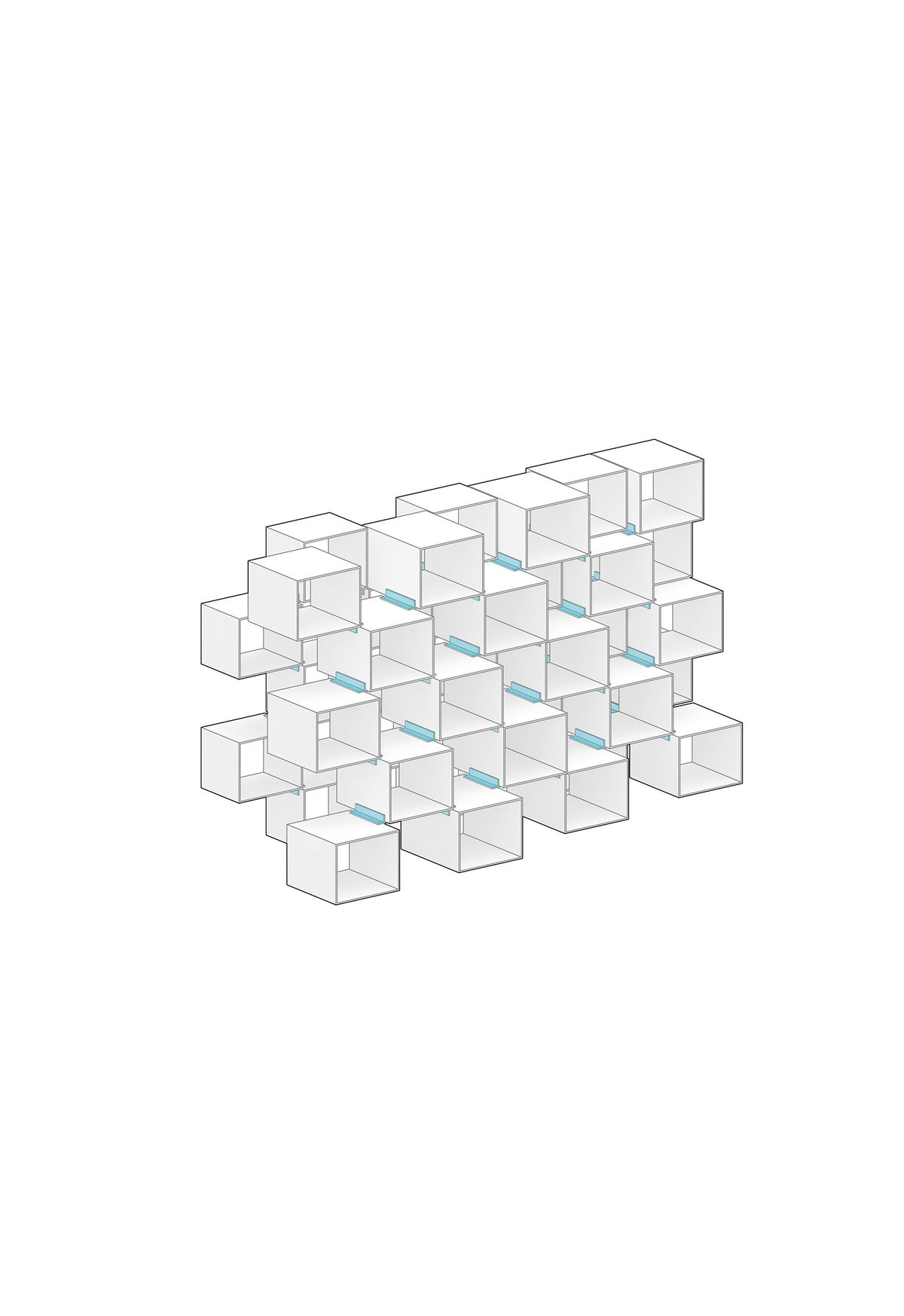

Spatial Wall — The boxes slide inwards and outwards in a checkerboard pattern, unfolding in two layers.

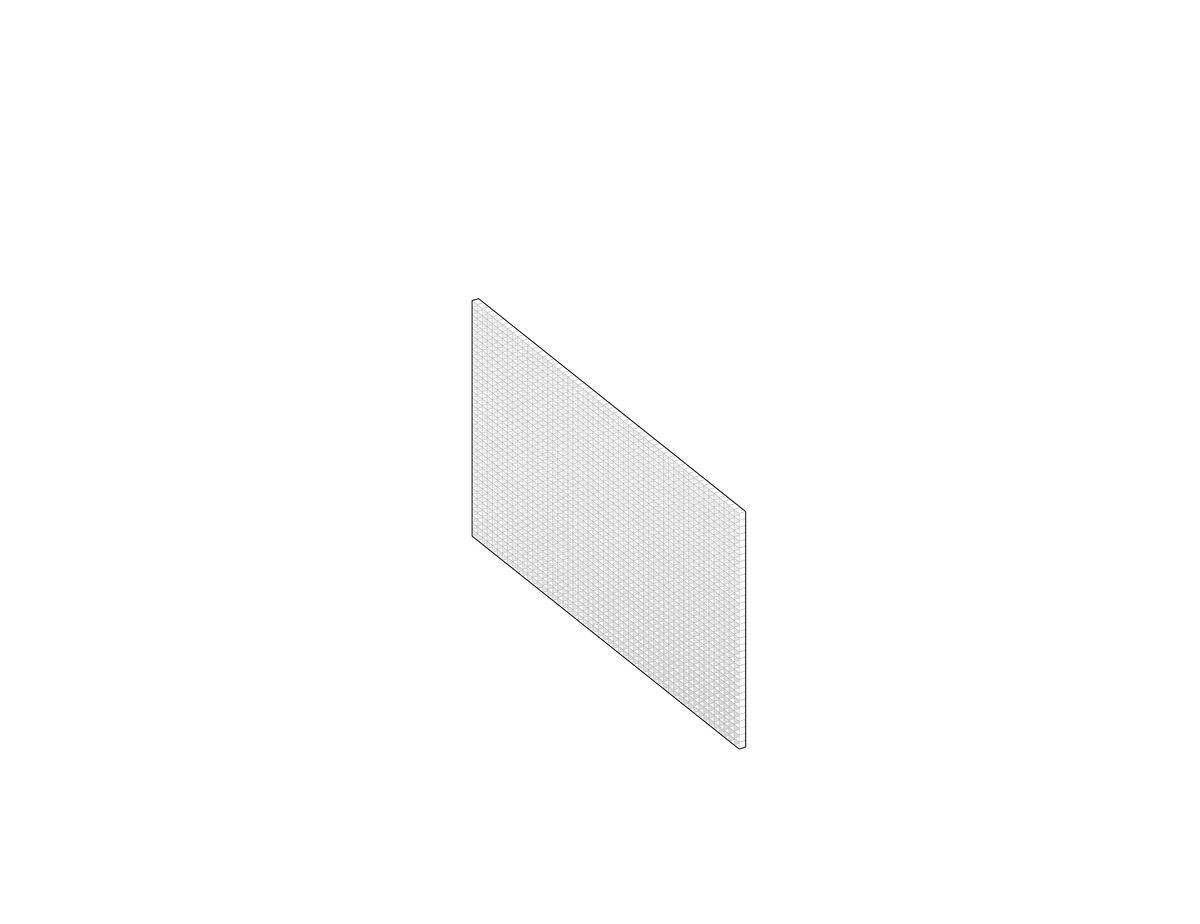

The Wall — Exploration of a basic architectural element: the brick wall.

Unzip — The single wall is pulled apart in a checkered pattern, creating two elevations.

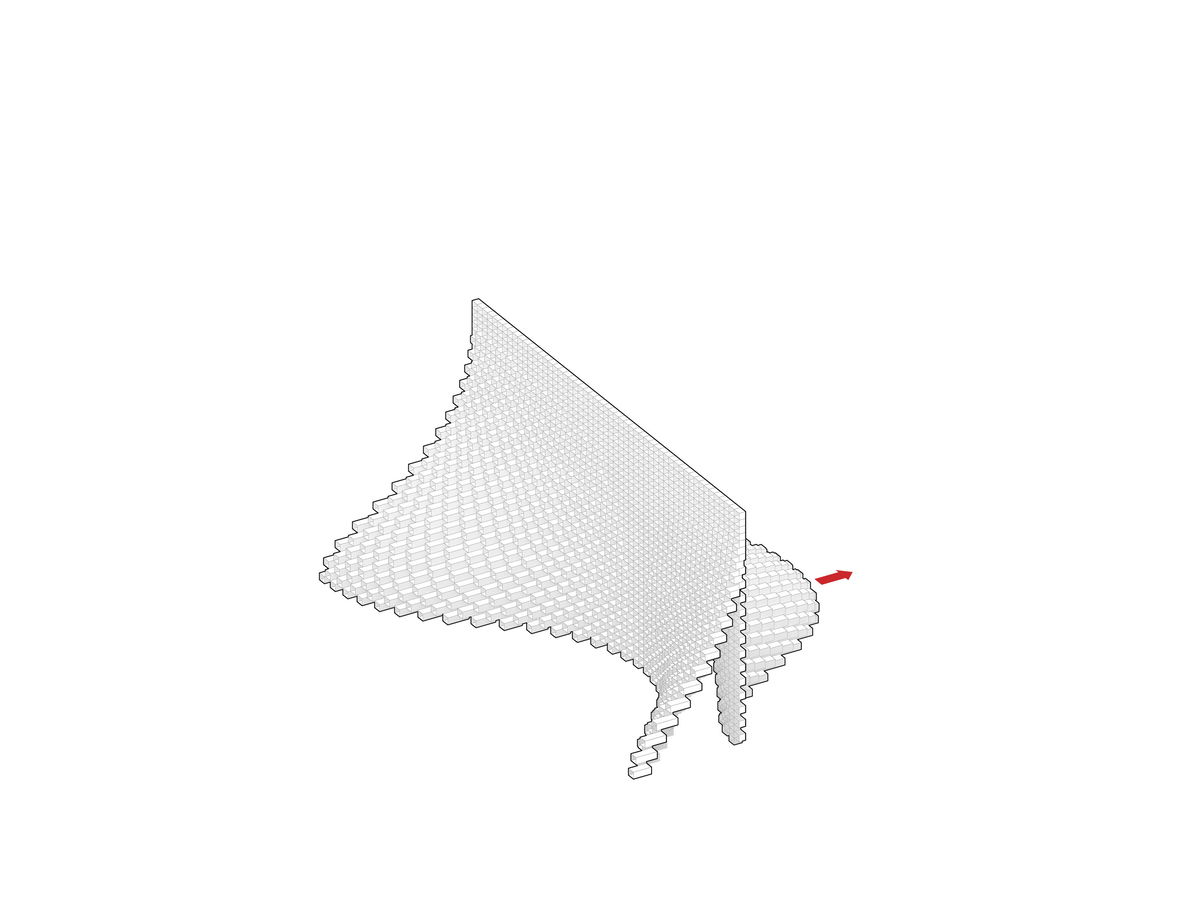

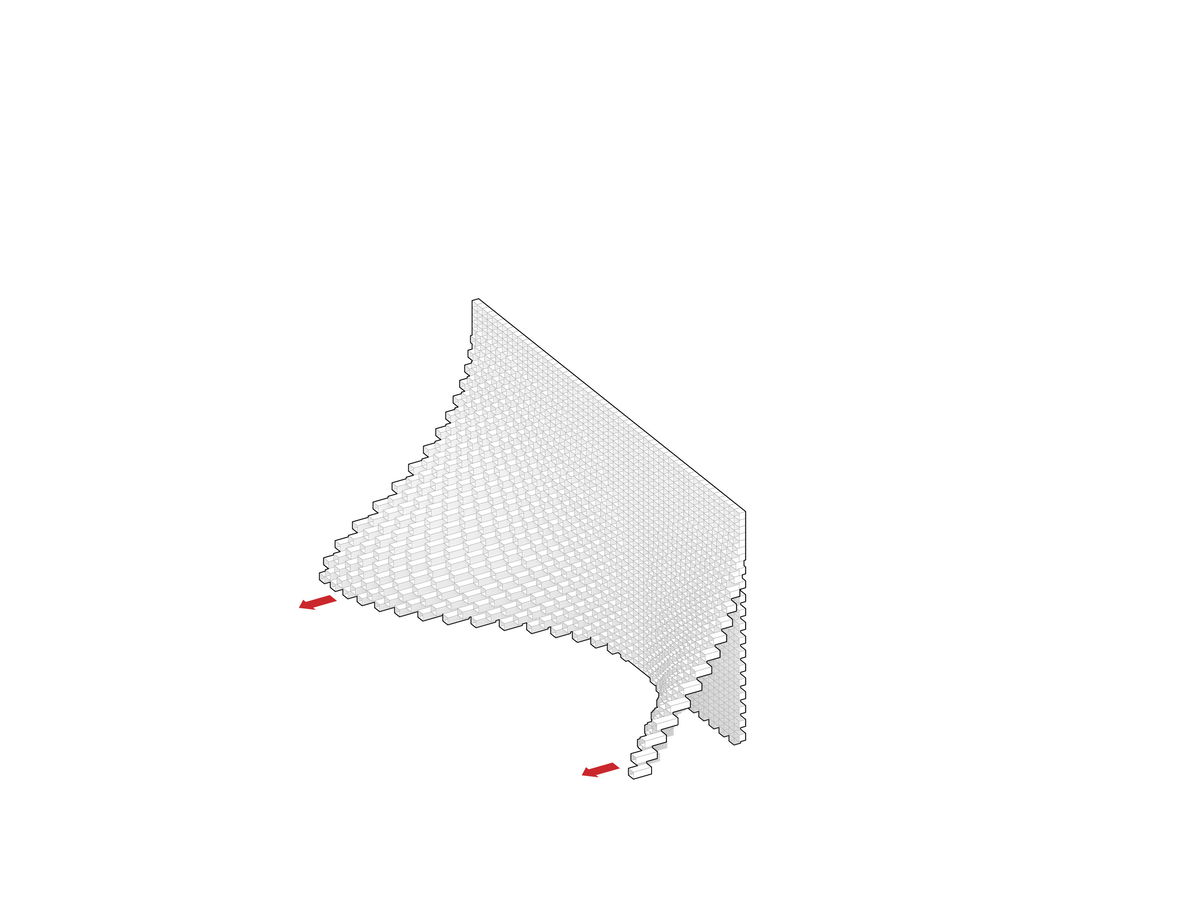

Wall Becomes Space — The straight wall transforms into two sine curves with an undulating interior.

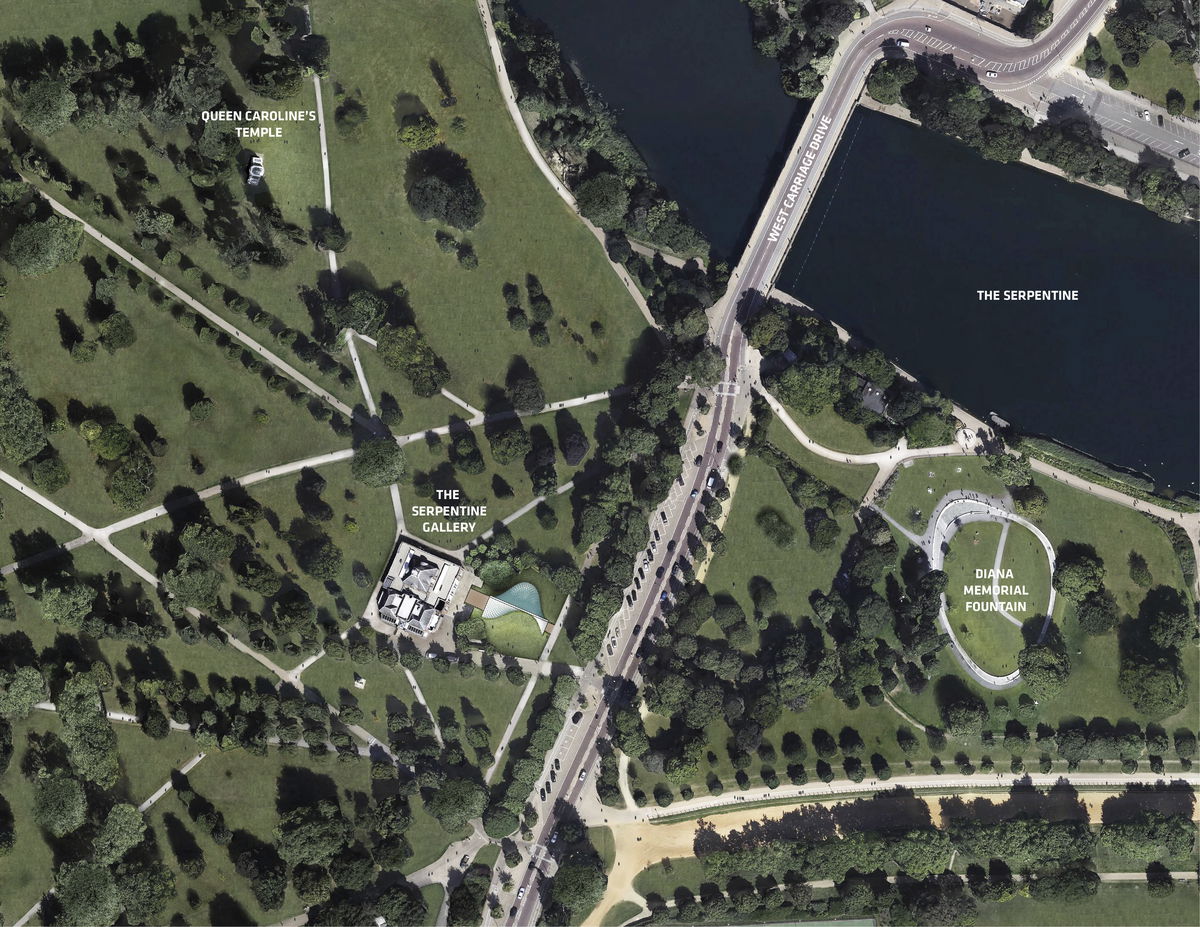

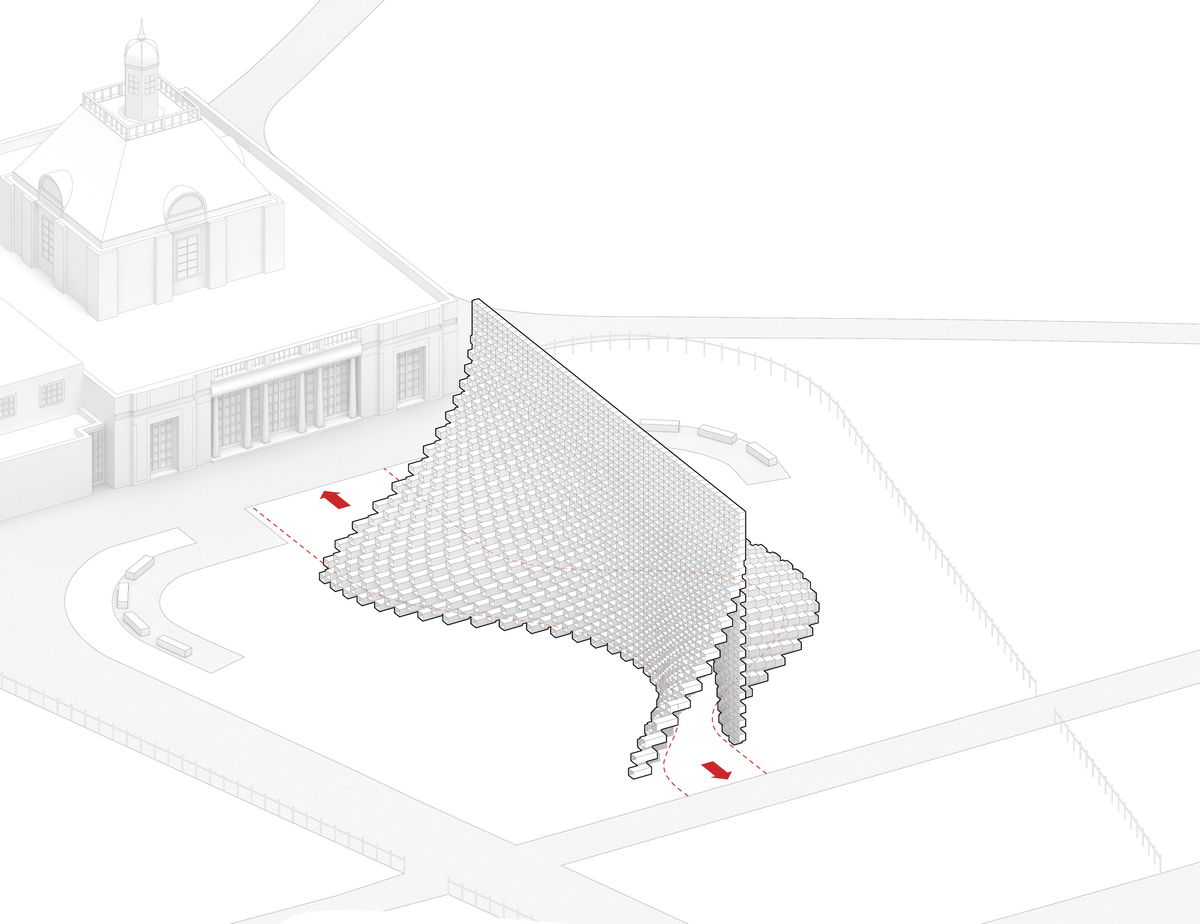

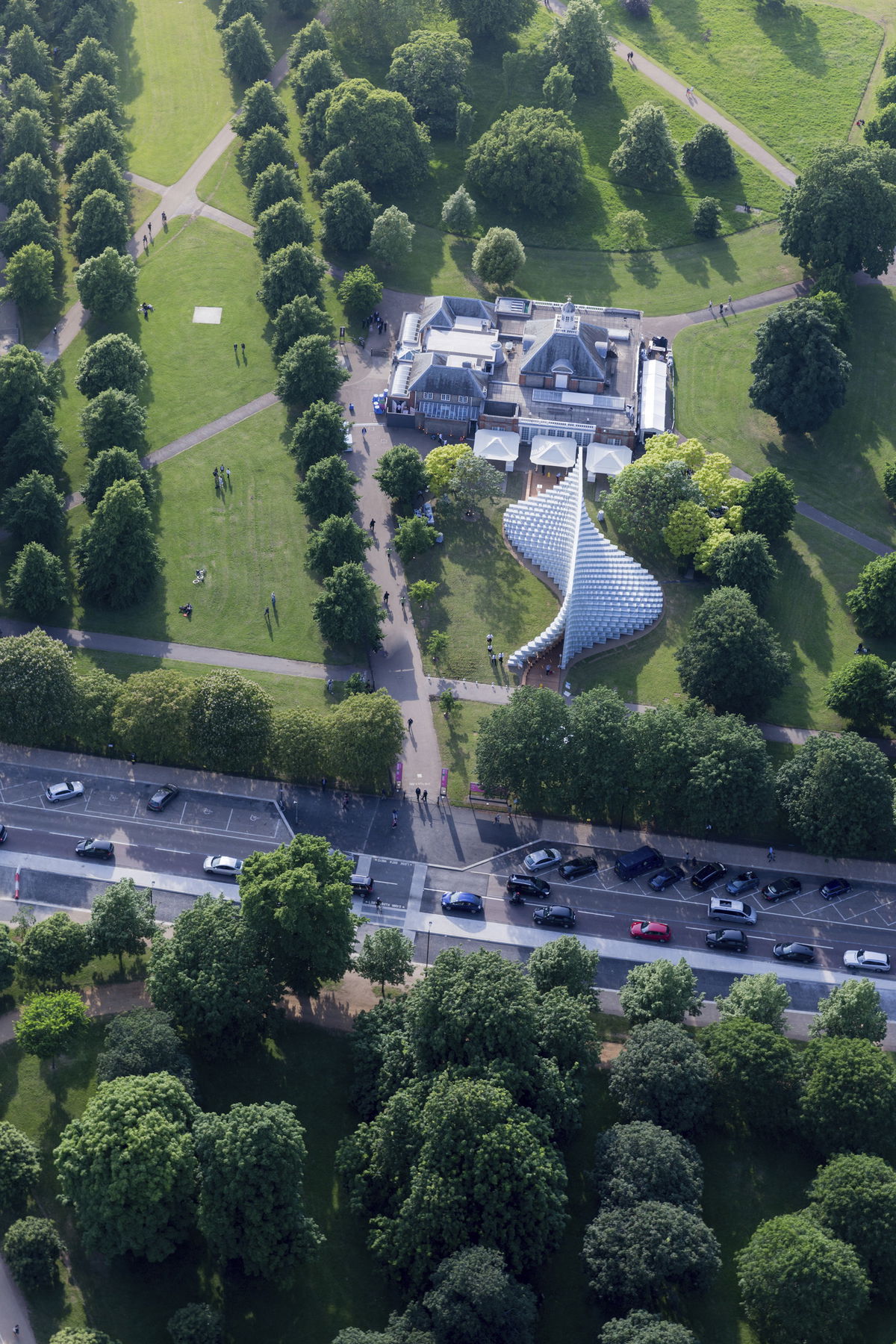

Site — The pavilion is positioned perpendicular to the gallery. At ground level, the gallery's front terrace and lower walkway are connected via the interior space.

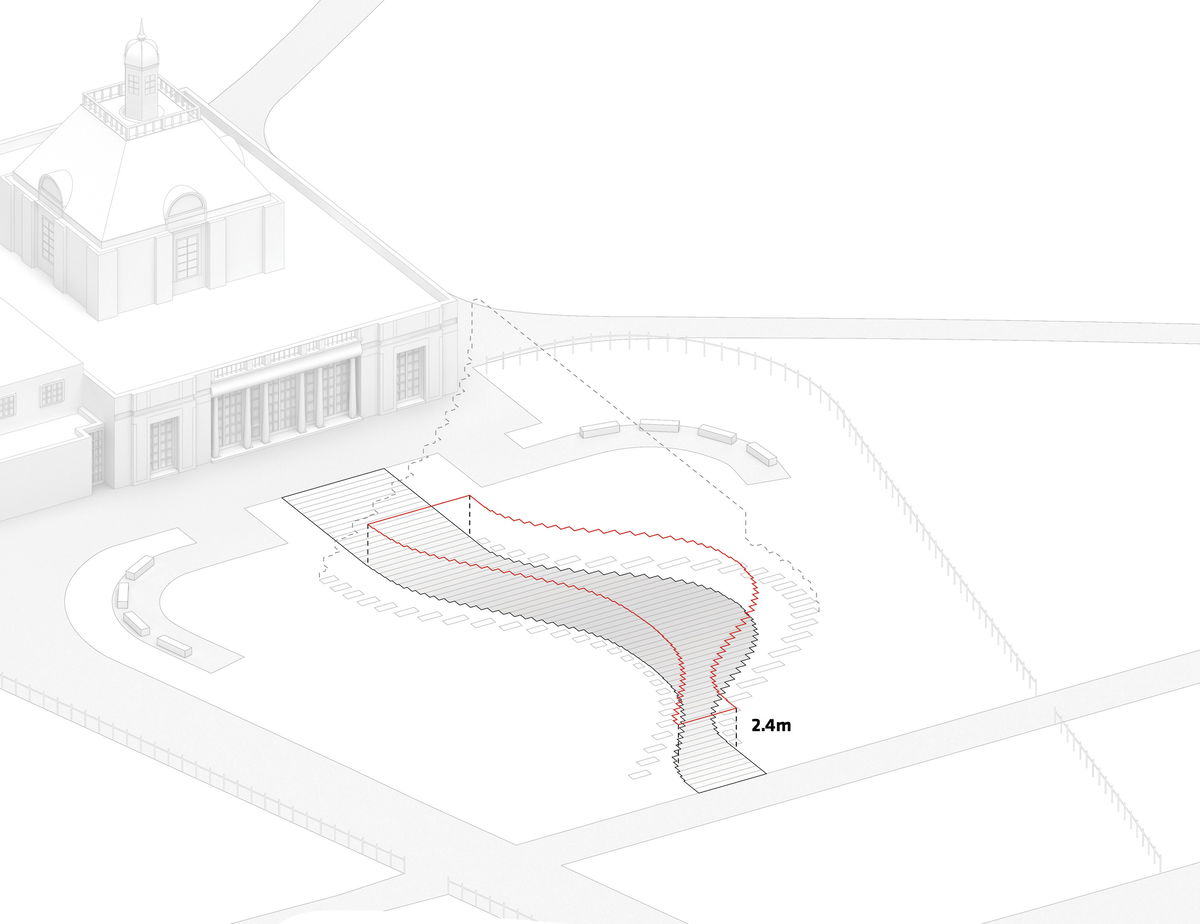

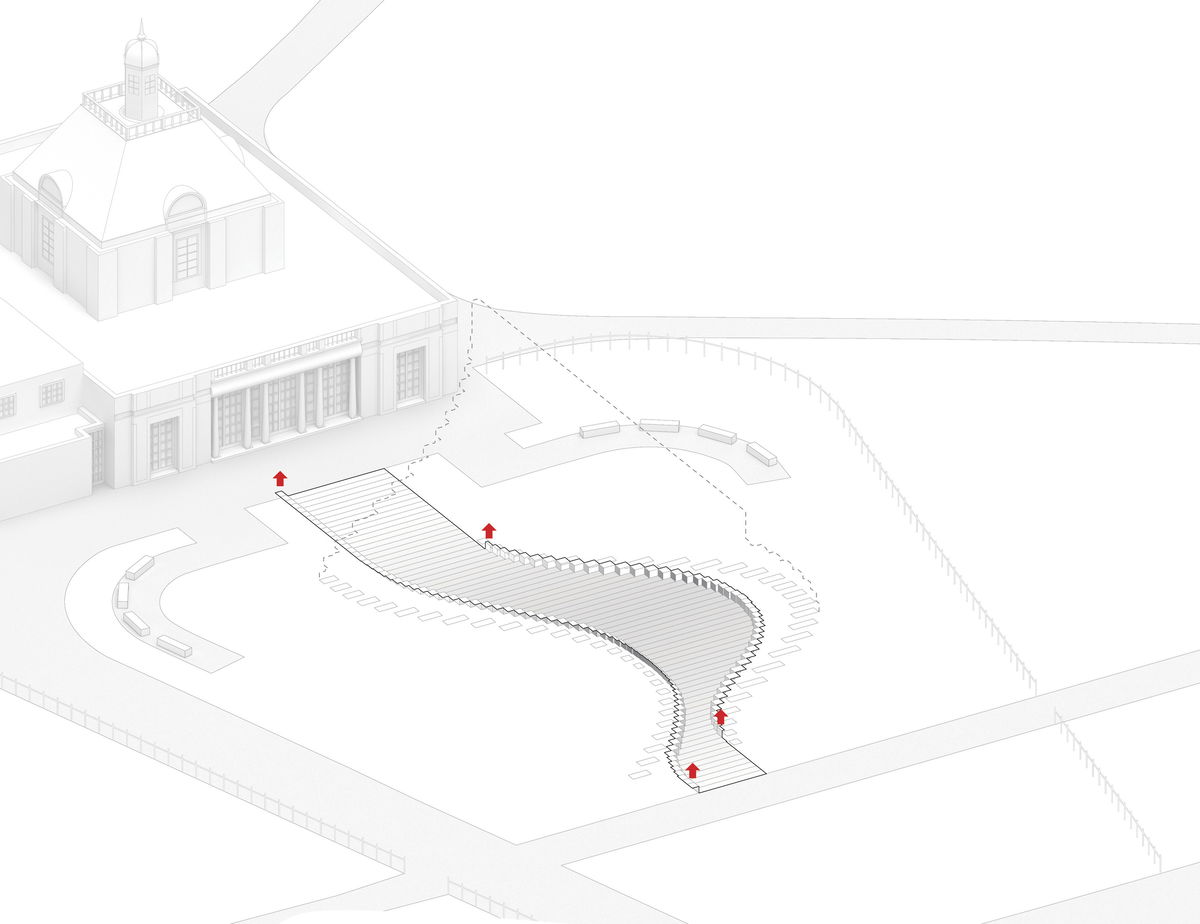

Interior Space — Usable space is defined by hand-clearance height. The interior pavement is shaped by the curve of the walls, extending on both ends to provide a smooth transition between interior and exterior.

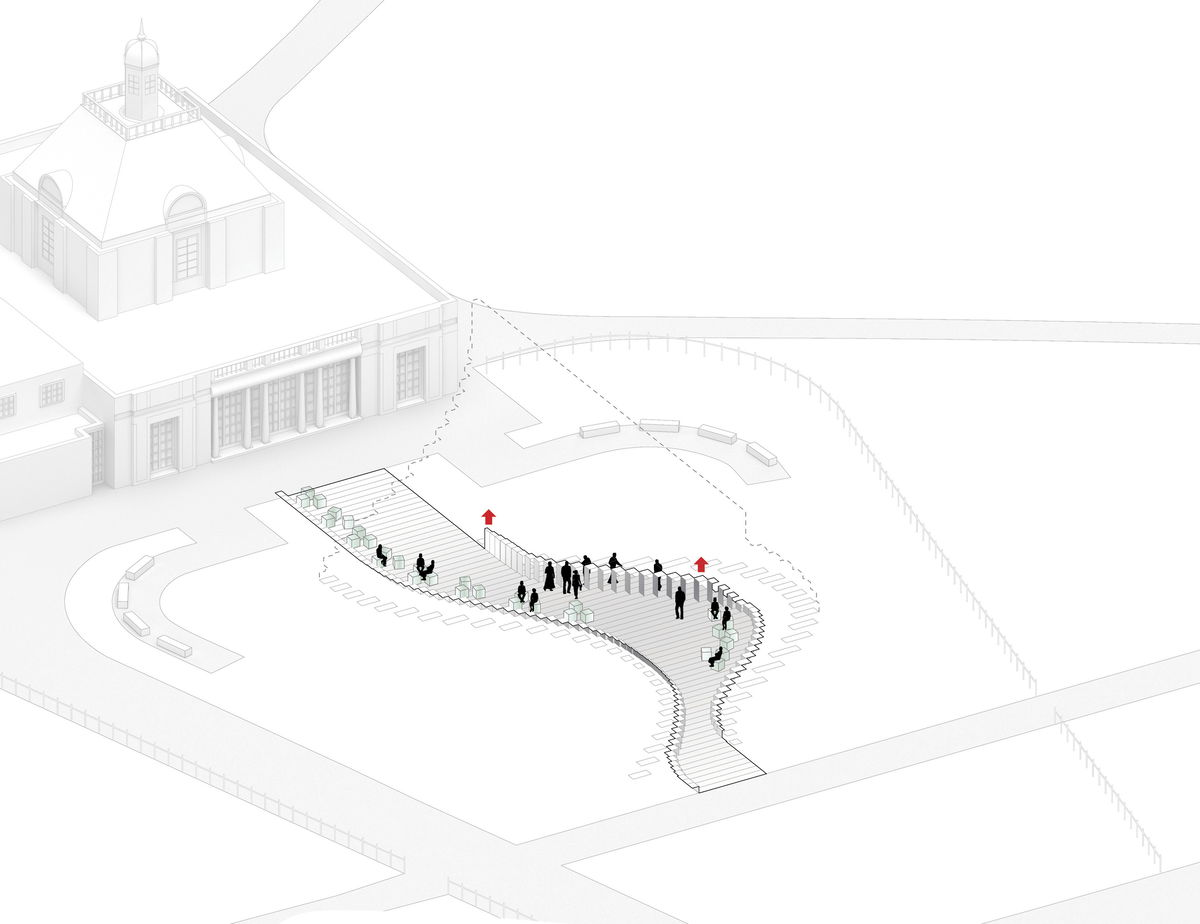

Integrated Bench — The edges of the path fold upwards to become a continuous bench.

Bench Becomes Bar — The bench grows upwards into a bar counter, providing space for the pavilion's cafe.

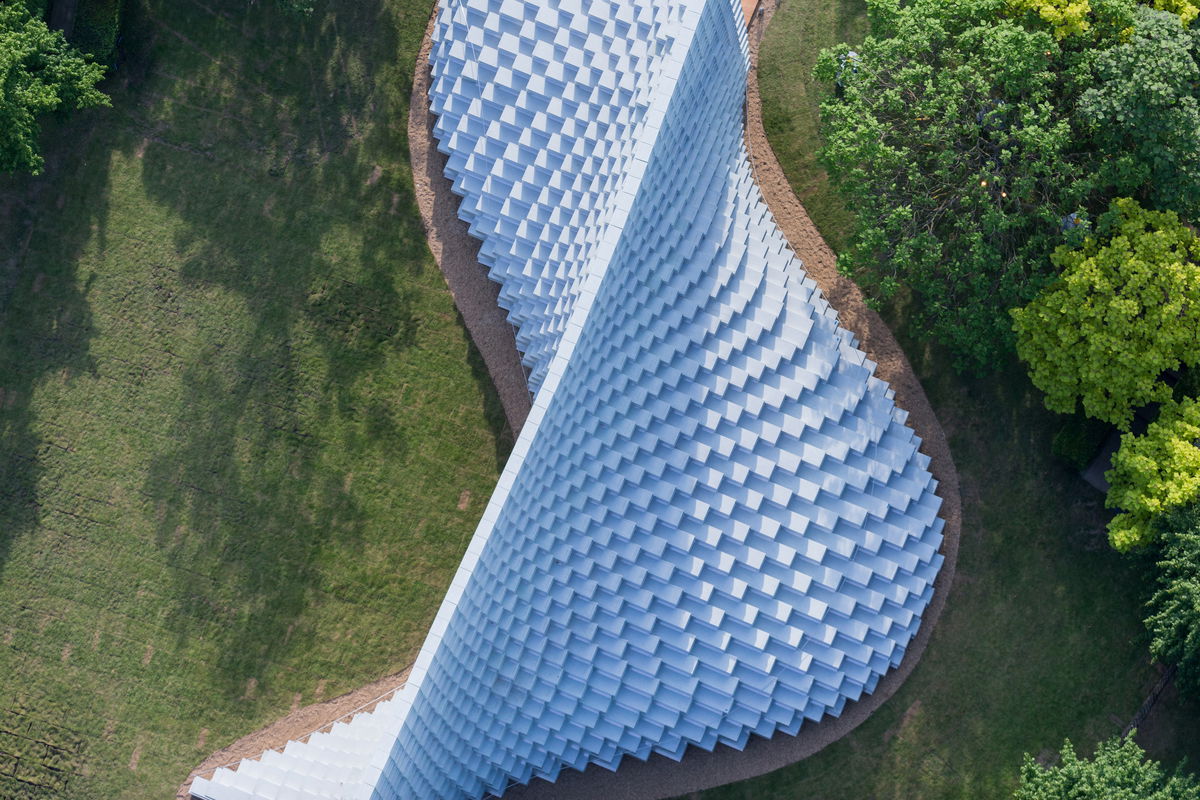

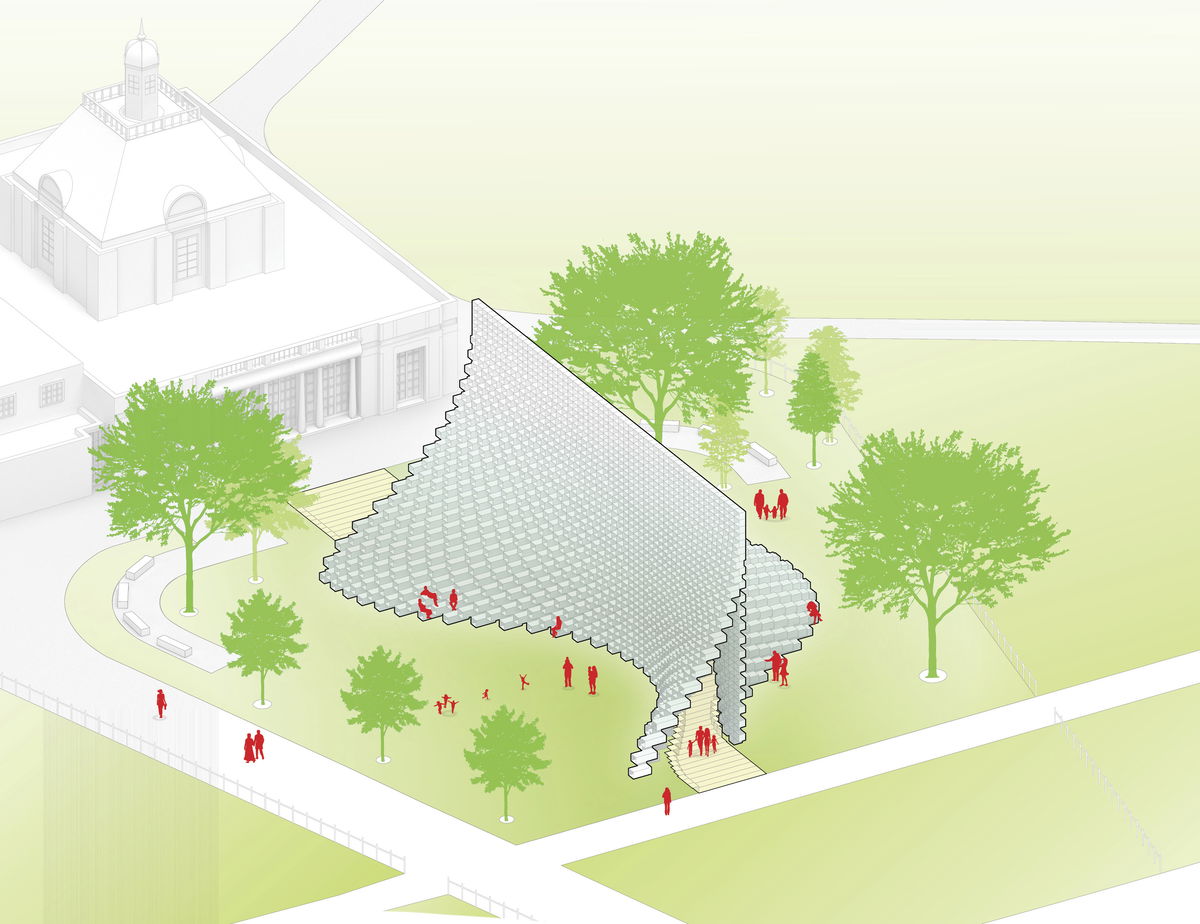

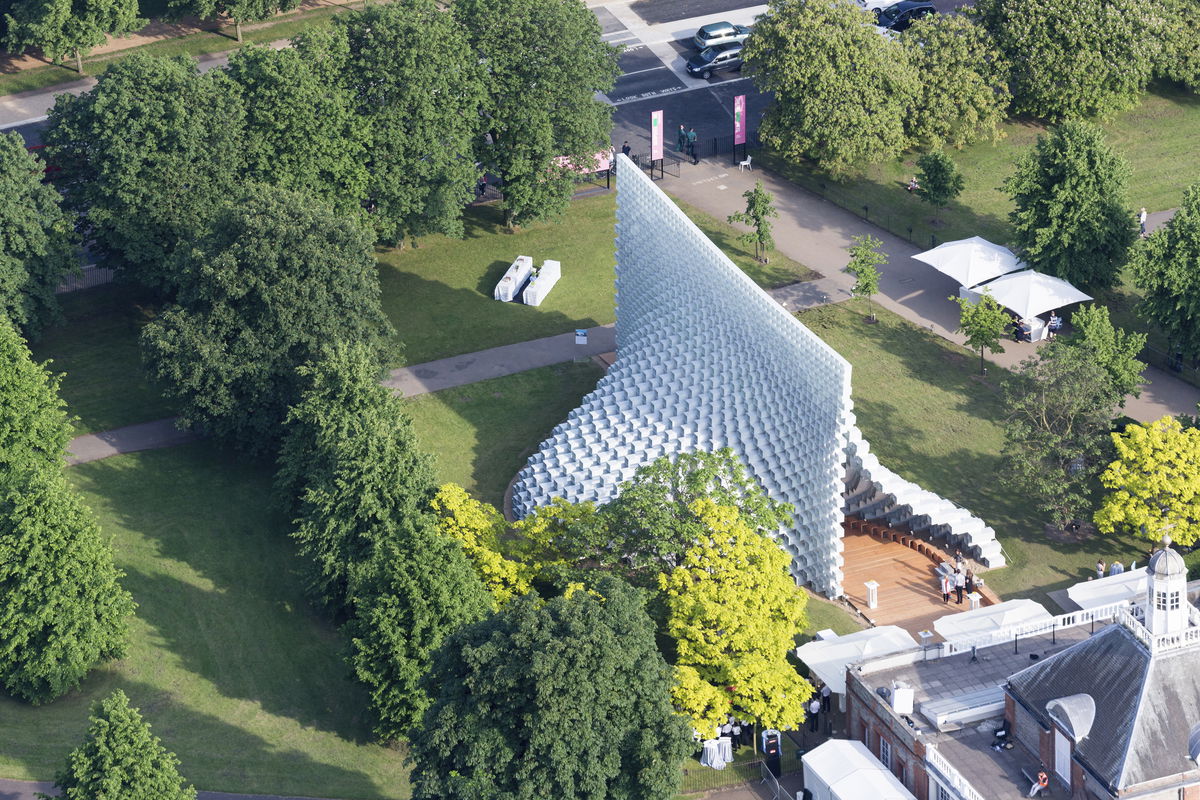

Serpentine Pavilion — The resulting serpentine wall provides a sheltered, sunny valley towards the entrance and a hillside towards the park. On the interior, the unzipped wall creates a light-filled canyon.

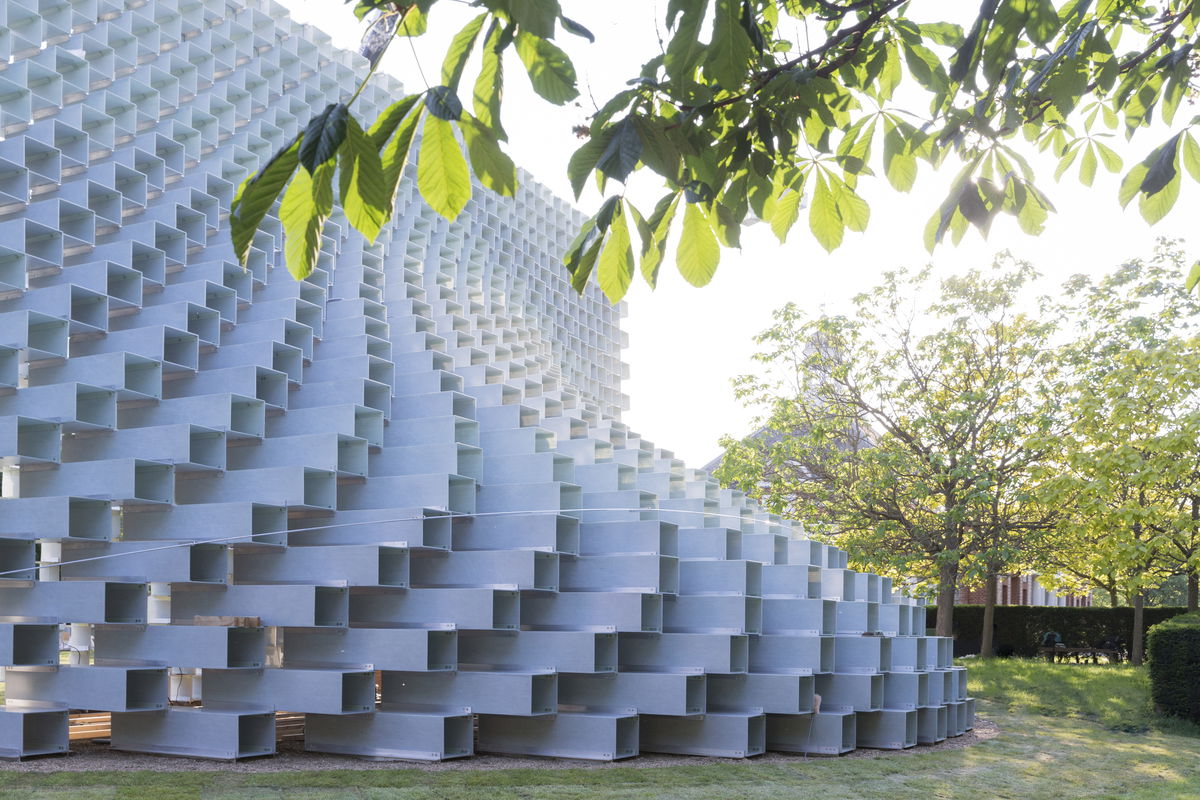

At the top, the wall appears like a straight line, while the bottom of it forms a sheltered valley at the entrance of the Pavilion and an undulating hillside towards the park.

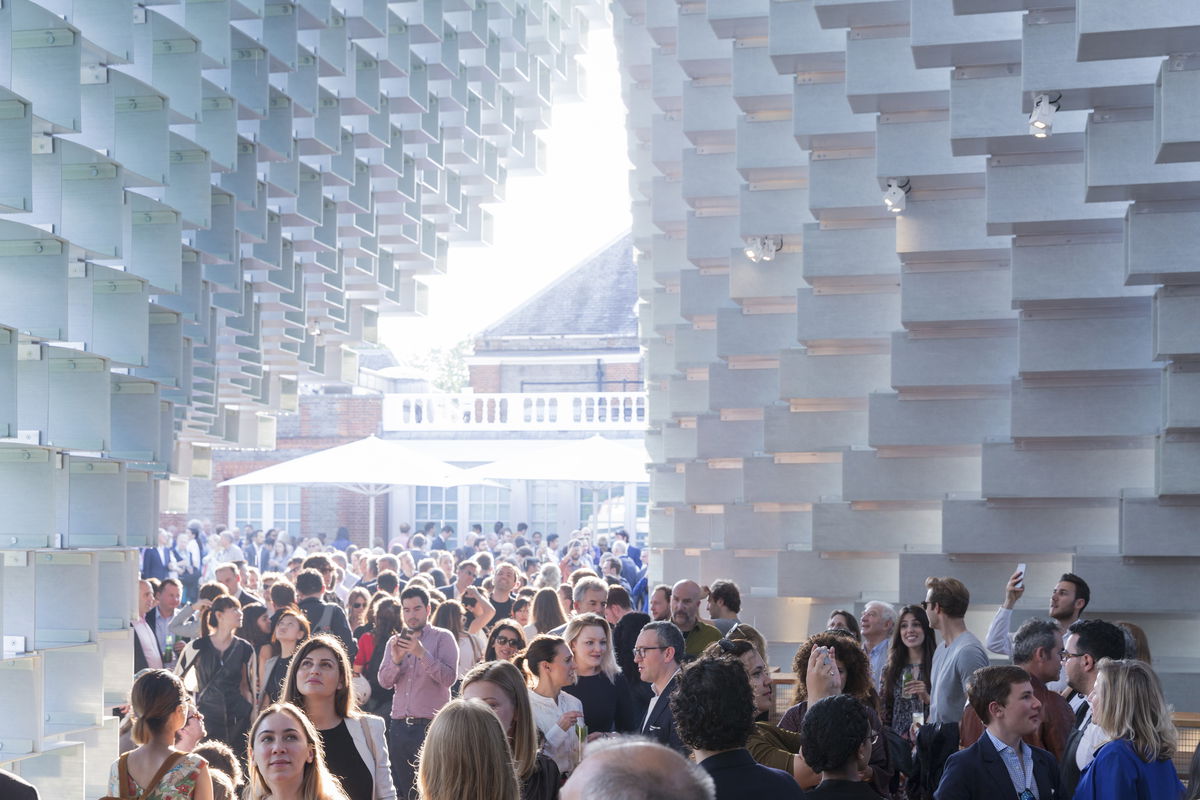

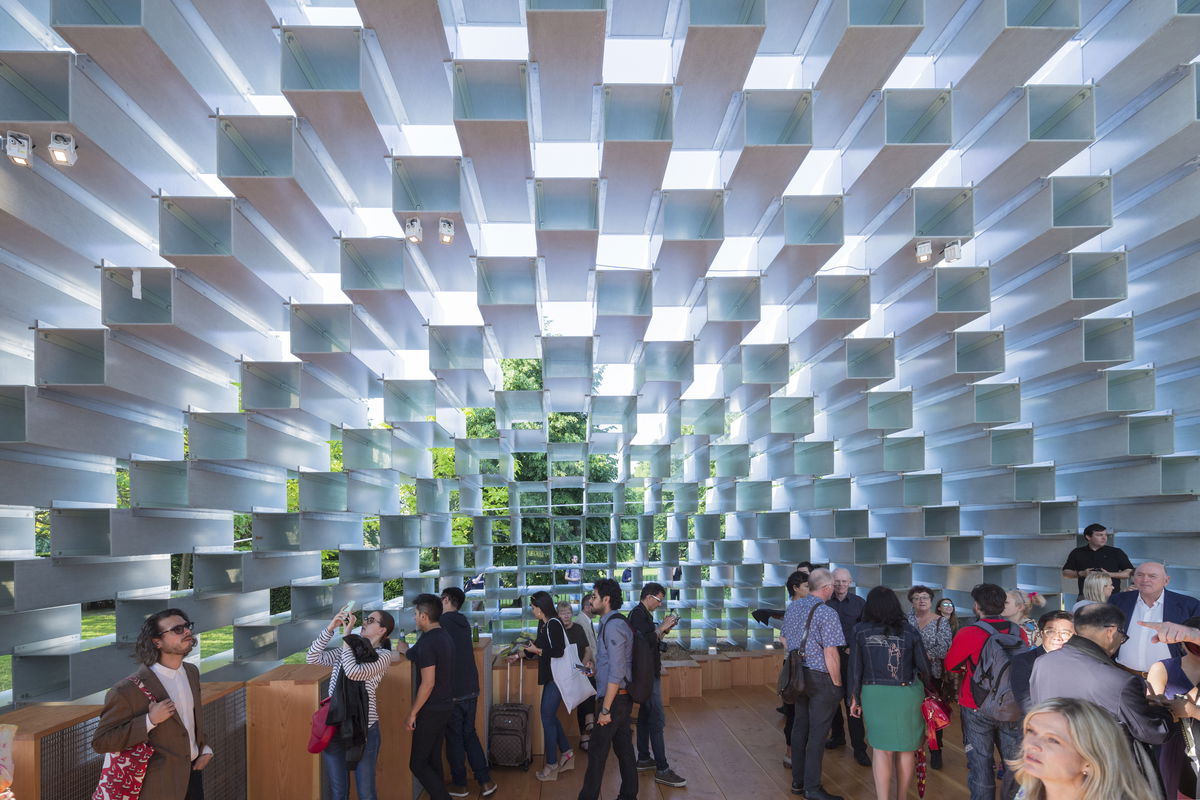

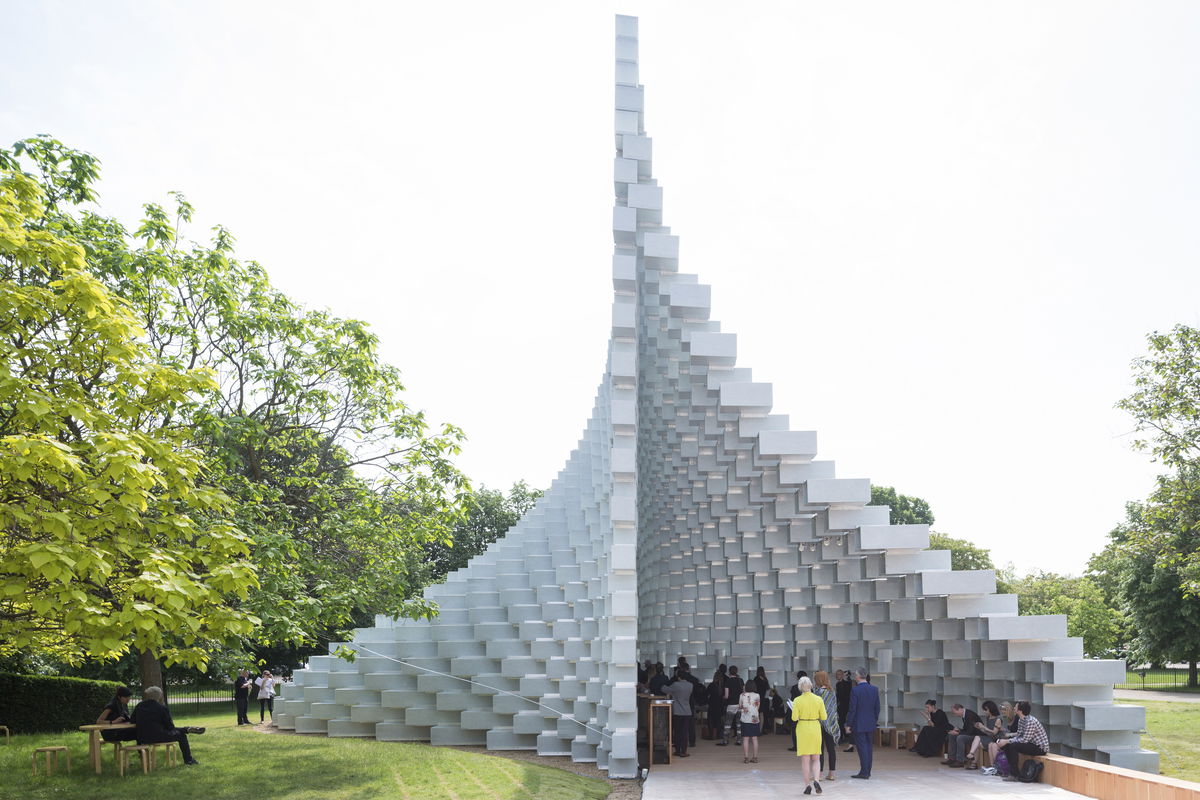

The wall is pulled apart to form a cavity within it, to house the events of the Pavilion’s program. The unzipping of the wall turns the line into a surface, transforming the wall into a space. A complex three-dimensional environment is created that can be explored and experienced in a variety of ways: inside and outside.

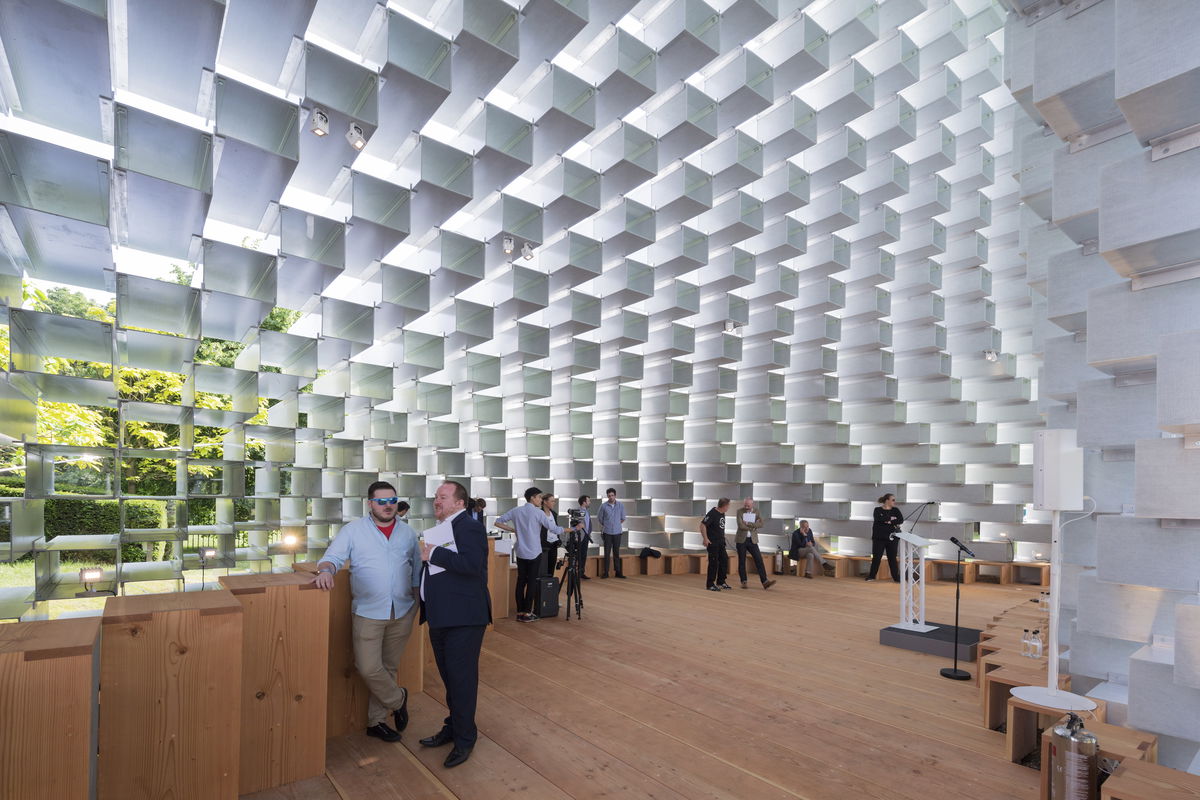

The materials include wooden floors and extruded Lay Light by Fiberline profiles, providing every surface with a warm glow and linear texture – from the mesh of woven glass fibers to the undulating lines of the grain of the wood.

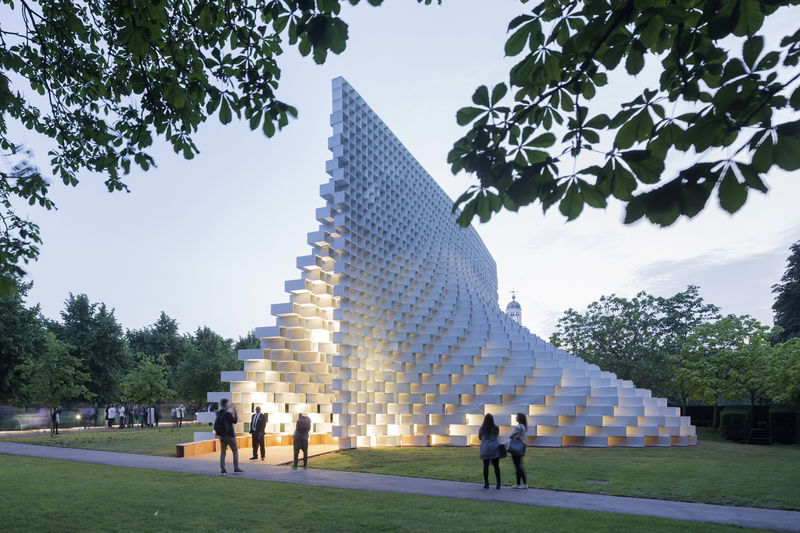

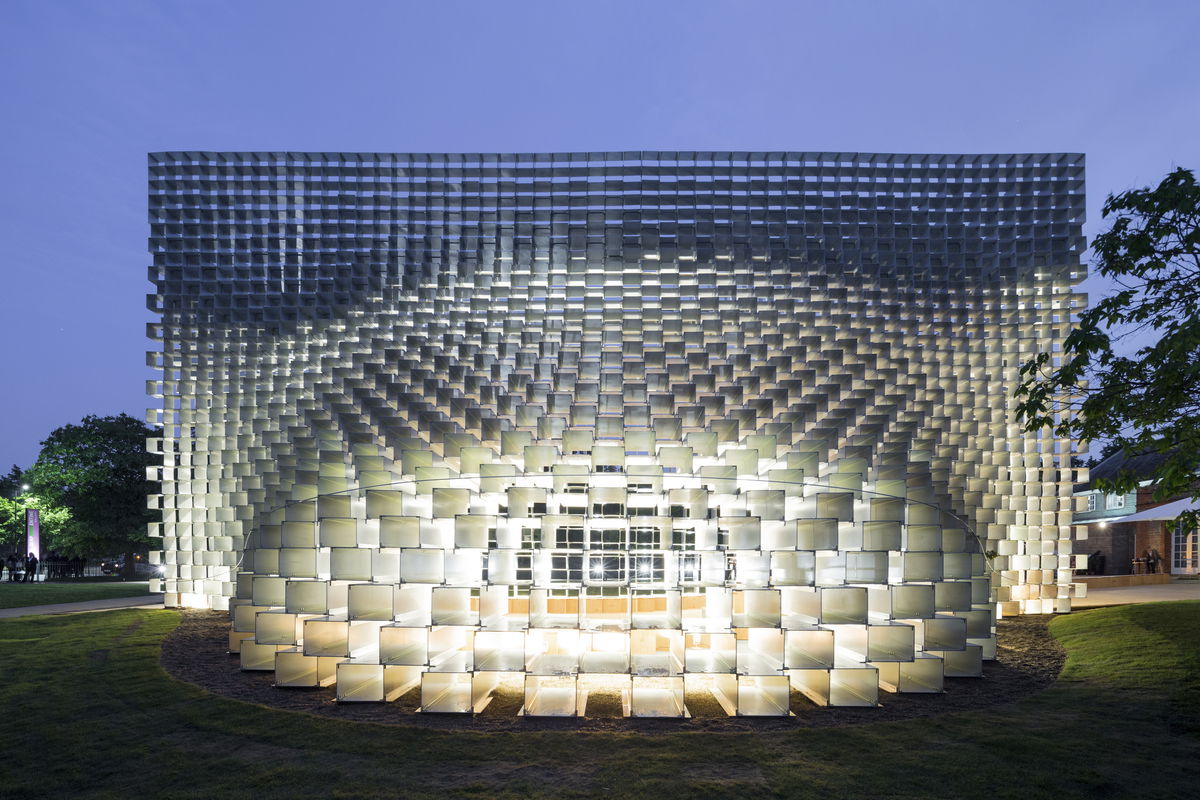

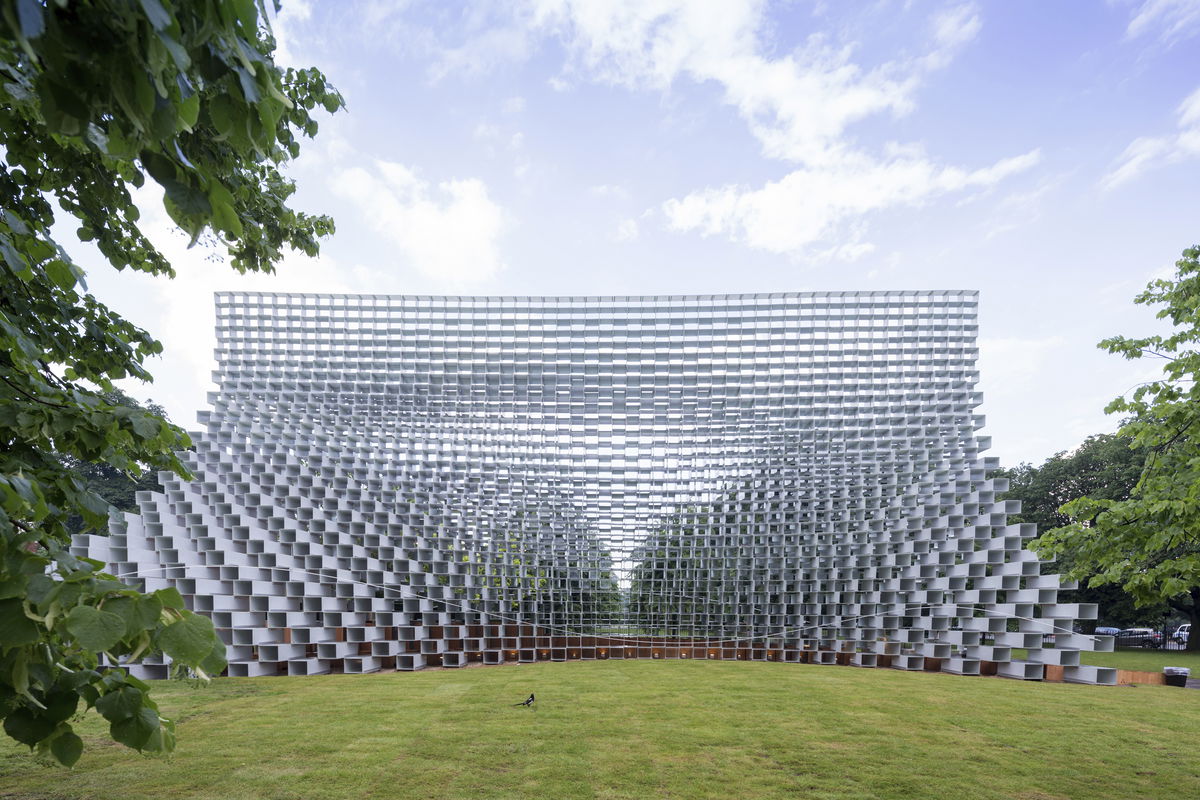

The simple manipulation of the archetypical space-defining garden wall creates a presence in the Park that changes as you move around it and through it. The north-south elevation of the Pavilion is a perfect rectangle. The east-west elevation is an undulating sculptural silhouette. Towards the east-west, the Pavilion is completely opaque and material. Towards the north-south, it is entirely transparent and practically immaterial. As a result, presence becomes absence, orthogonal becomes curvilinear, structure becomes gesture and box becomes blob.
