STATUS
COMPLETED
CLIENT
Terra Group
TYPOLOGY
Residential, Interiors
SIZE M2/FT2
58,900 / 634,000
SHARE
Miami architecture is generally characterized by three key elements: shade, balconies, and water views. The city’s iconic Art Deco style turns shading devices and balconies into ornamental elements. The Grove at Grand Bay is BIG’s attempt at creating the best possible living conditions with the simplest possible means in a city famed for its ornamental modern vernacular.

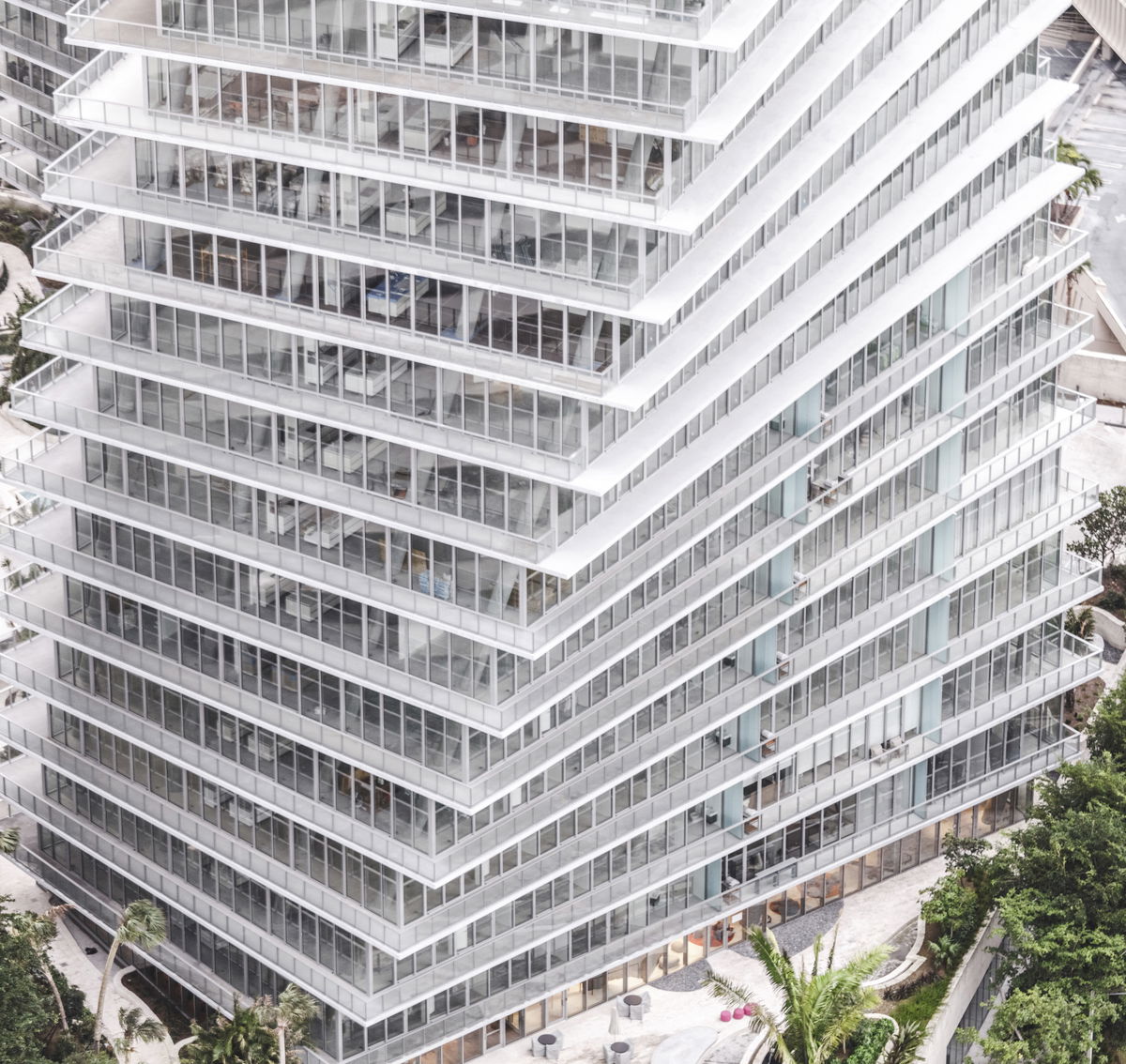

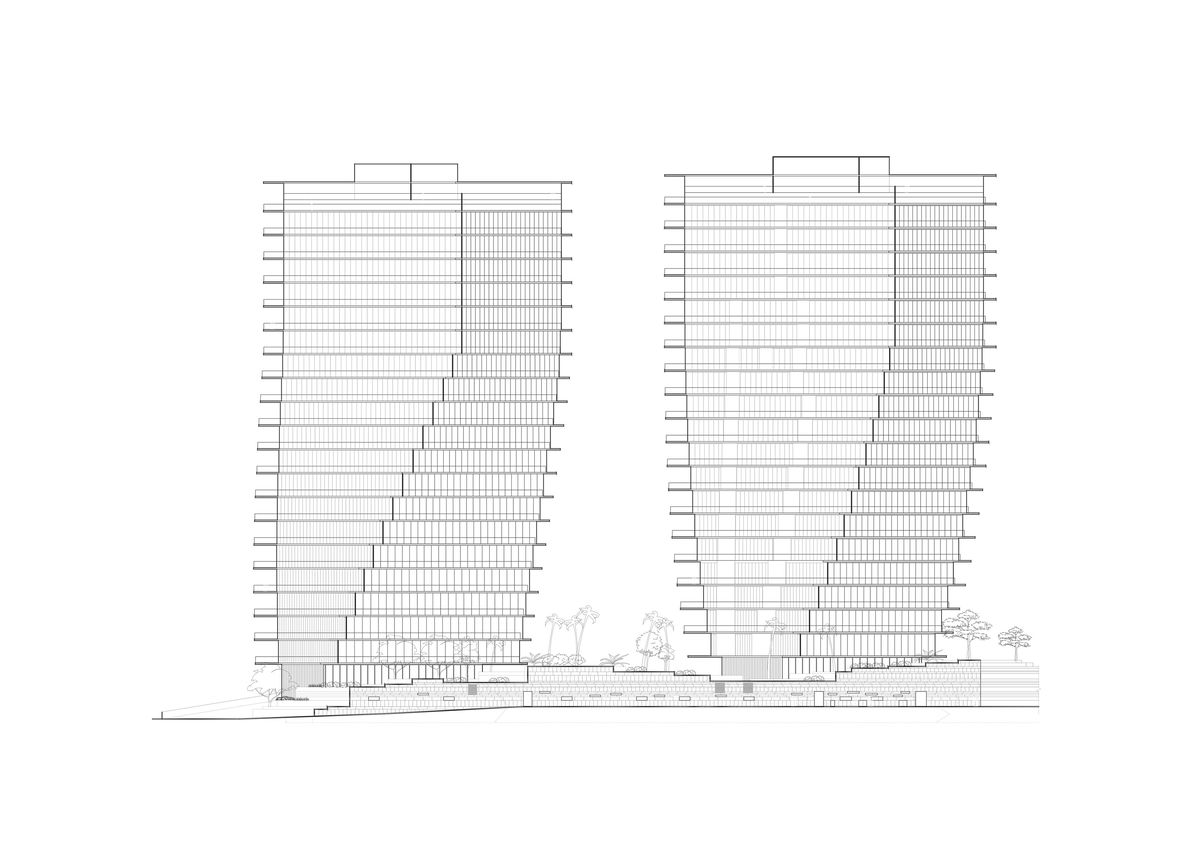

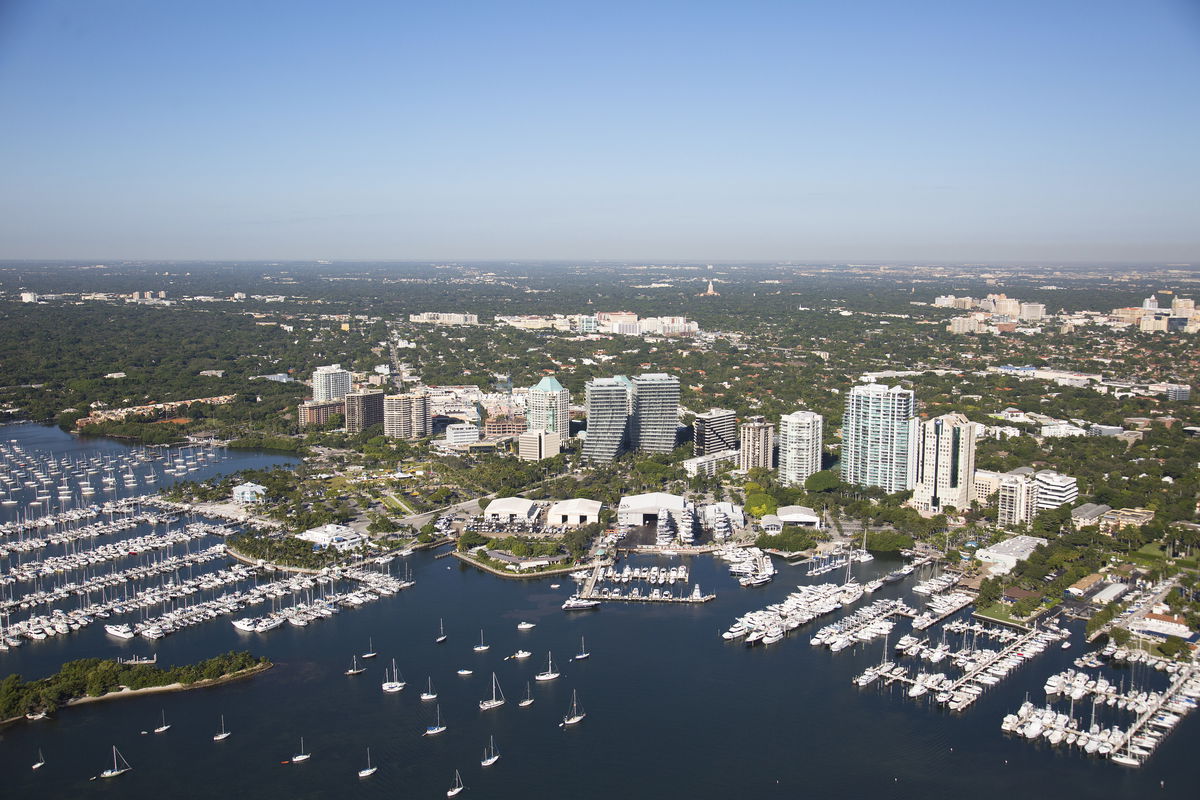

The buildings, which together contain 98 units, were the first residential towers to be constructed in Miami’s Coconut Grove neighborhood in over a decade. Both structures twist at a 38-degree angle, optimizing views, outdoor spaces and the flexibility of the floor plans while allowing the buildings to interact with one another.
FRONT & BACK

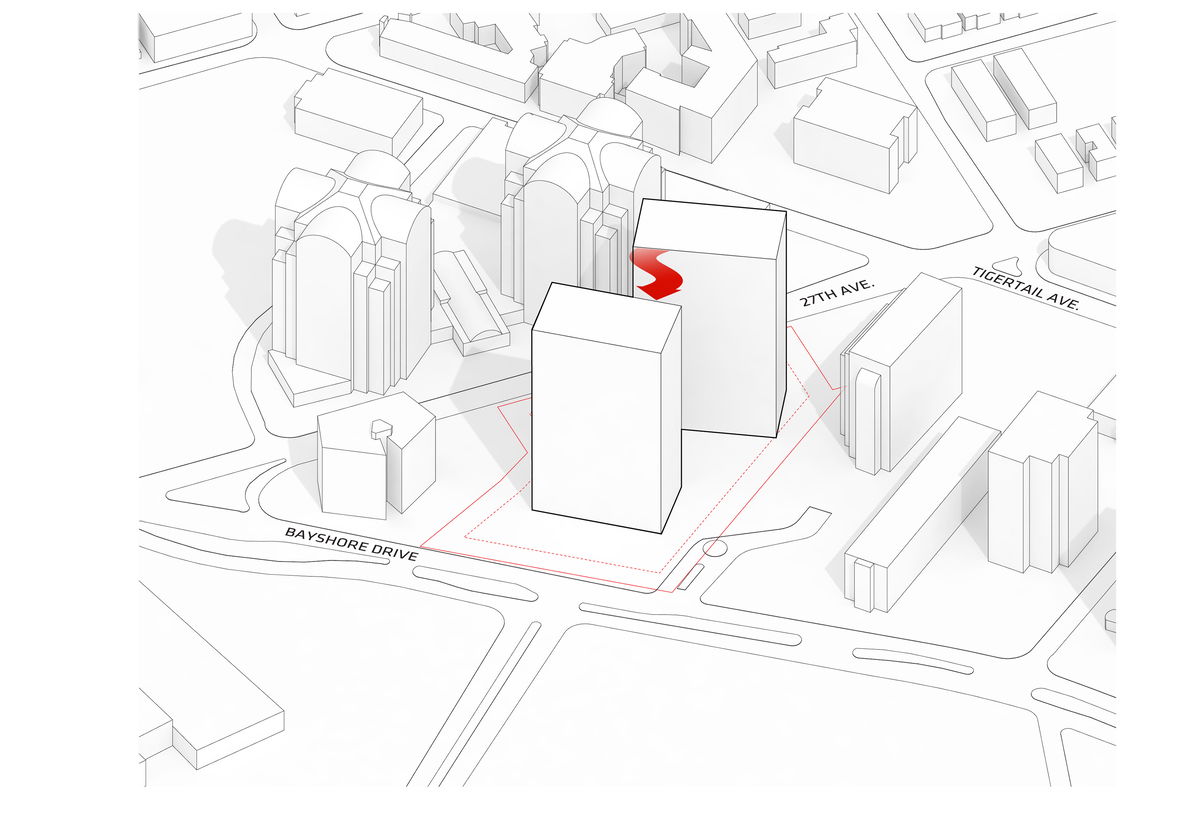

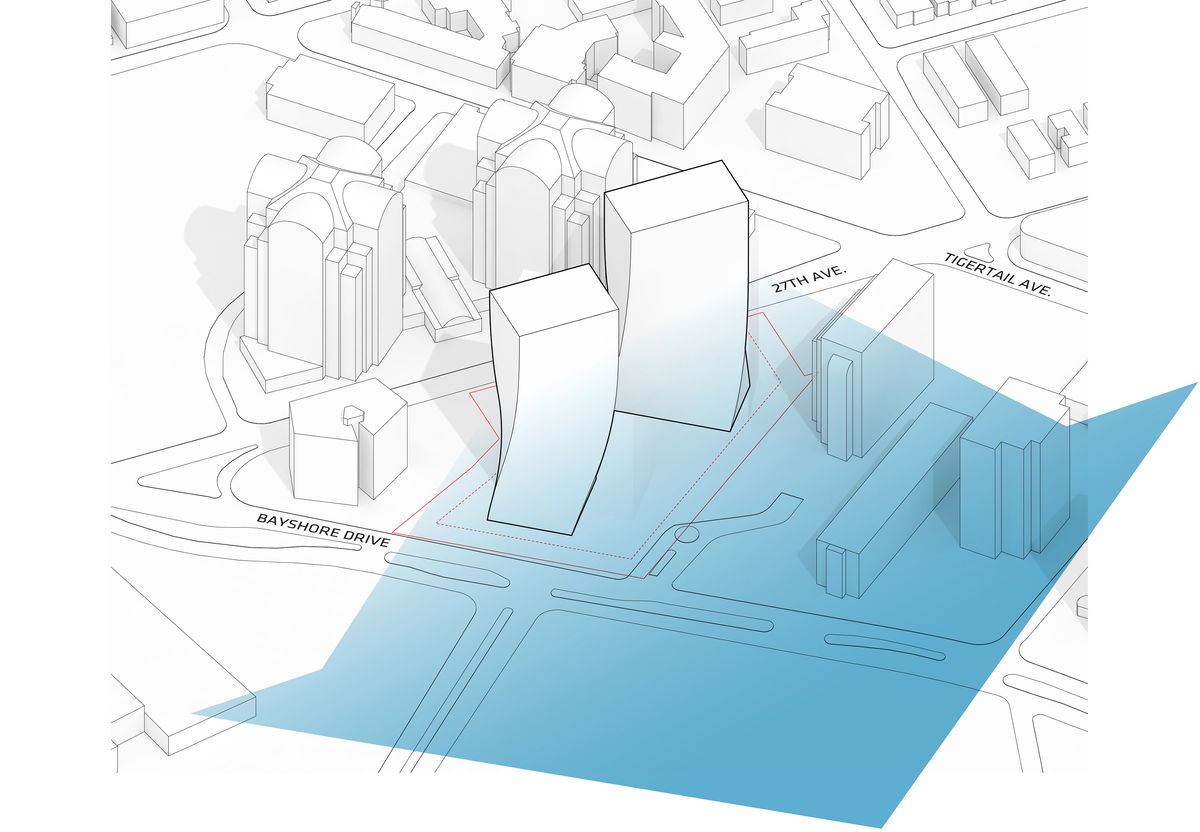

— The program could fit two towers. With the site wedged between mid-rise buildings, the only way to ensure good views of the water would be to build perpendicularly to Bayshore Drive, creating a front and a back building - a good one and a bad one.
COMPACT FOOTPRINT

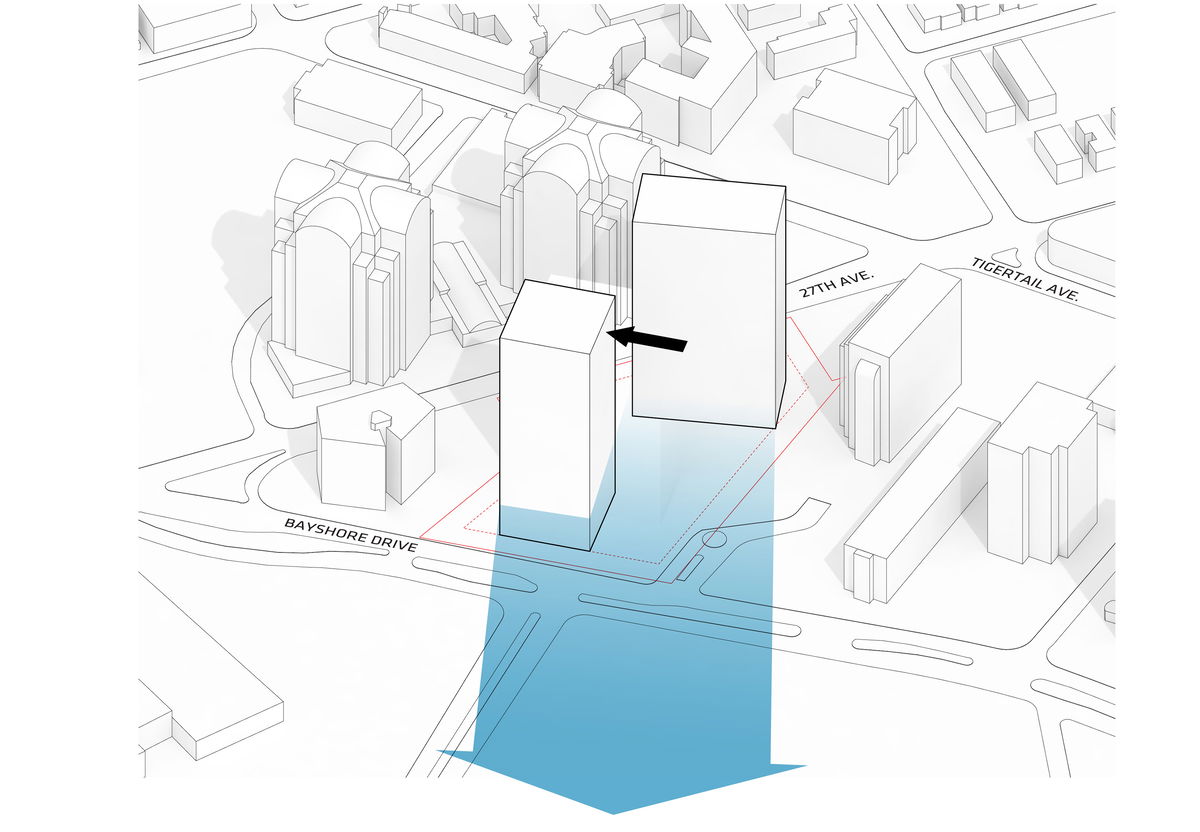

— BIG responded by compacting the footprint of the south tower, to ensure the north tower is offered views straight out to the water.

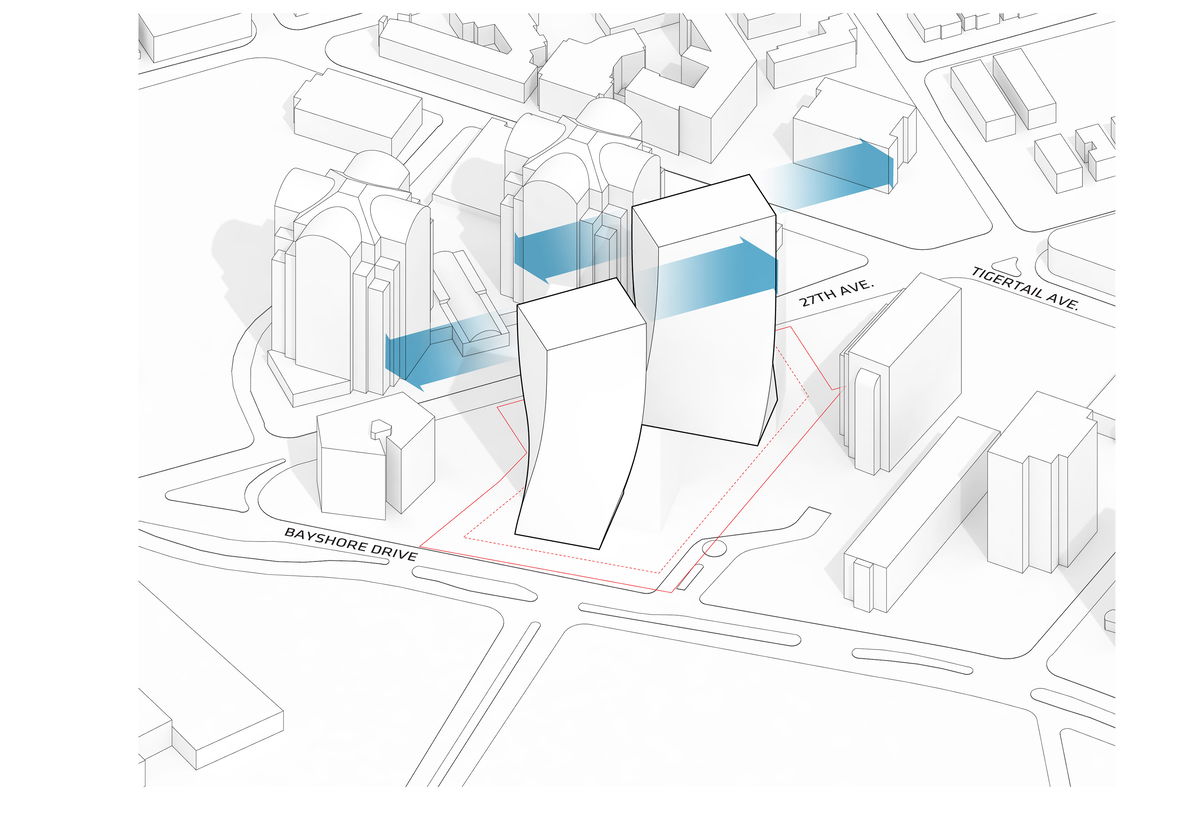

ADDITIONAL VIEWS

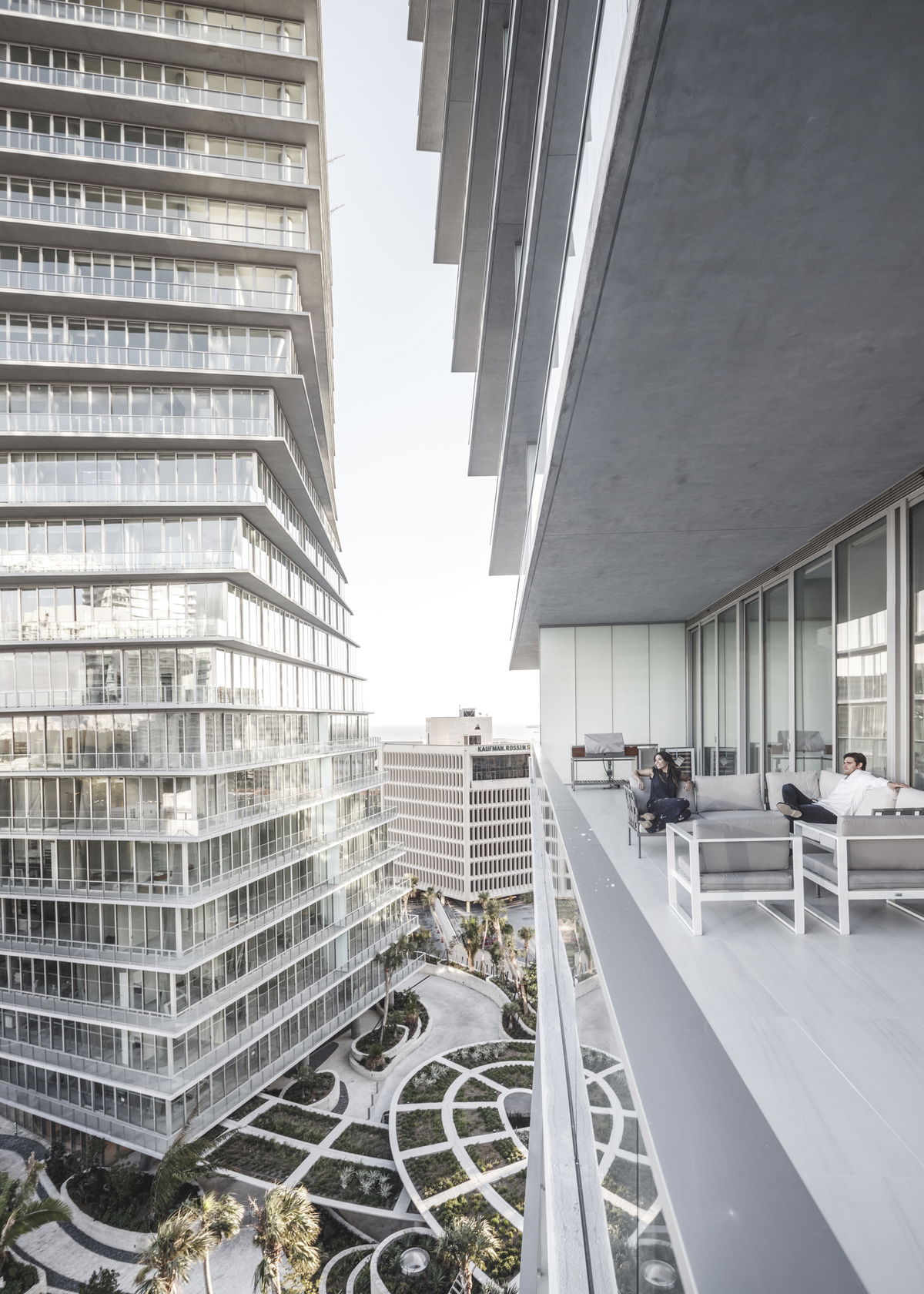

— From the view of the marina below to the massive panorama of the bay and the skyline of downtown Miami beyond.

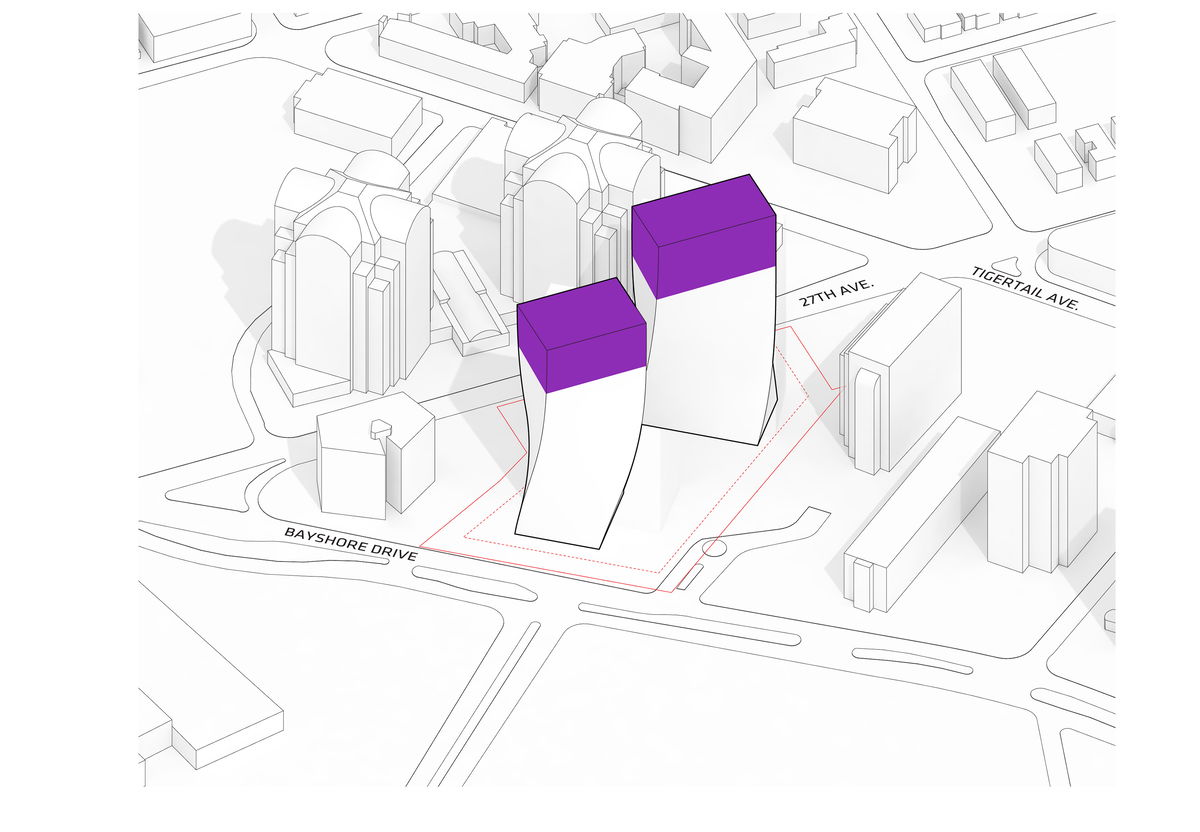

TOP OPTIMIZATION
— From the 14th floor up, the towers continue straight in their new-found optimal orientation. Each tower, just as privileged as the other.

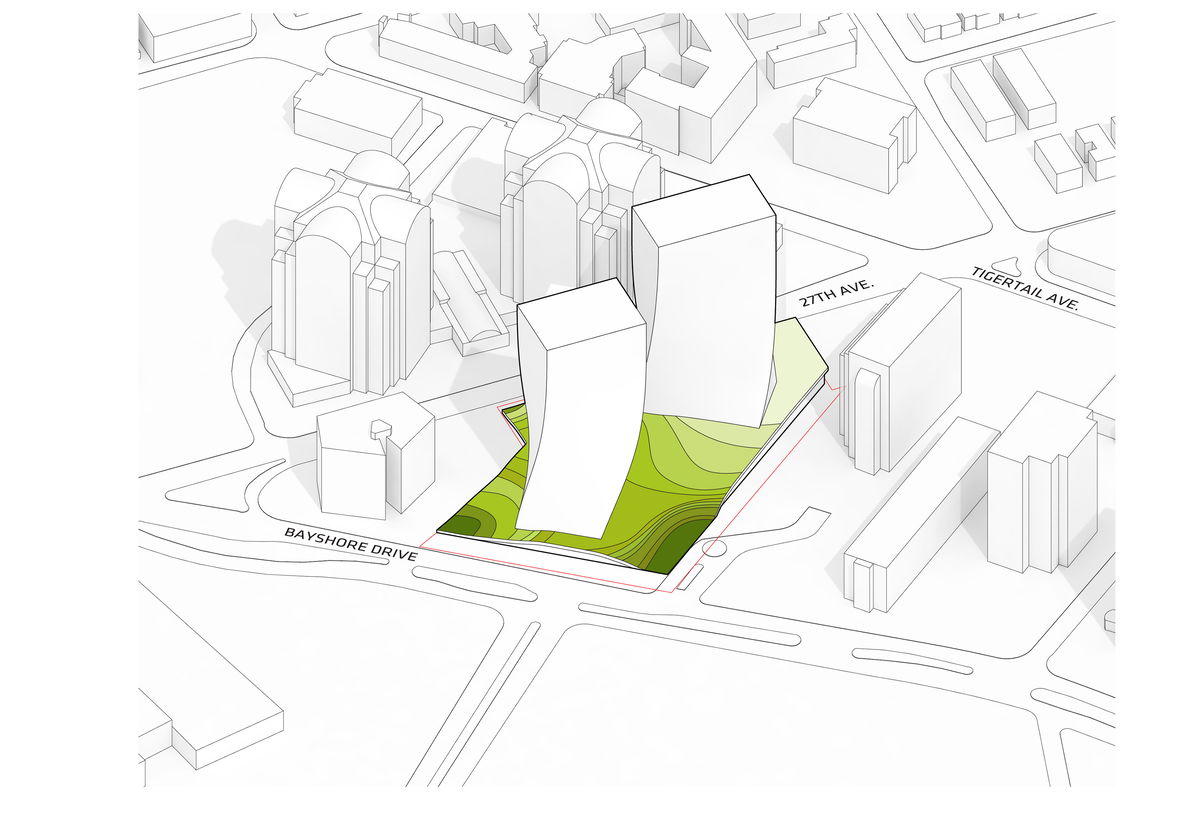

CARPET OF LUSH VEGETATION
— Rather than the traditional podium, BIG proposed a topographic stepped landscape of local stone, covered with indigenous plants.
SIDE BY SIDE
— The view corridors open up when reaching the 12th floor. Suddenly the narrow view corridor became an open panorama.

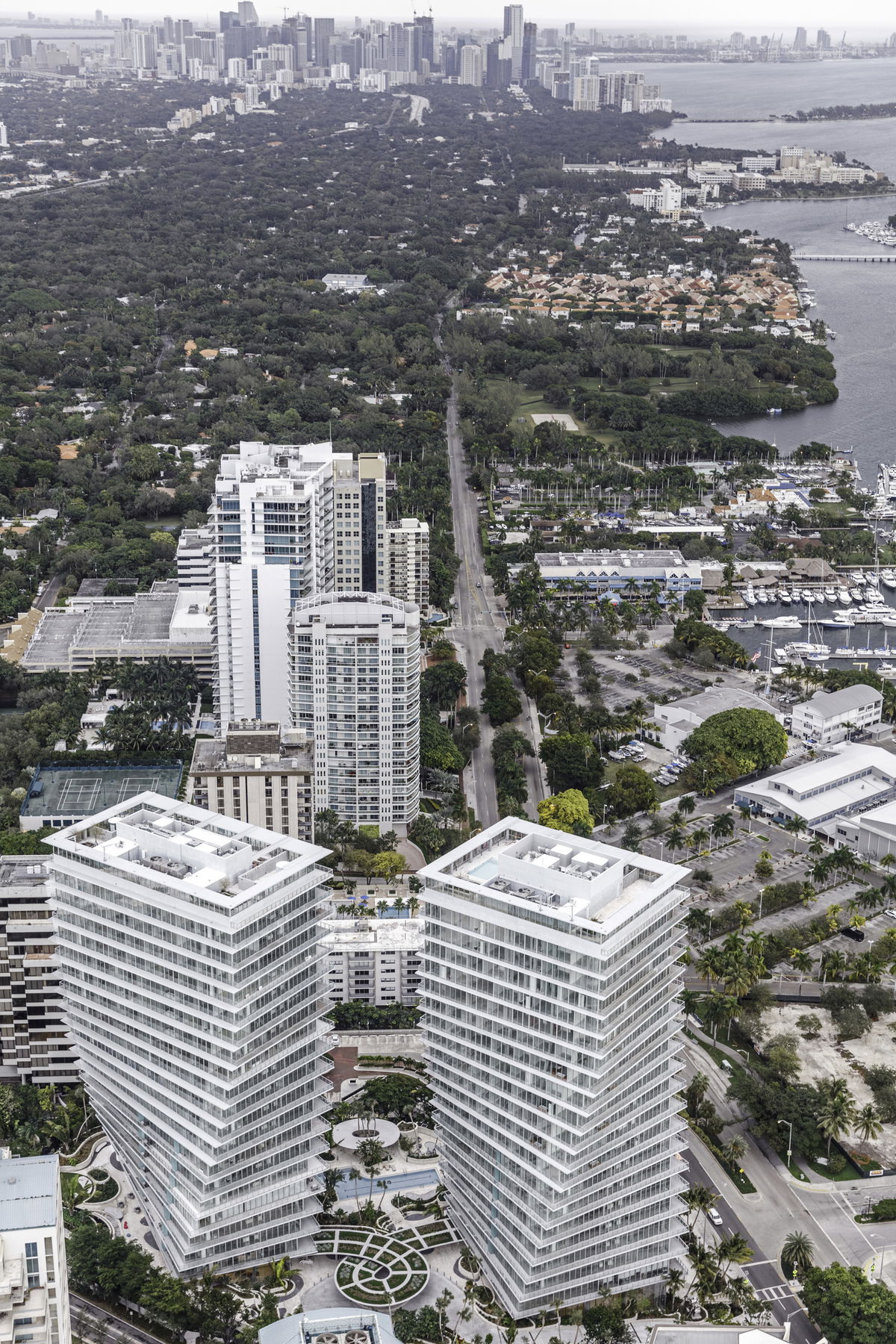

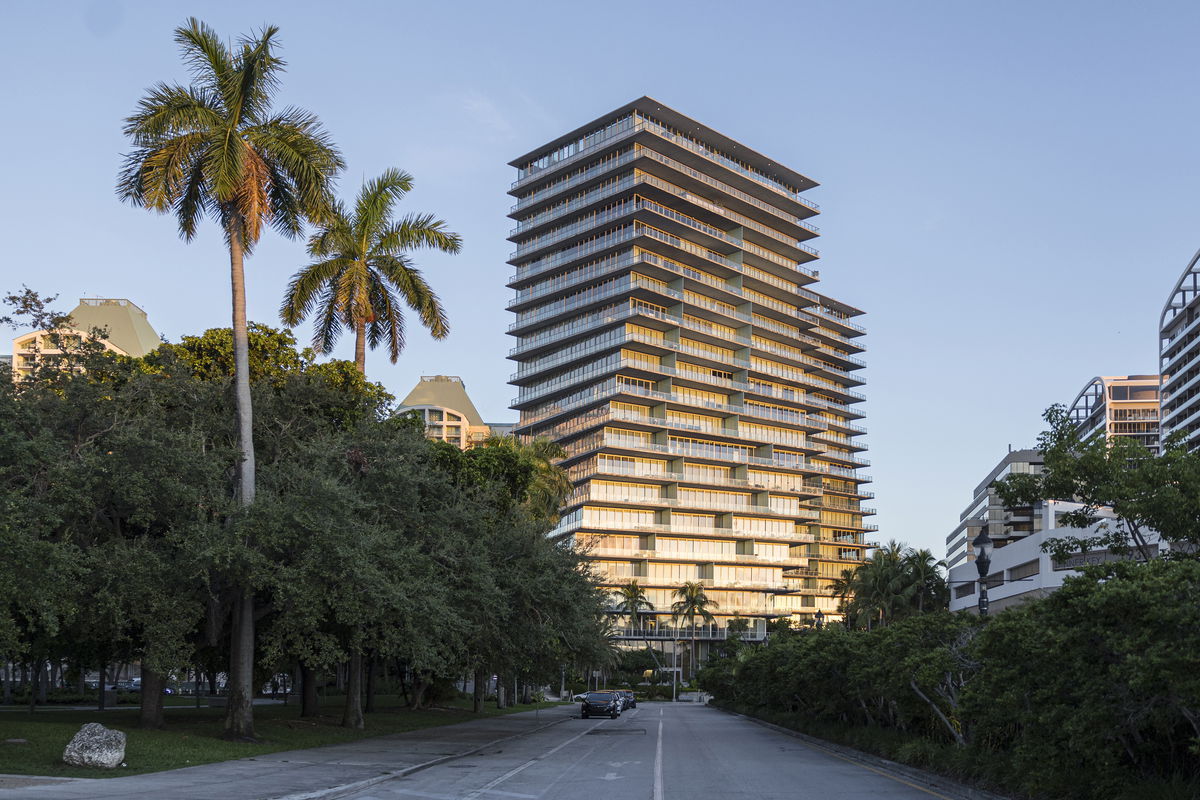

BIG’s brief was to revitalize the Grove as a subtropical urban oasis in the midst of tight building regulations, which dictated an array of various site setbacks. Rising 20 stories, the two towers of The Grove at Grand Bay respond to the surroundings and to each other to give optimum views at every level.

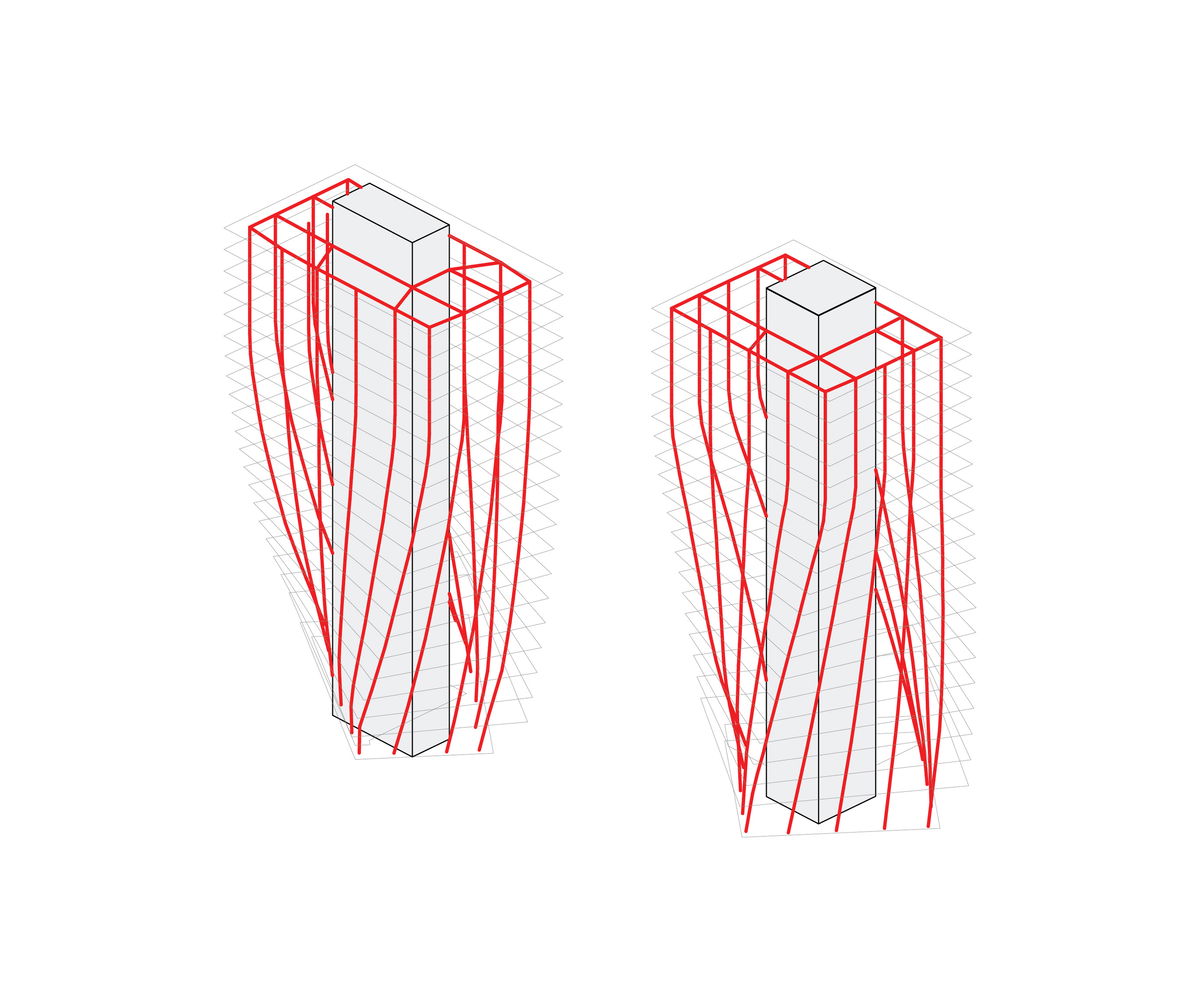

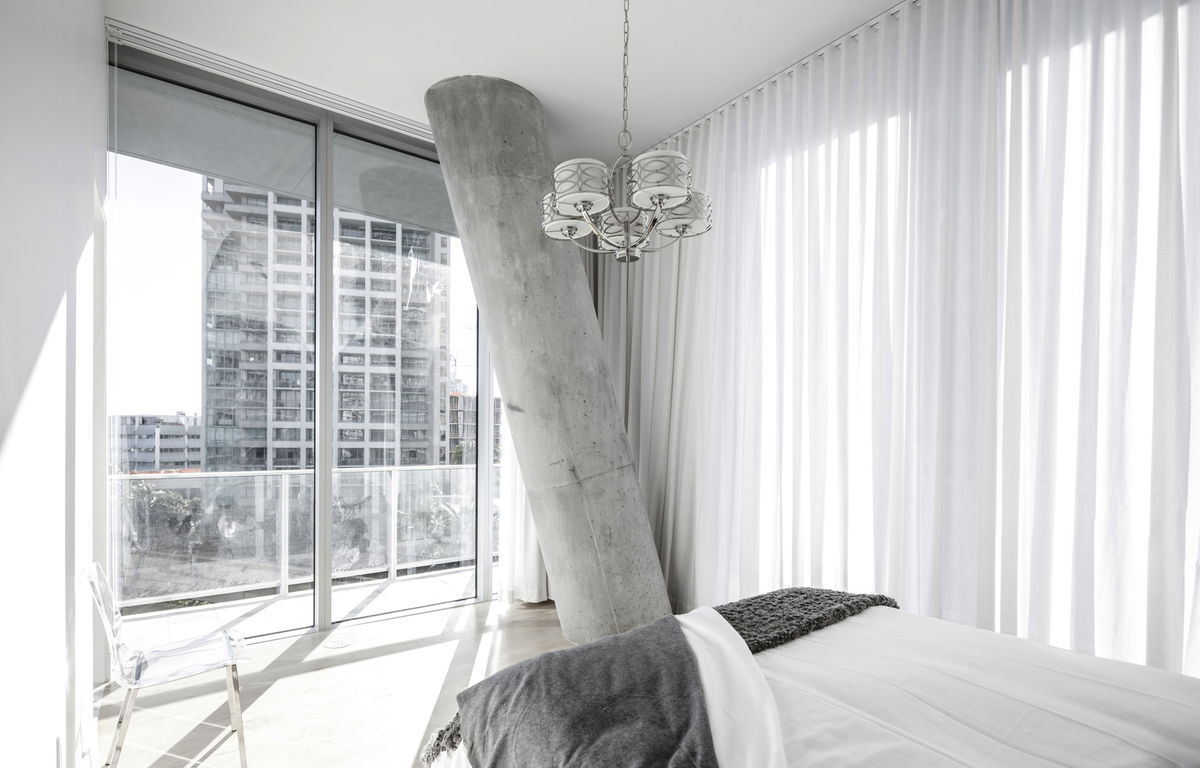

The elevator cores are strengthened with two-inch steel plates, to absorb all the torsion forces. The cores are adjusted to align with the upper floors and continue straight through all levels, seeming to turn as the floor plates rotate around them. The columns carry all the gravity loads, but none of the shear loads.

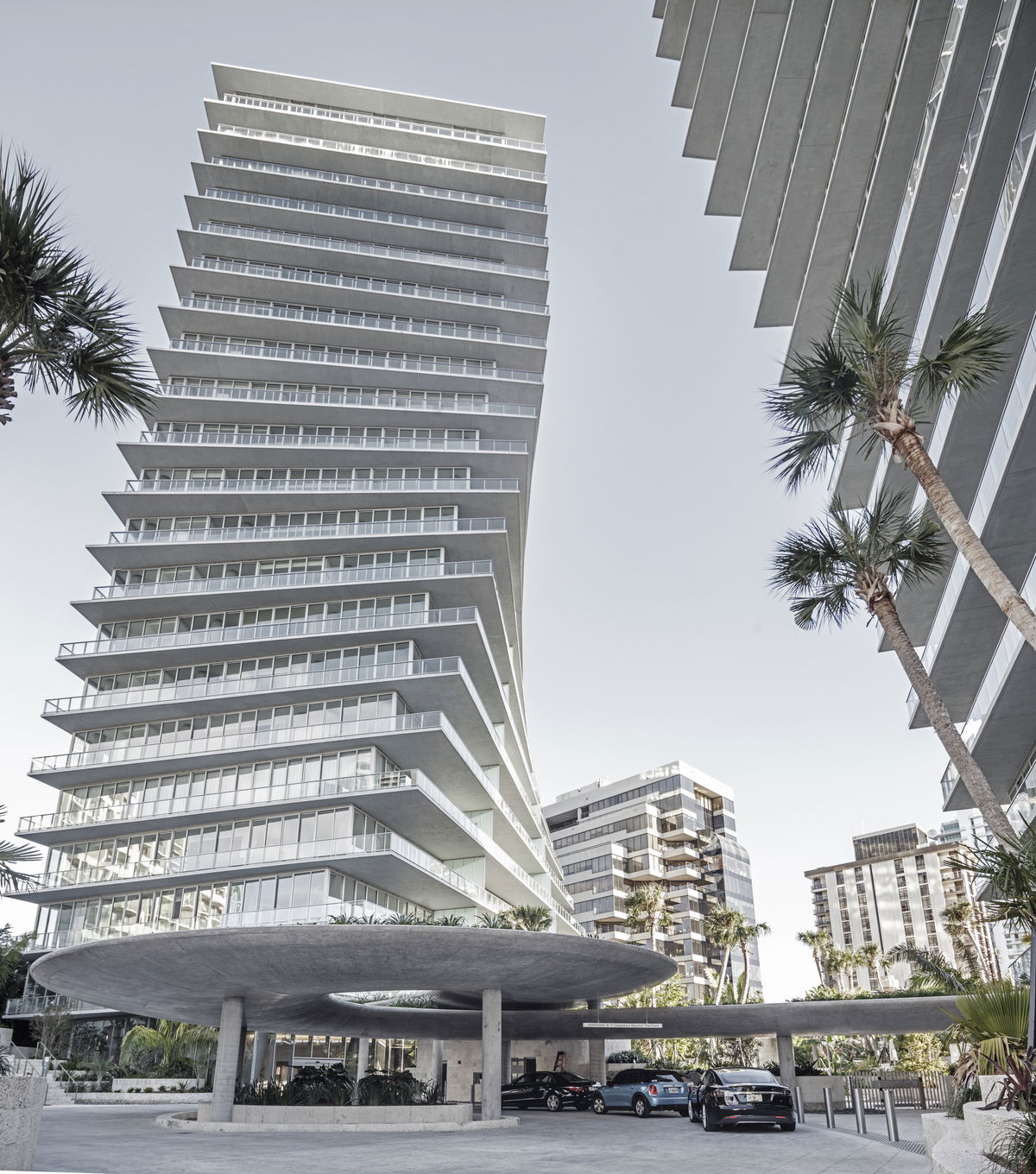

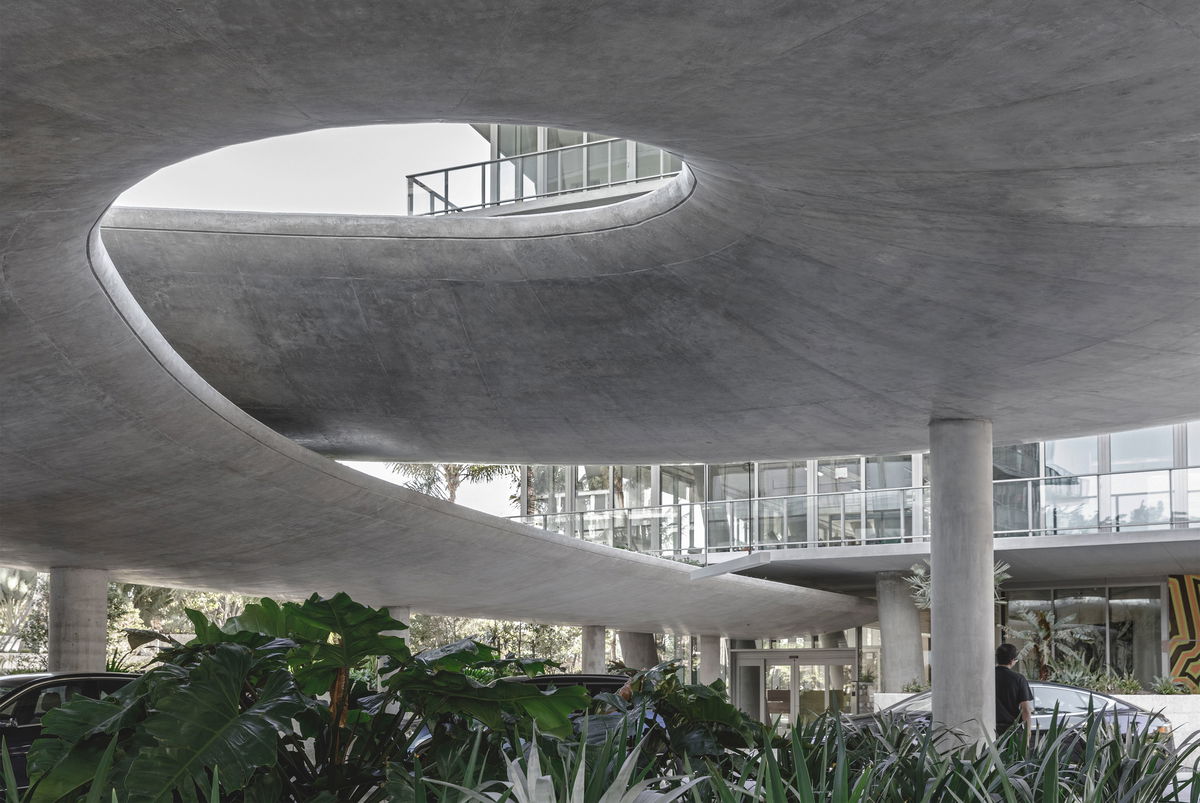

A single ribbon of concrete loops above the drop-off zone, providing cover for the residents. Plants, stones, and woods are all based on native species and local geology.
COCO2_0000_R_Hjortshoj - Coconut-37_dp.jpg

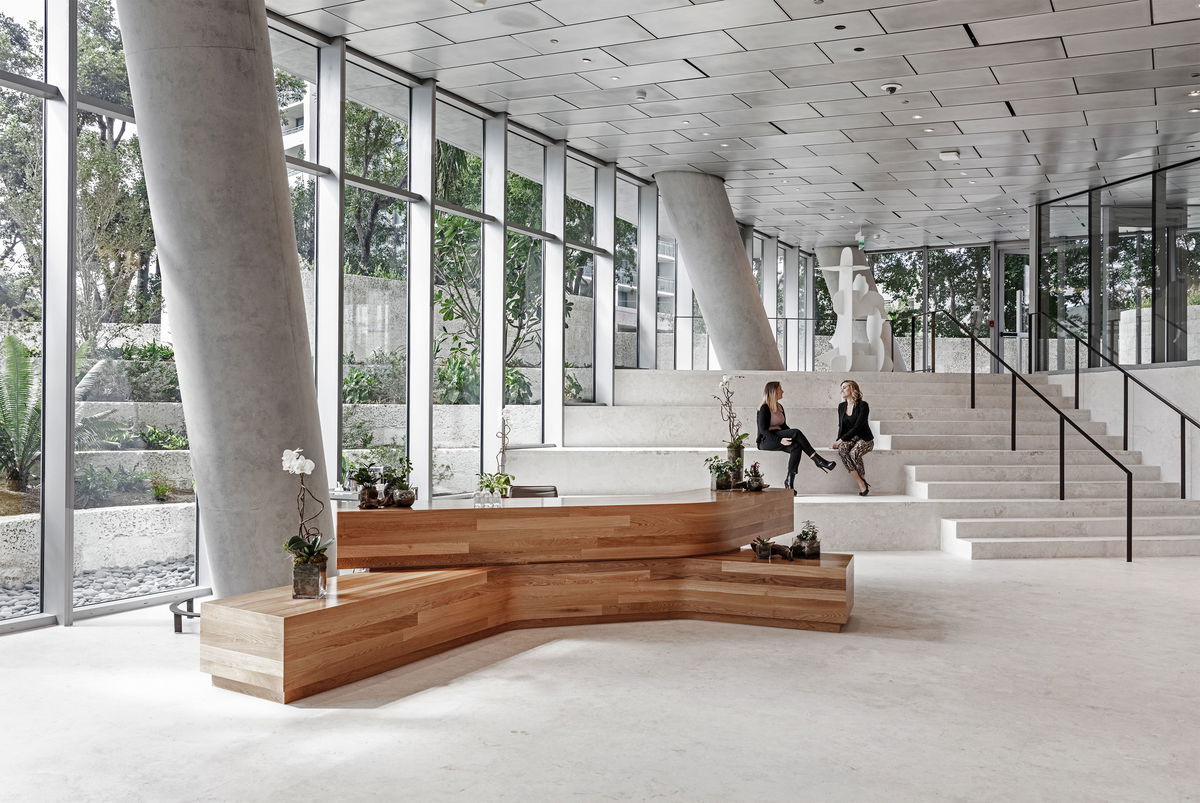

COCO2_0001_R_Hjortshoj - Coconut-89_dp.jpg
"Coconut Grove is a special place with a well-defined soul, so it was important that the Grove at Grand Bay responds to its community through a design that was respectful and distinctive."
Working with the local landscape architect Raymond Jungles, the building has a canopy of foliage, featuring more than 15,000 plants, 500 trees and several water features for the life happening between the buildings.

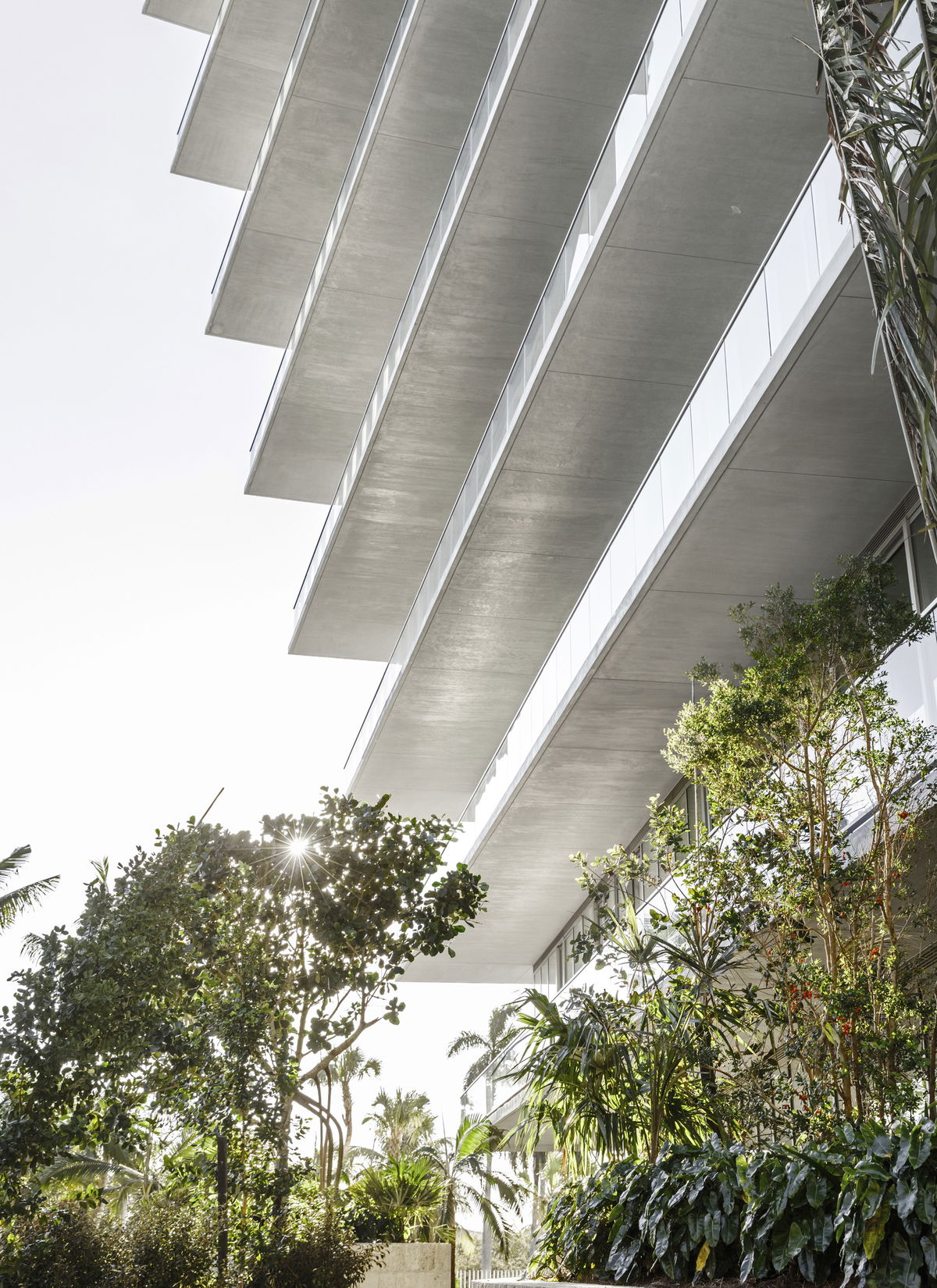

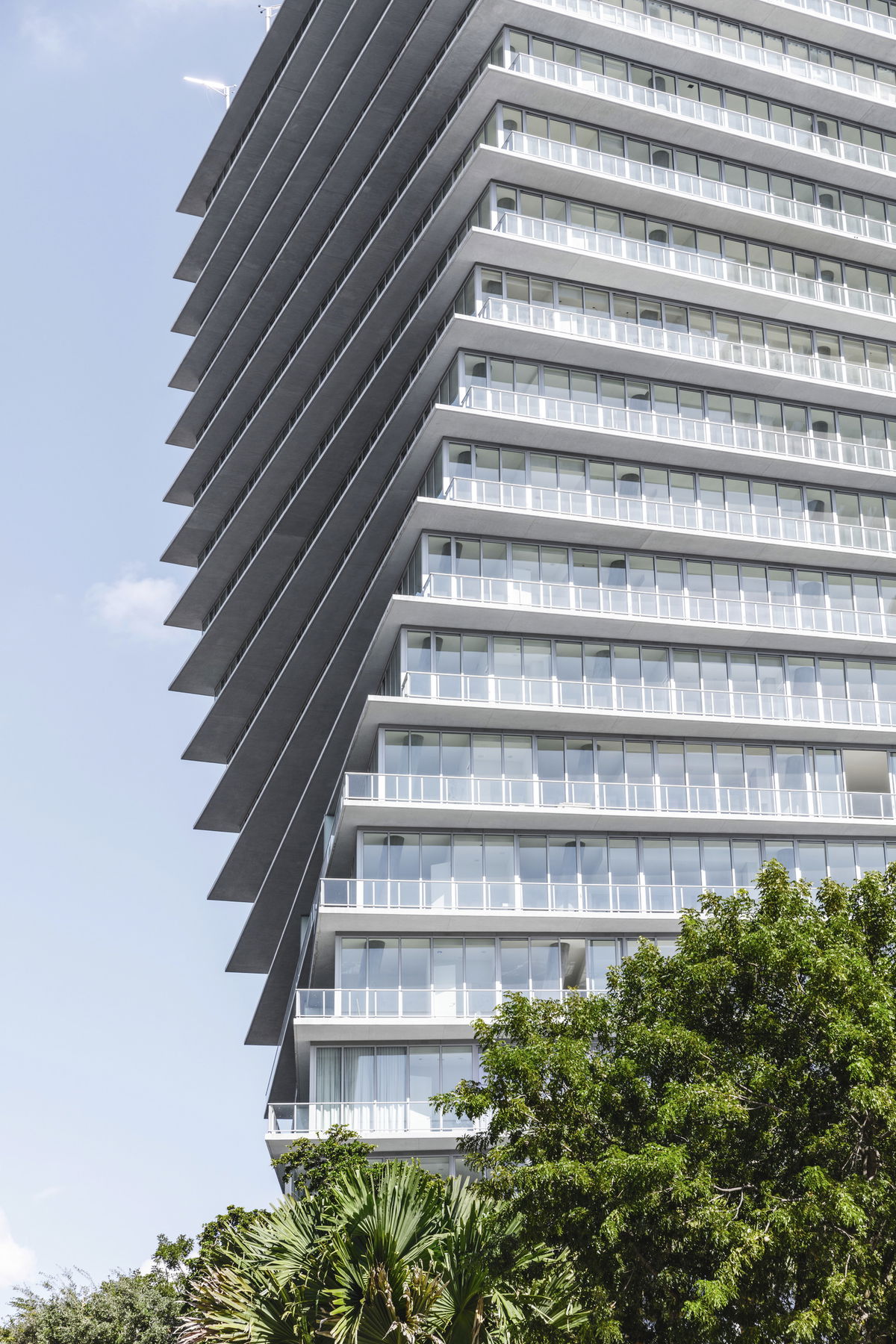

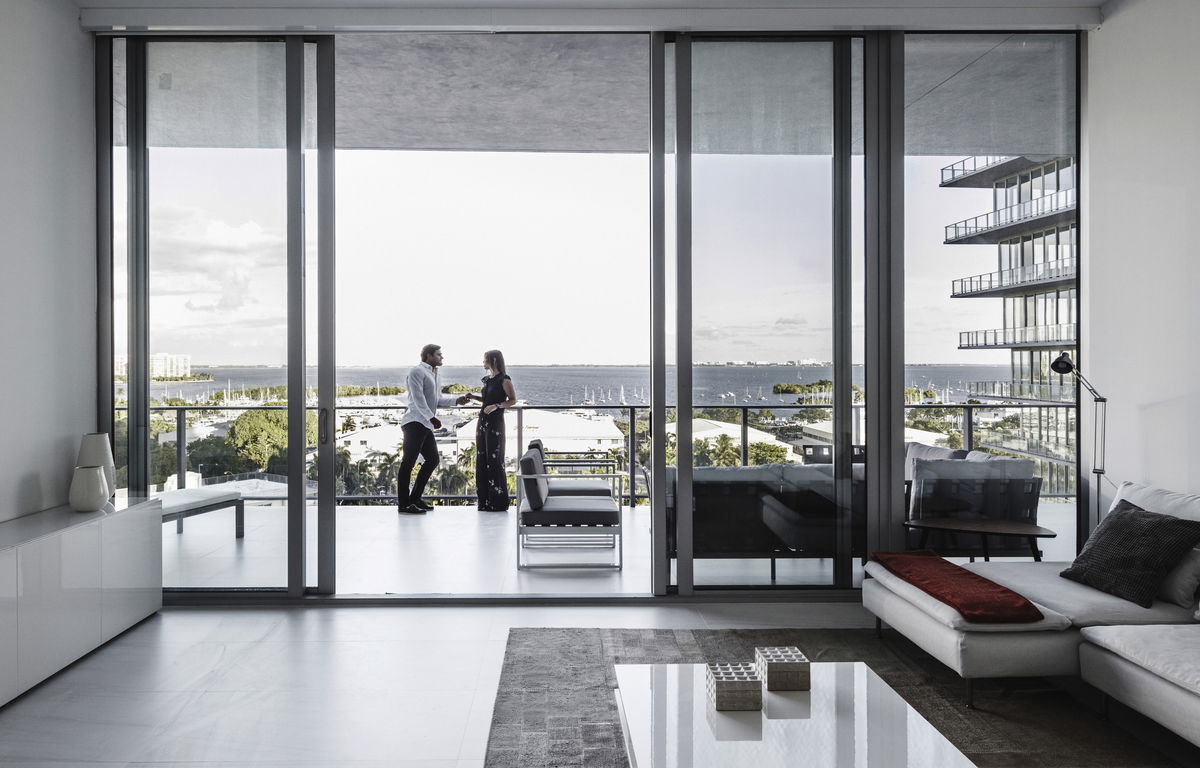

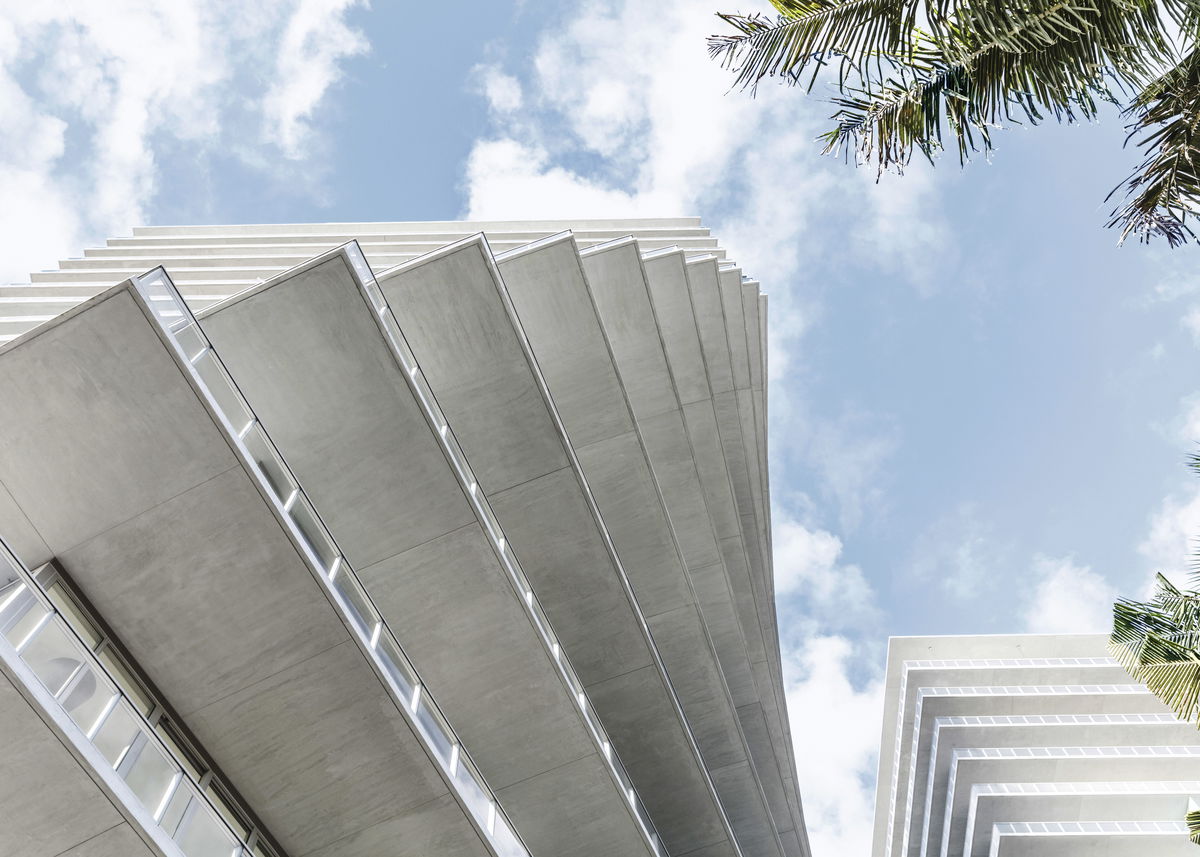

The generous cantilevered balconies create ample outdoor spaces, while providing the necessary shade from the Florida sun. Glass facades, with sliding doors, maximize the water views while respecting the requirements of hurricane protection.

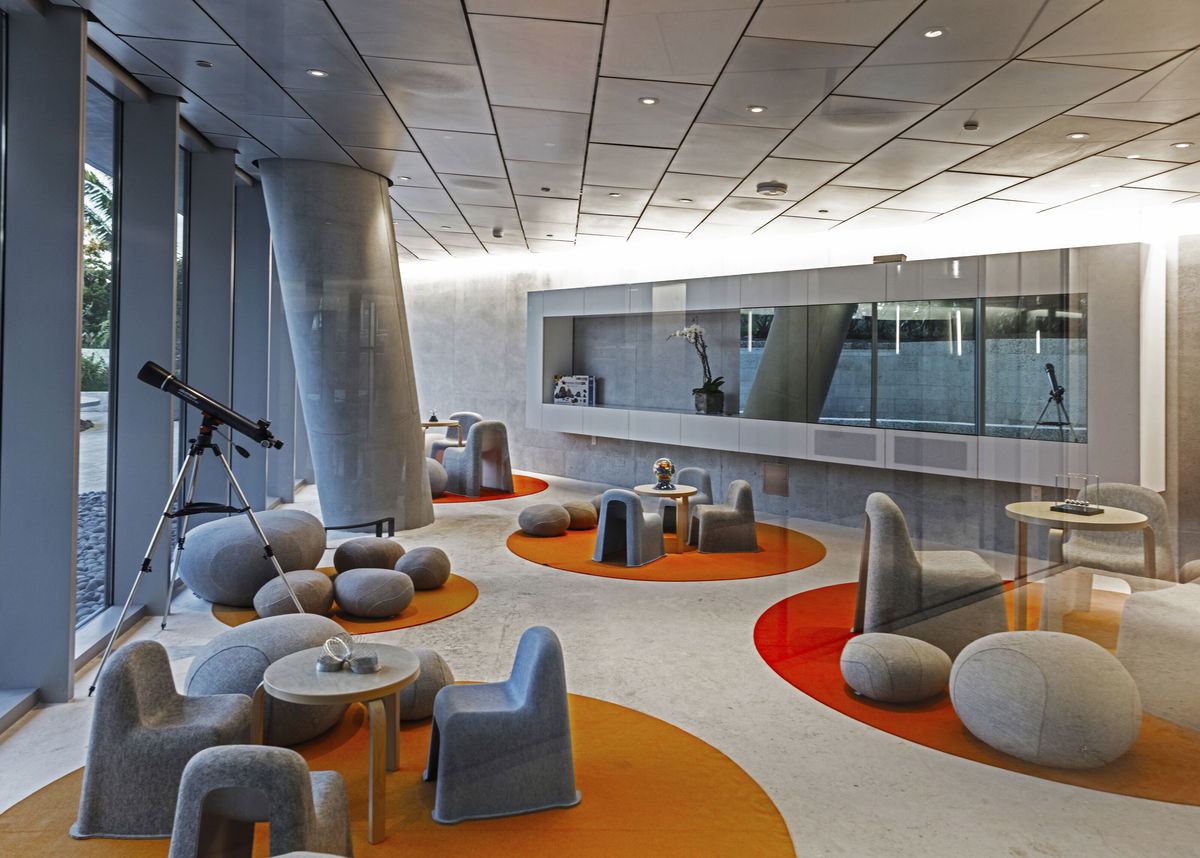

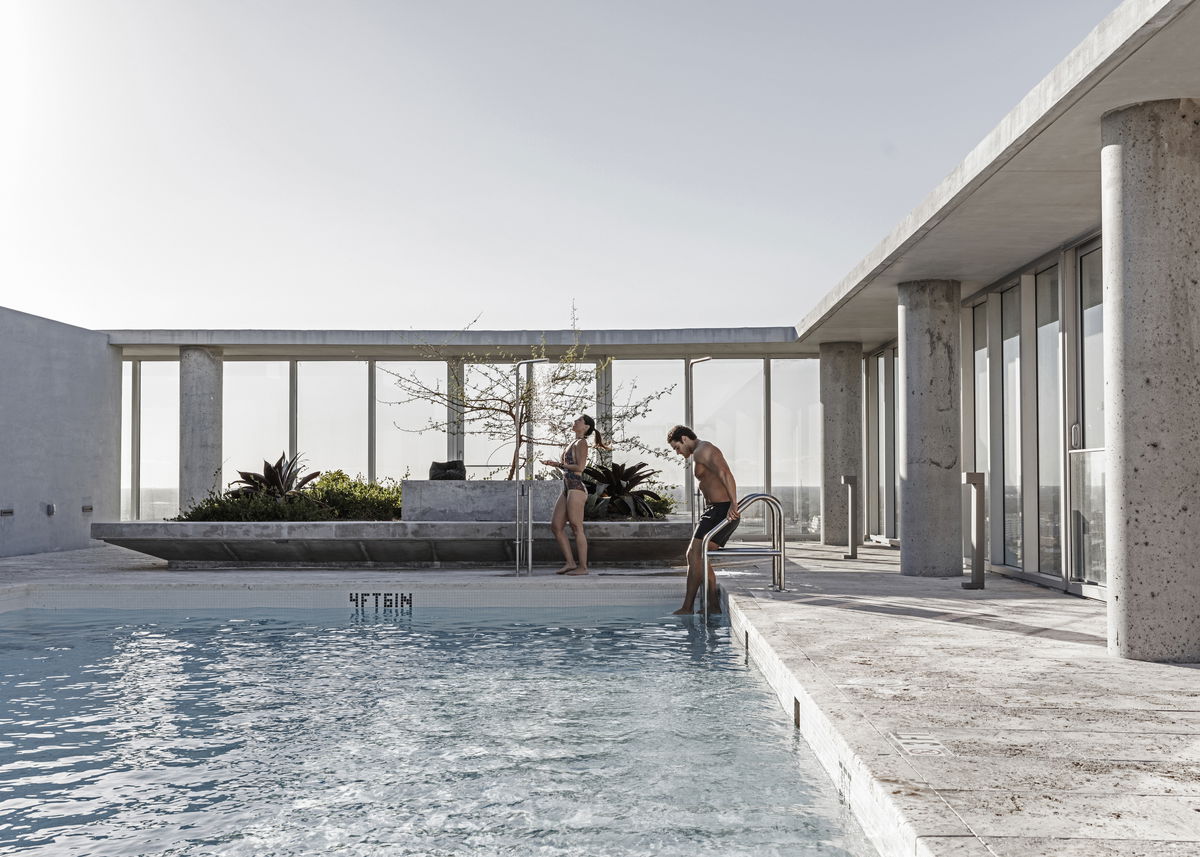

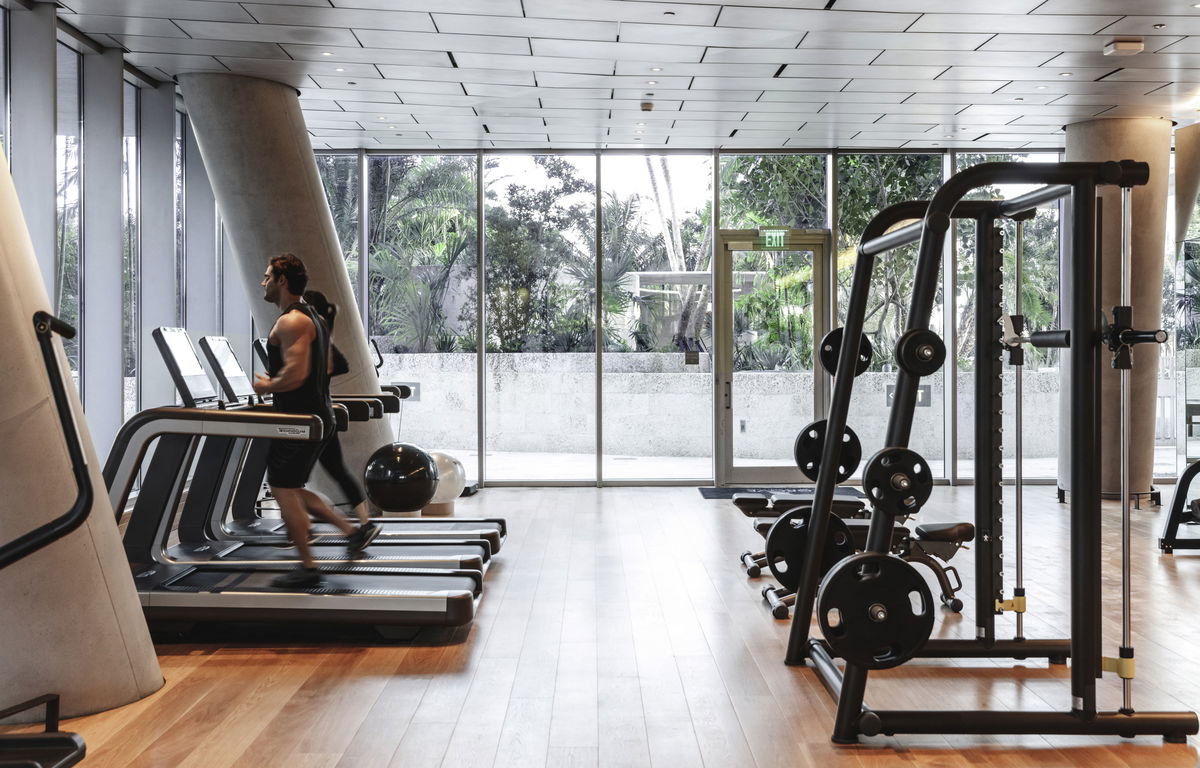

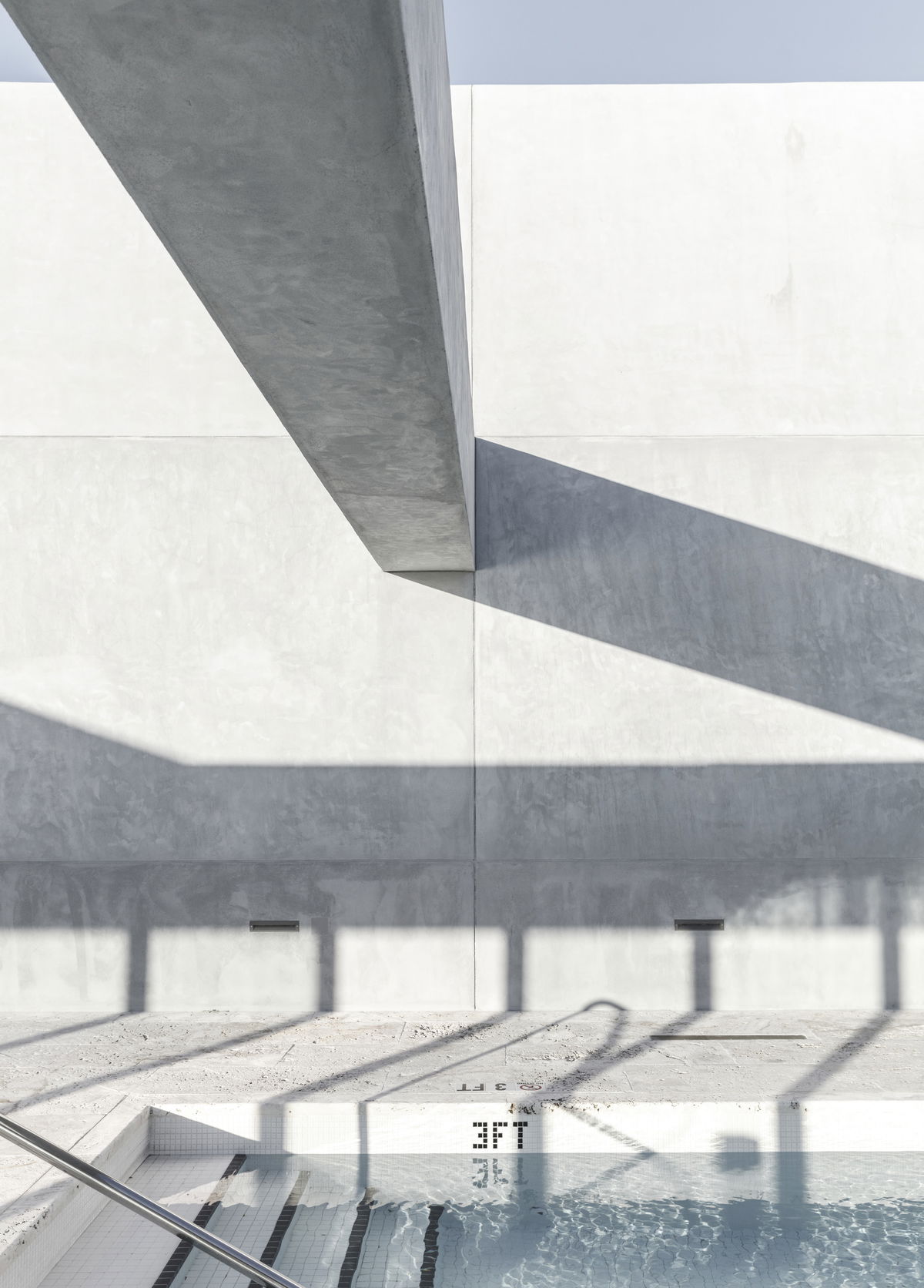

Amenities include a swimming pool, spa, fitness centre, pet spa, and private dining room for residents. A kids playroom is fitted with whimsical decor, including seating shaped like giant pebbles.
19_12000_N1920_webproject
19_12000_N1939_webproject

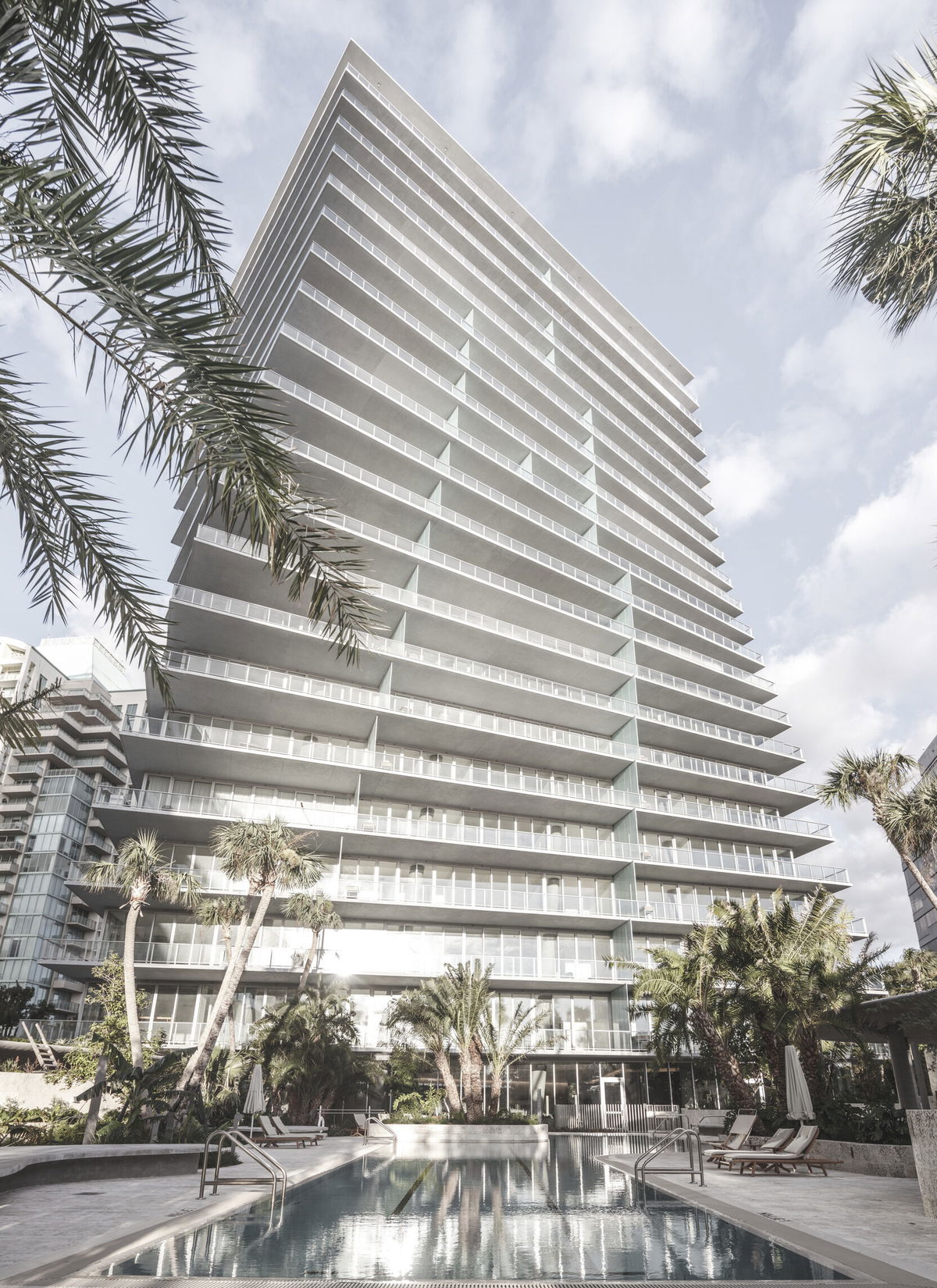

19_12000_N2028_webproject
19_12000_N1928_webproject
Bjarke Ingels Thomas Christoffersen Daniel Sundlin Beat Schenk Martin Voelkle Leon Rost Catherine Huang Alana Goldweit Haochen Yu Terrence Chew Ziad Shehab Ji-Young Yoon Aaron Hales Bennett Gale Brian Foster Chris Falla Christoffer Gotfredsen Christopher Malcolm Jr. Edward Yung Gaurav Janey Gregory Knobloch Iannis Kandyliaris Jenny Chang Jitendra Jain Jose Jimenez Kasper Reimer Hansen Maureen Rahman Mina Rafiee Rakel Karlsdottir Thomas Jensen Tiago Barros Valerie Lechene Benjamin Caldwell Ho Kyung Lee Taylor McNally-Anderson
AWARDS
Architects Newspaper Best of Design Awards for Building of the Year – Southeast, 2017
Interior Design Best of Year Awards – Multi-Unit Housing, 2017
AIA Miami Design Award, 2017
AIA Florida / Caribbean Merit Award of Excellence for New Work 2017
Architizer A+ Award, Jury + Popular Choice Winner in Architecture + Engineering, 2017
AZ Award Finalist for Residential Architecture, Multi Unit. 2017
SEAoNY Awards – Engineers Choice Awards 2017
Miami-Dade ASCE Project of the Year Category III Honorable Mention, 2016
CRSI Honors – Honor Award, 2016
ACEC National Engineering Excellence Awards, Platinum Award, 2016
ACEC New York Engineering Excellence Awards, Platinum Award, 2015
NCSEA Excellence in Structural Engineering Award, 2015
Concrete Industry Board Roger H. Corbetta Award for Quality Concrete Merit, 2015
COLLABORATORS
DeSimone
Hufsey Nicolaides Garcia Suarez Engineers
Raymond Jungles
OVI - Office for Visual Interaction
O'Brien Lighting
Aquadynamics Design Group
VSN
Nichols Brosch Wurst Wolfe & Associates<br> Inc.
Esrawe
Luminaire
HNGS
