Danish Maritime Museum

HELSINGØR, DENMARK

2013

CLIENT

Helsingør Municipality | Helsingør Maritime Museum

TYPOLOGY

Culture, Interiors

SIZE M2/FT2

7,600 / 81,806

STATUS

COMPLETED

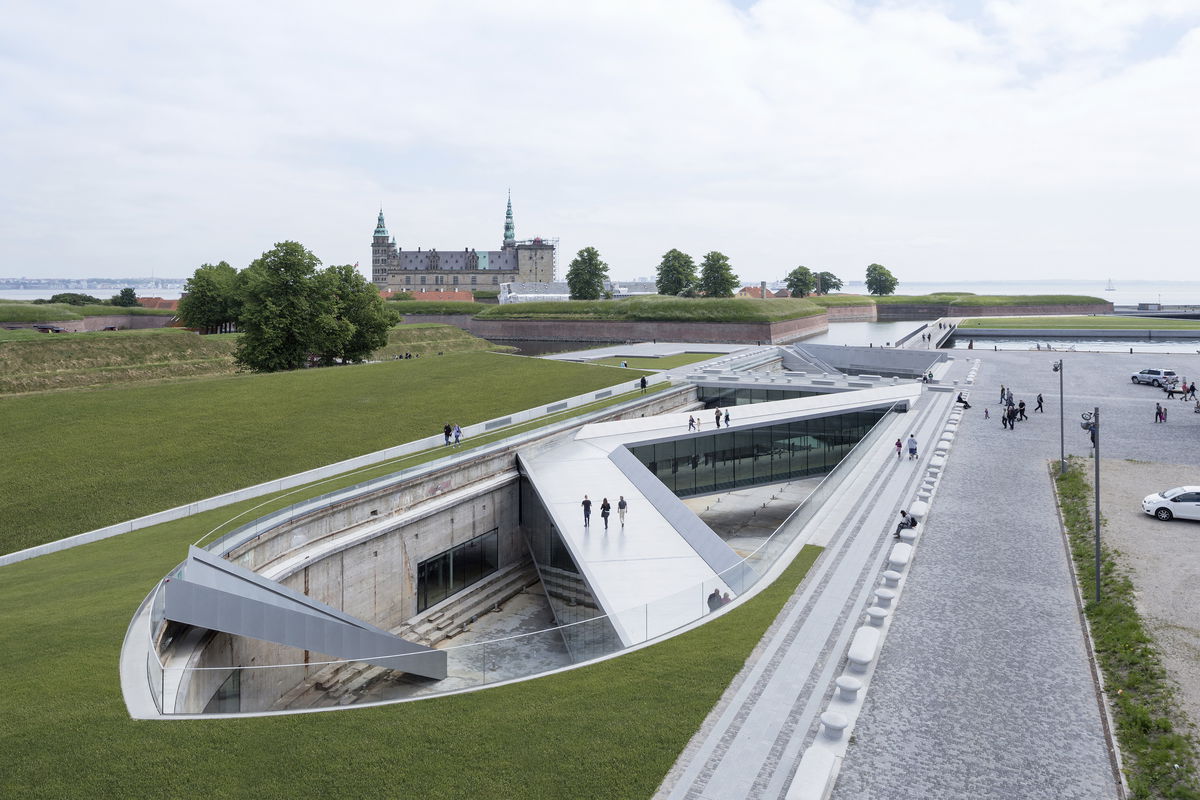

The Danish Maritime Museum is located in a unique historic and spatial context: between one of Denmark’s most important and famous buildings, the Kronborg Castle, and a new, ambitious cultural center – the Culture Yard.

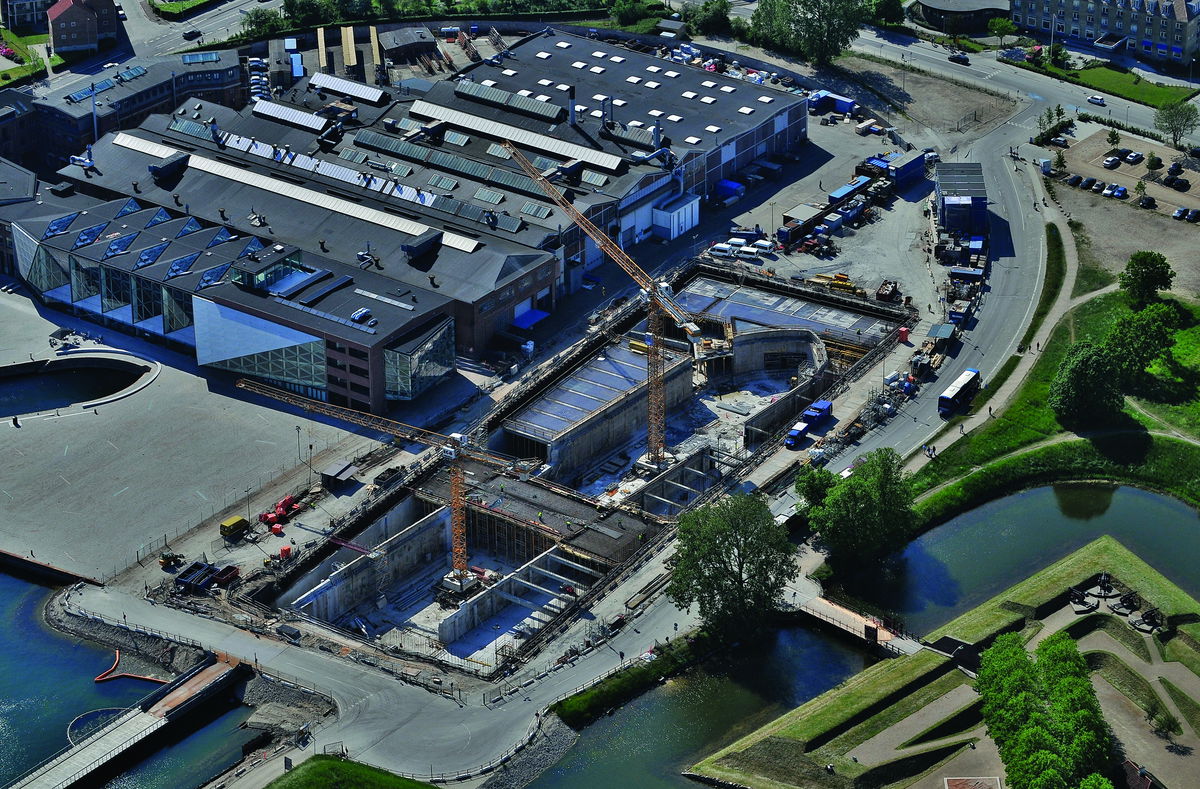

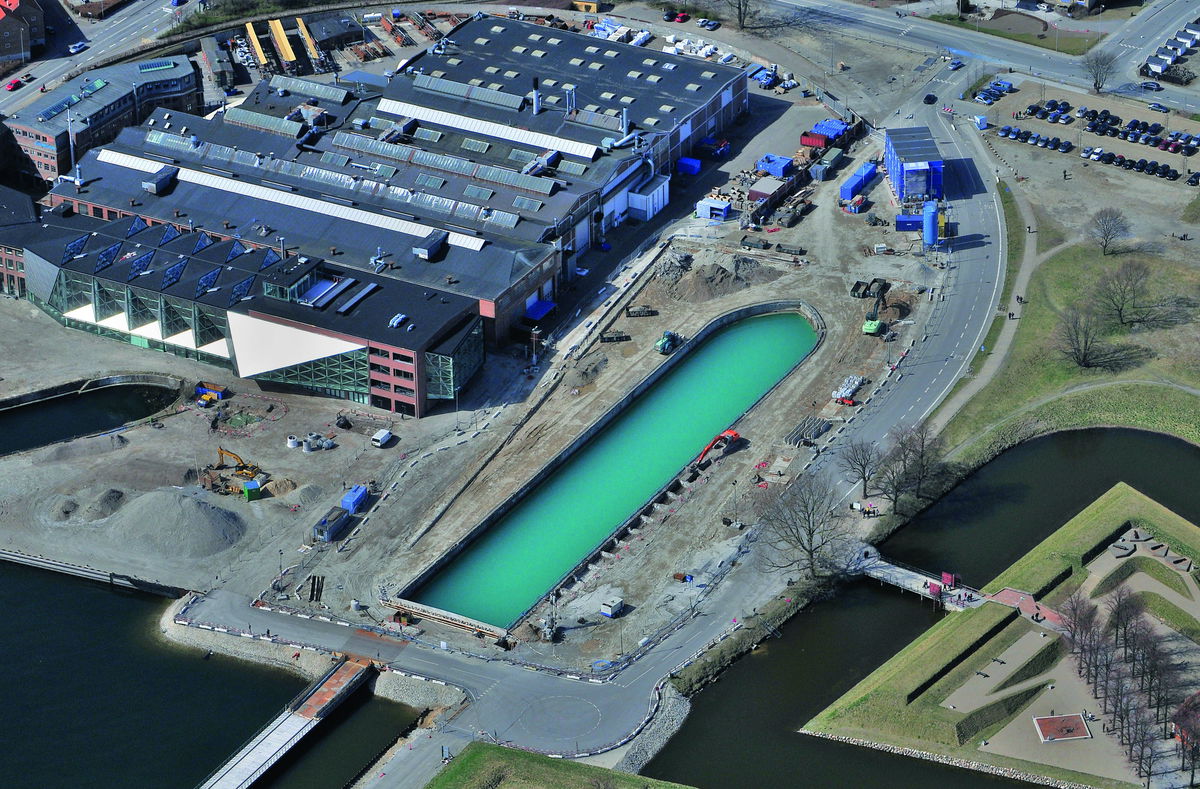

BIG was invited for a competition to design a Maritime museum inside the neighboring decommissioned dry-dock, where ships used to be built. Instead, BIG proposed to place the museum underground, just outside the wall of the dock in order to preserve the dock as an open, outdoor display, maintaining the powerful structure as the center of the Maritime Museum. By placing the museum this way, it appears as a discreet part of the cultural environment associated with the Kronborg Castle and the neighboring Culture Yard, while at the same time manifesting itself as an independent institution.

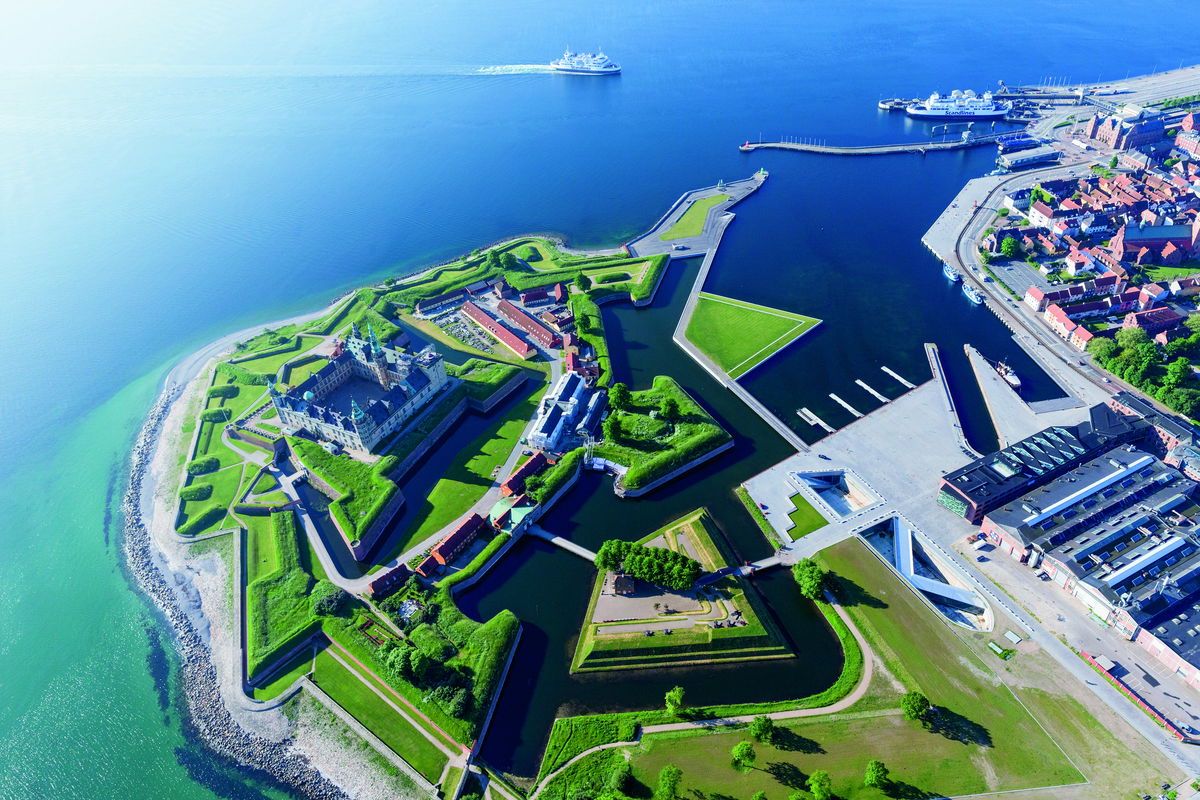

Situated right next to Hamlet’s Kronborg Castle which became a UNESCO World Heritage Site in 2000, the new museum had to stay invisible as to not distract from the castle. At the same time, the museum’s leadership wanted a recognizable institution to attract as many museum visitors as possible.

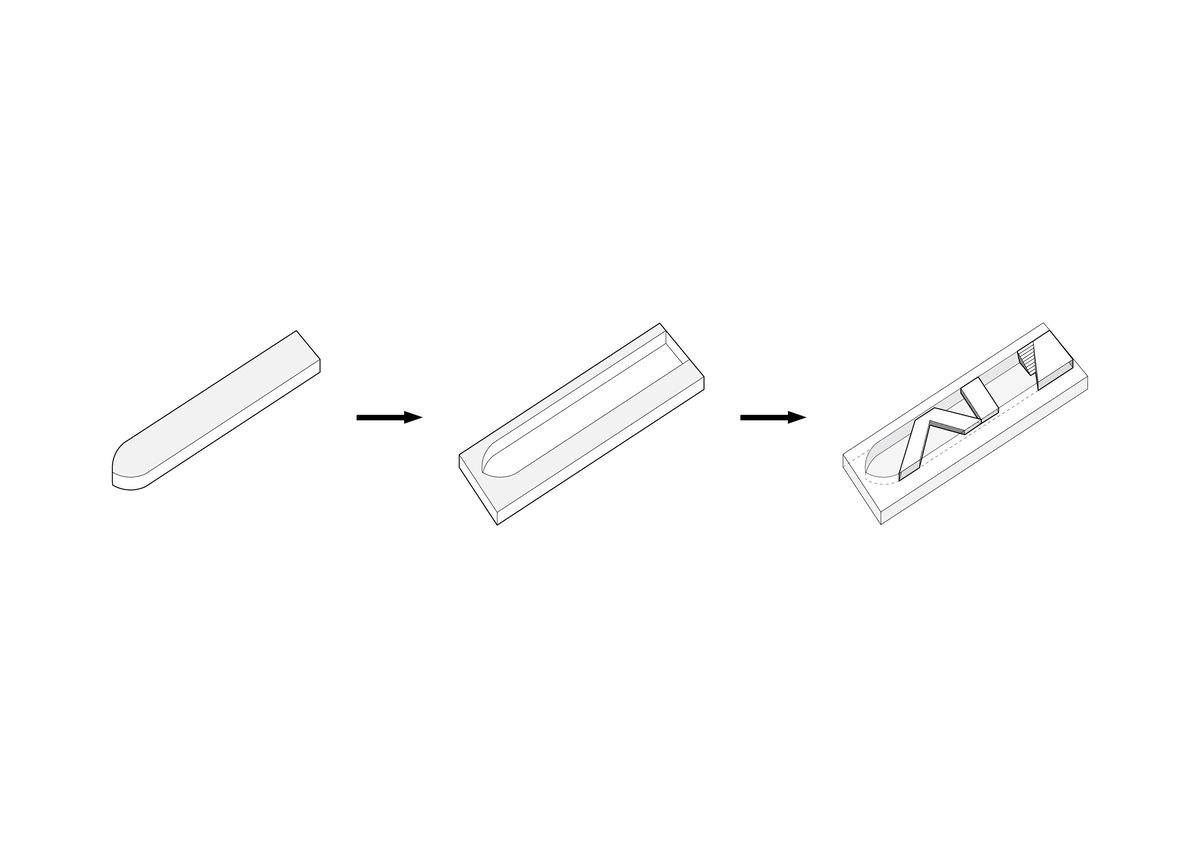

Instead of placing the museum in the dock, BIG proposed to turn the dock inside out and add three bridges.

"When one designs next to one of Denmark’s most important architectural icons, the UNESCO World Heritage Kronborg Castle, it requires an equal dose of respect and sensitivity. At the same time, it is every Museum Director’s dream to have their institution be recognized as its own architectural icon. Our challenge was to do both at the same time."

David Zahle — Partner, BIG

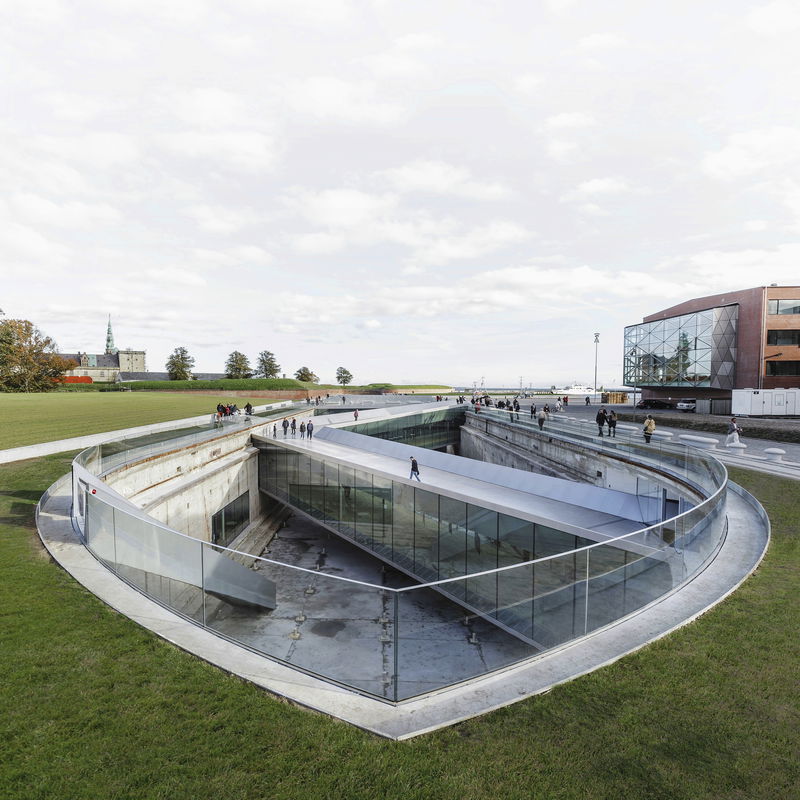

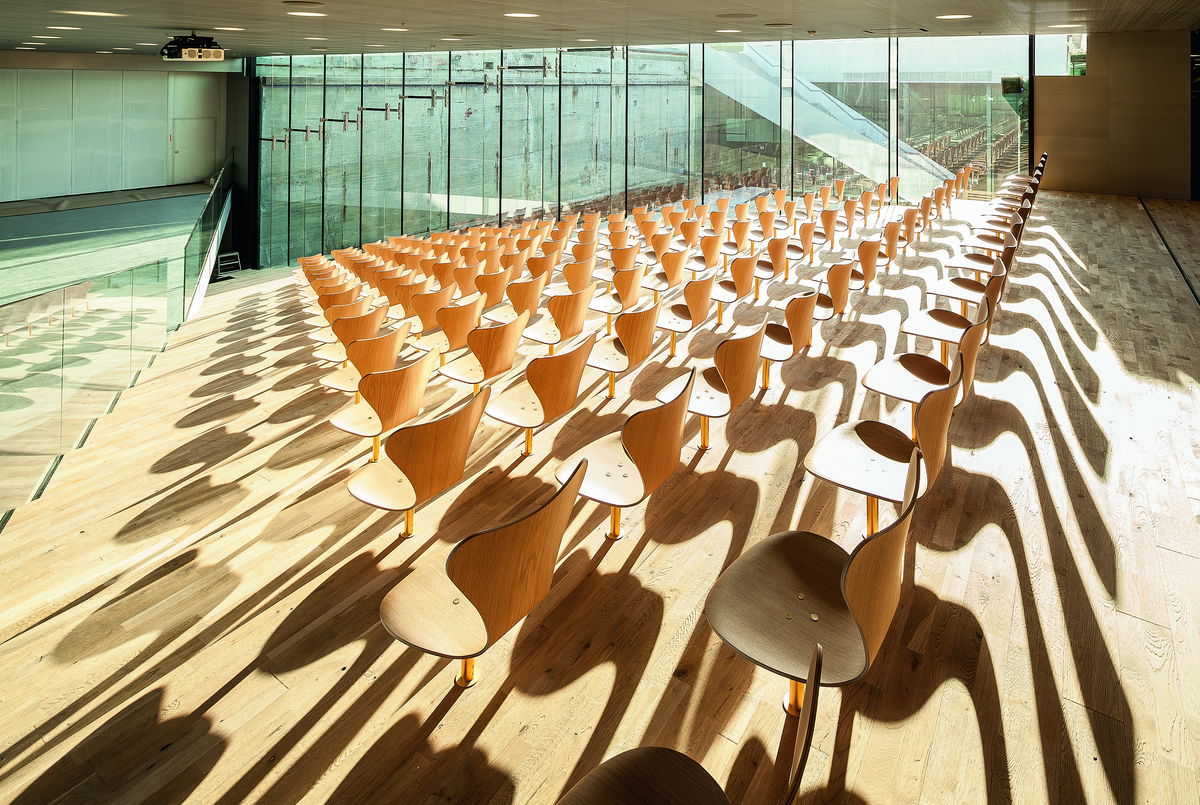

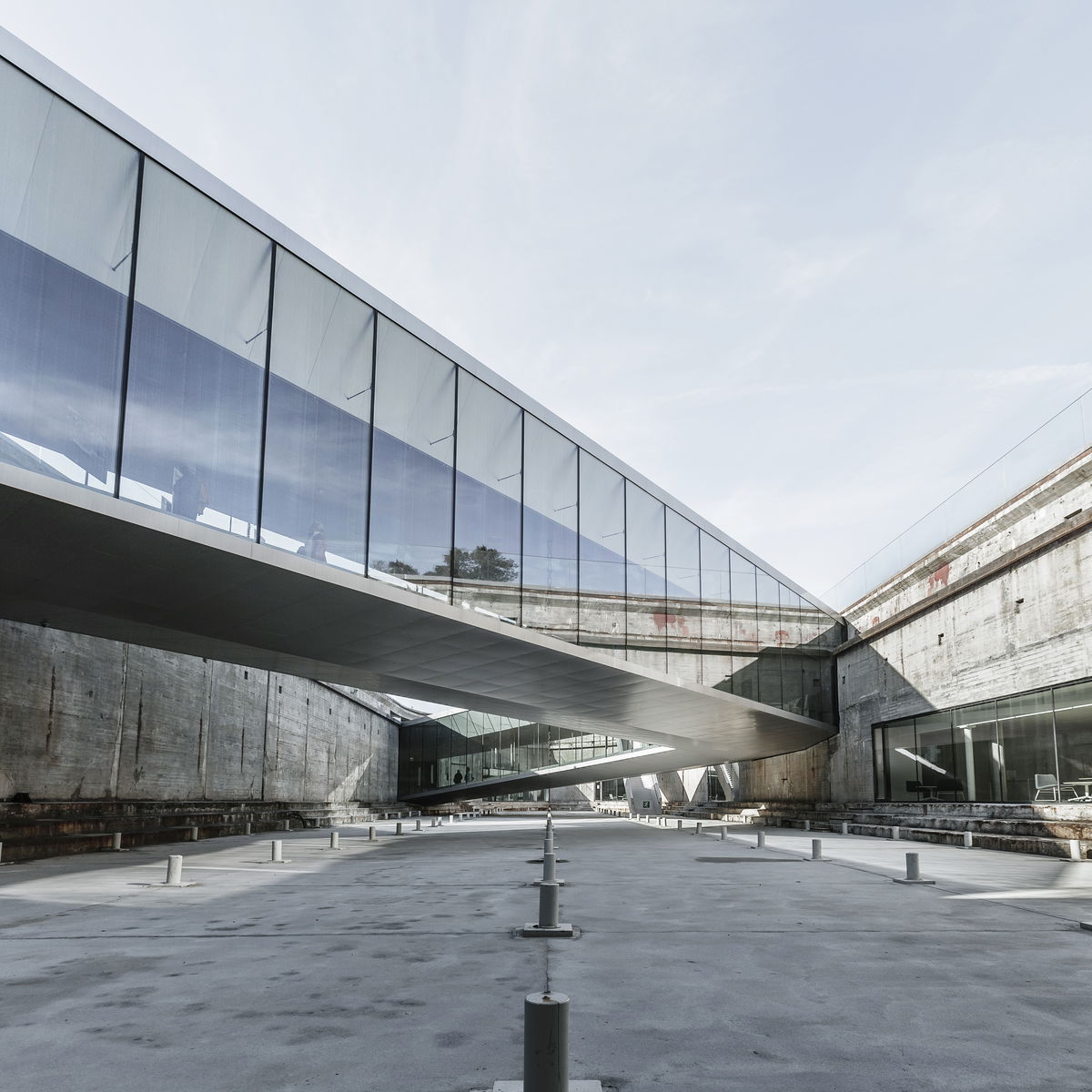

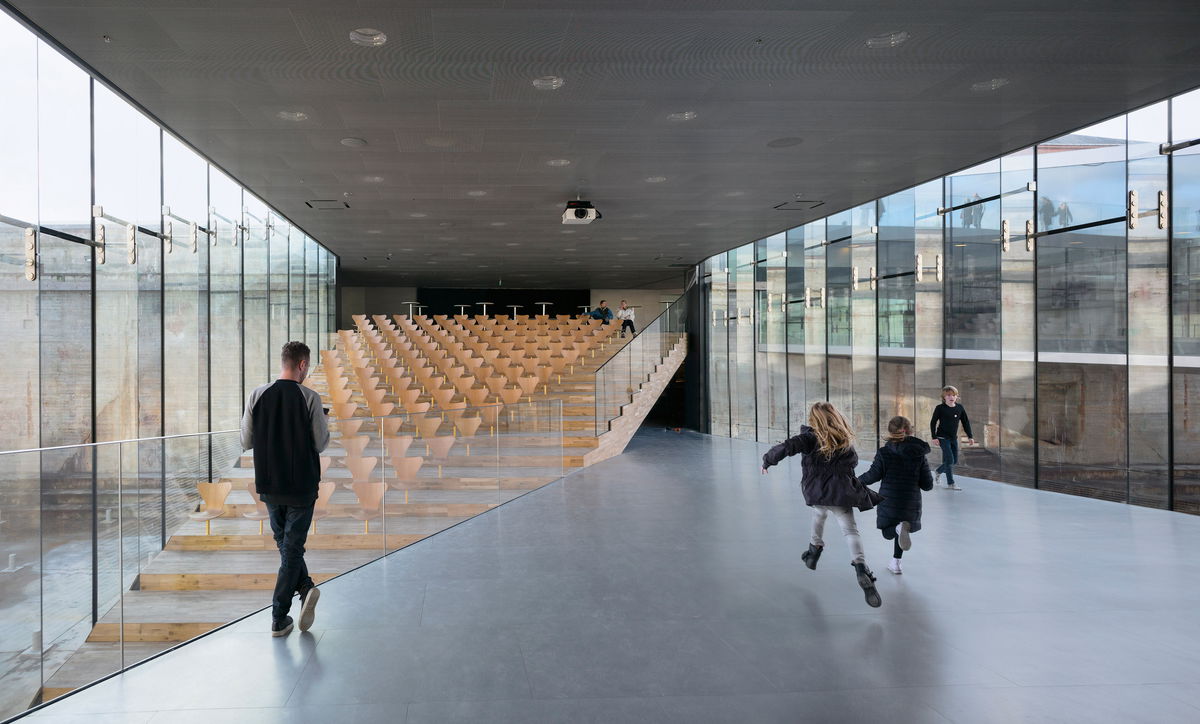

The bridges span the dry dock providing visitors with short-cuts to the various portions of the museum. One bridge serves to navigate visitors to the entrance while another contains an auditorium, creating access from Kronborg Castle to the harbor. The bridges create a dynamic tension between old and new.

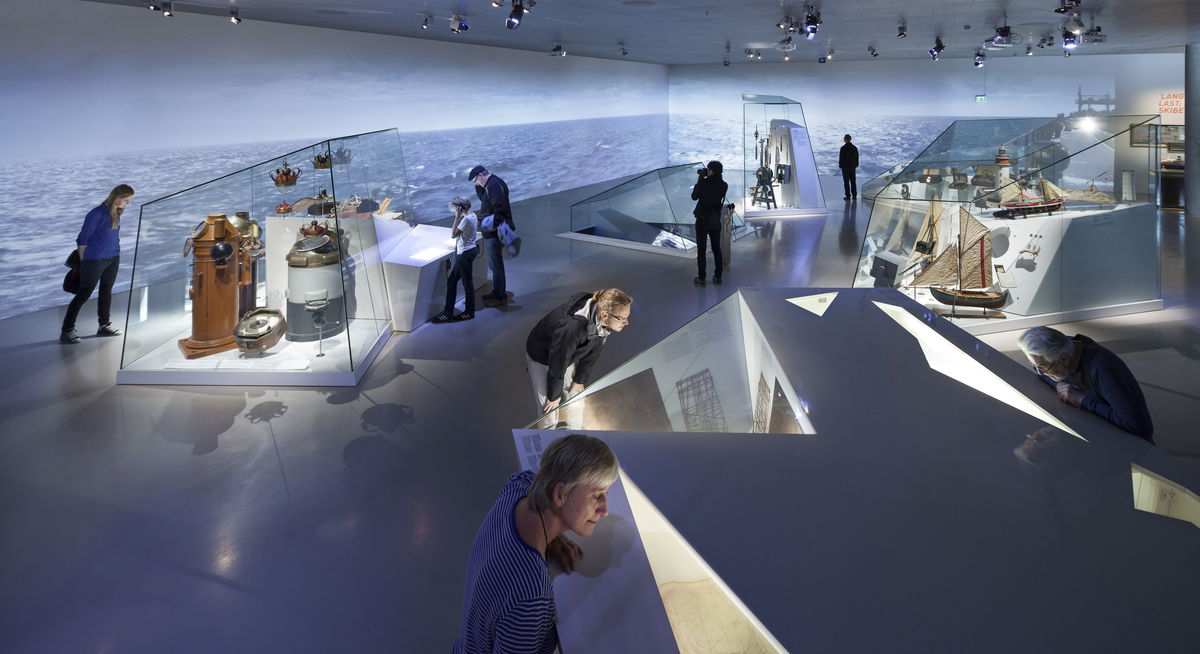

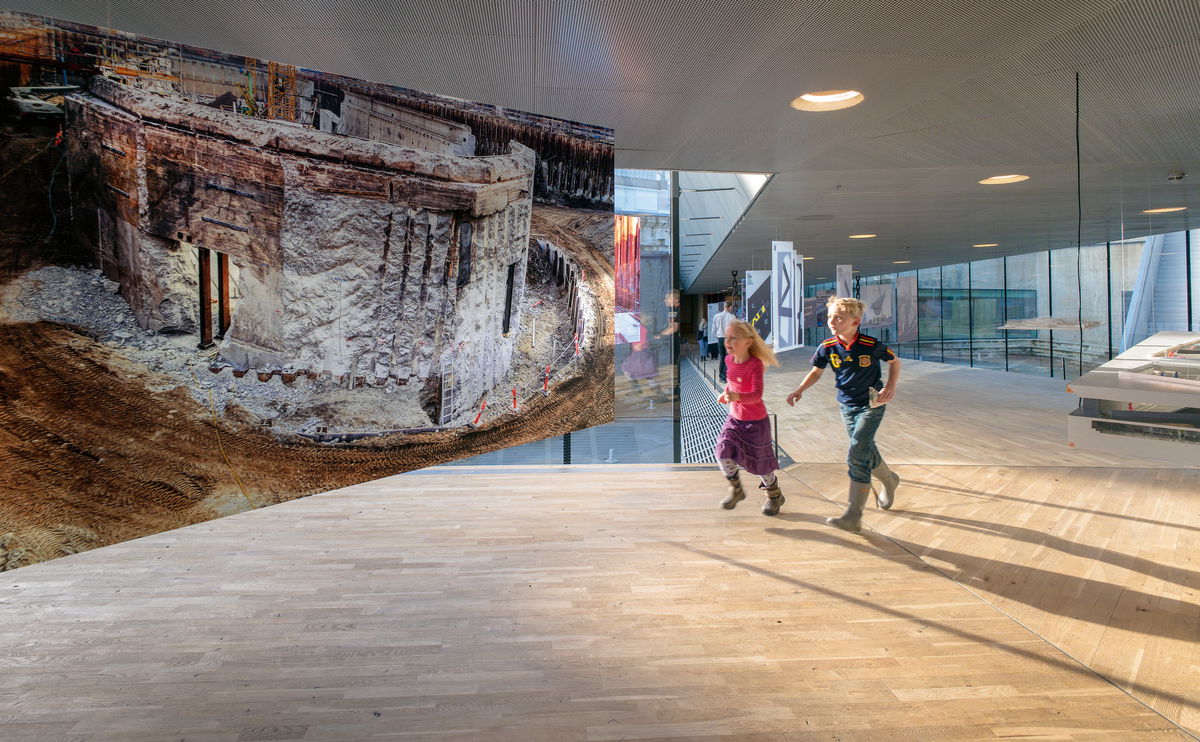

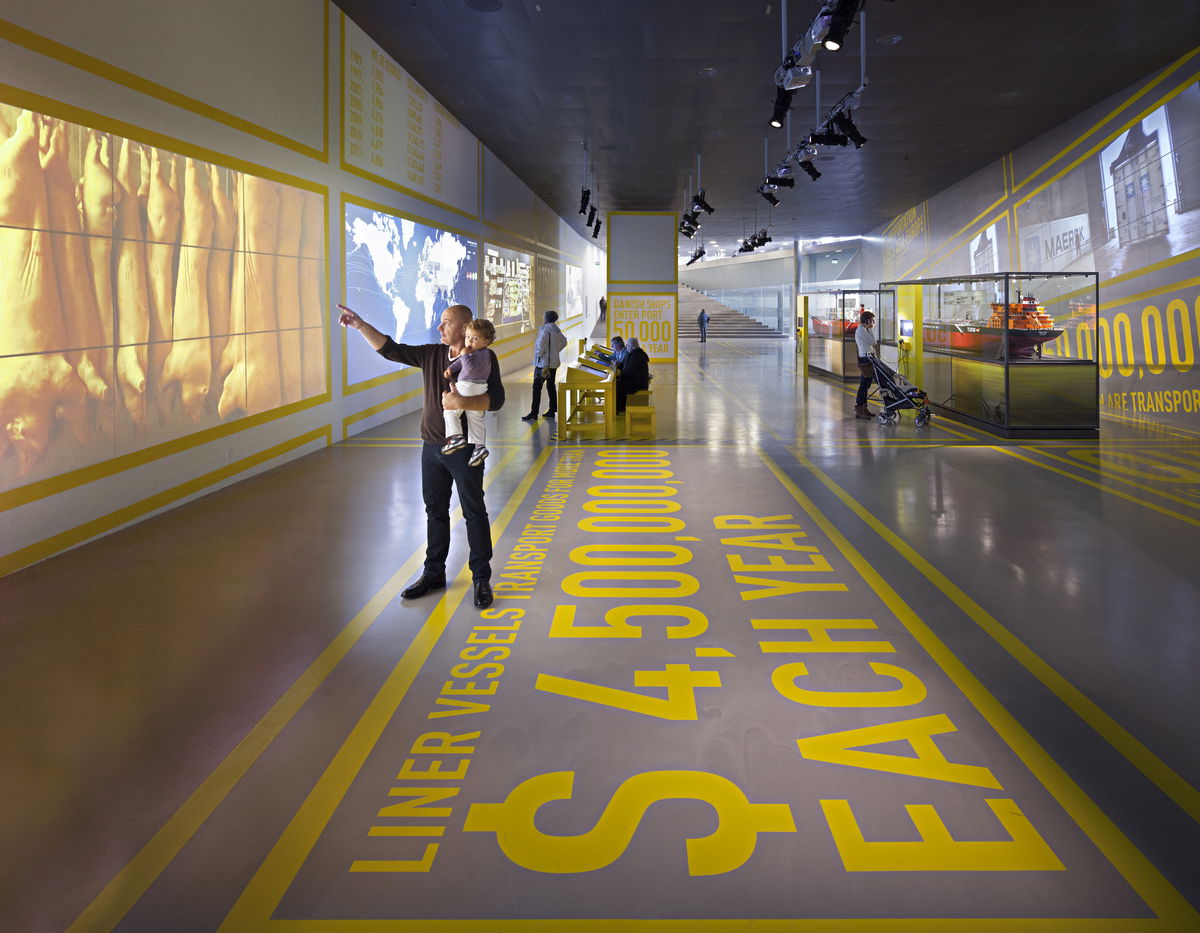

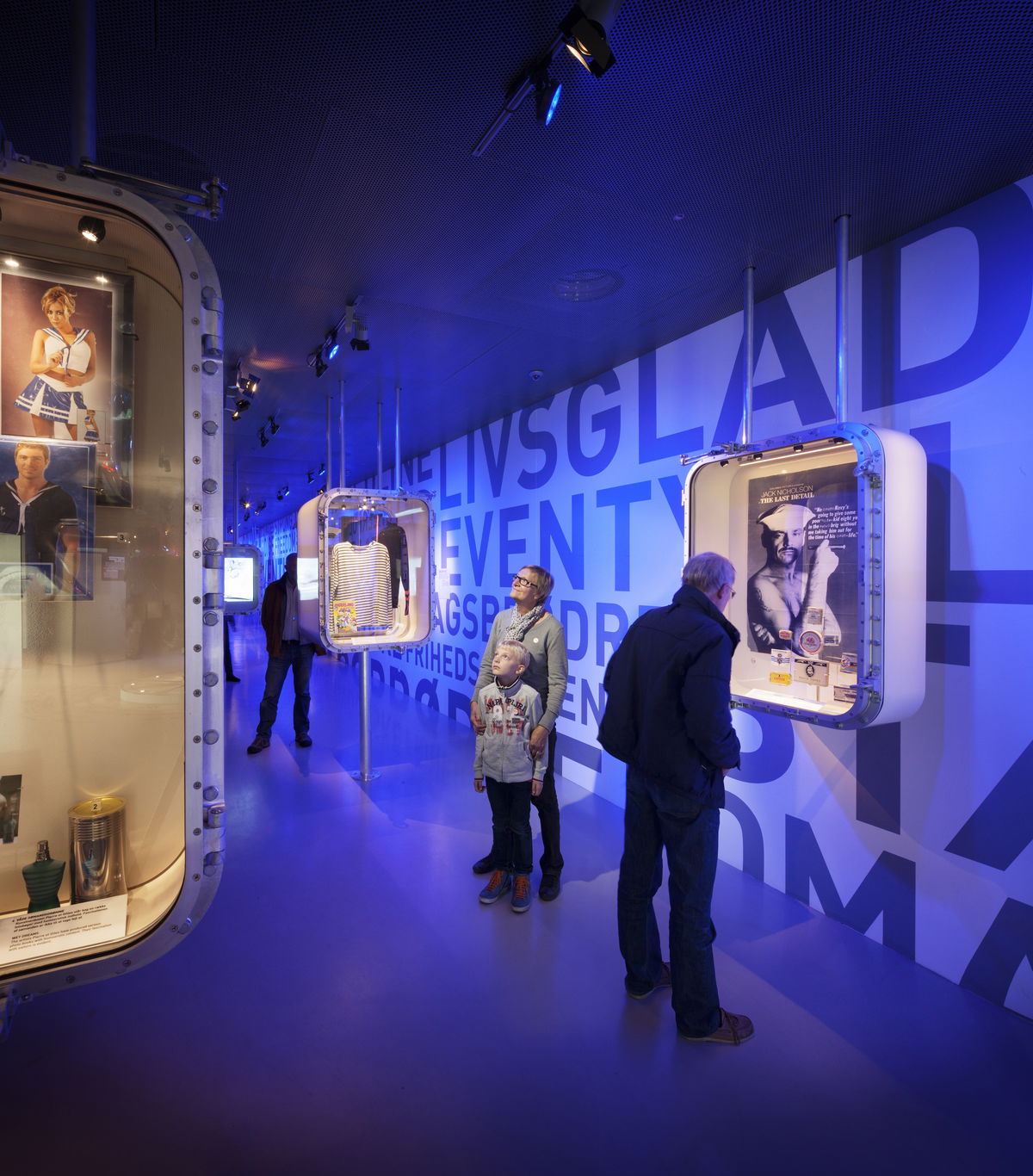

The arrival to the museum is through a descending set of ramps which enter both the dry dock and the world of the seafarer. Like a siren’s song, the museum attracts the passer-by deeper and deeper into the long and noble Danish Maritime history in its galleries, finally standing in the dry dock with a view of the skies.

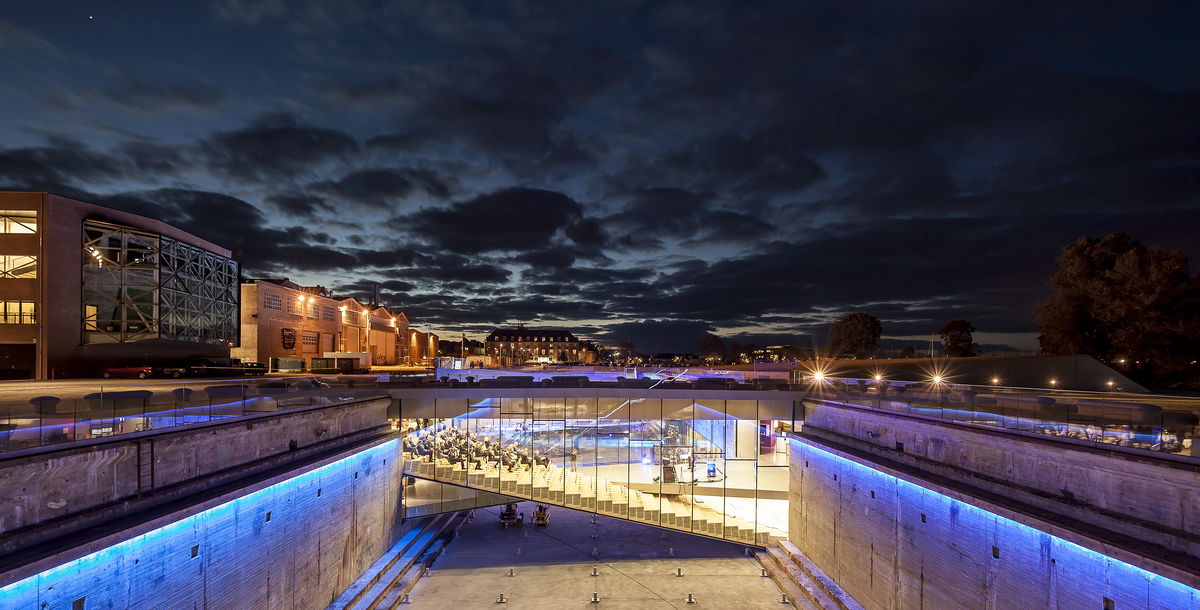

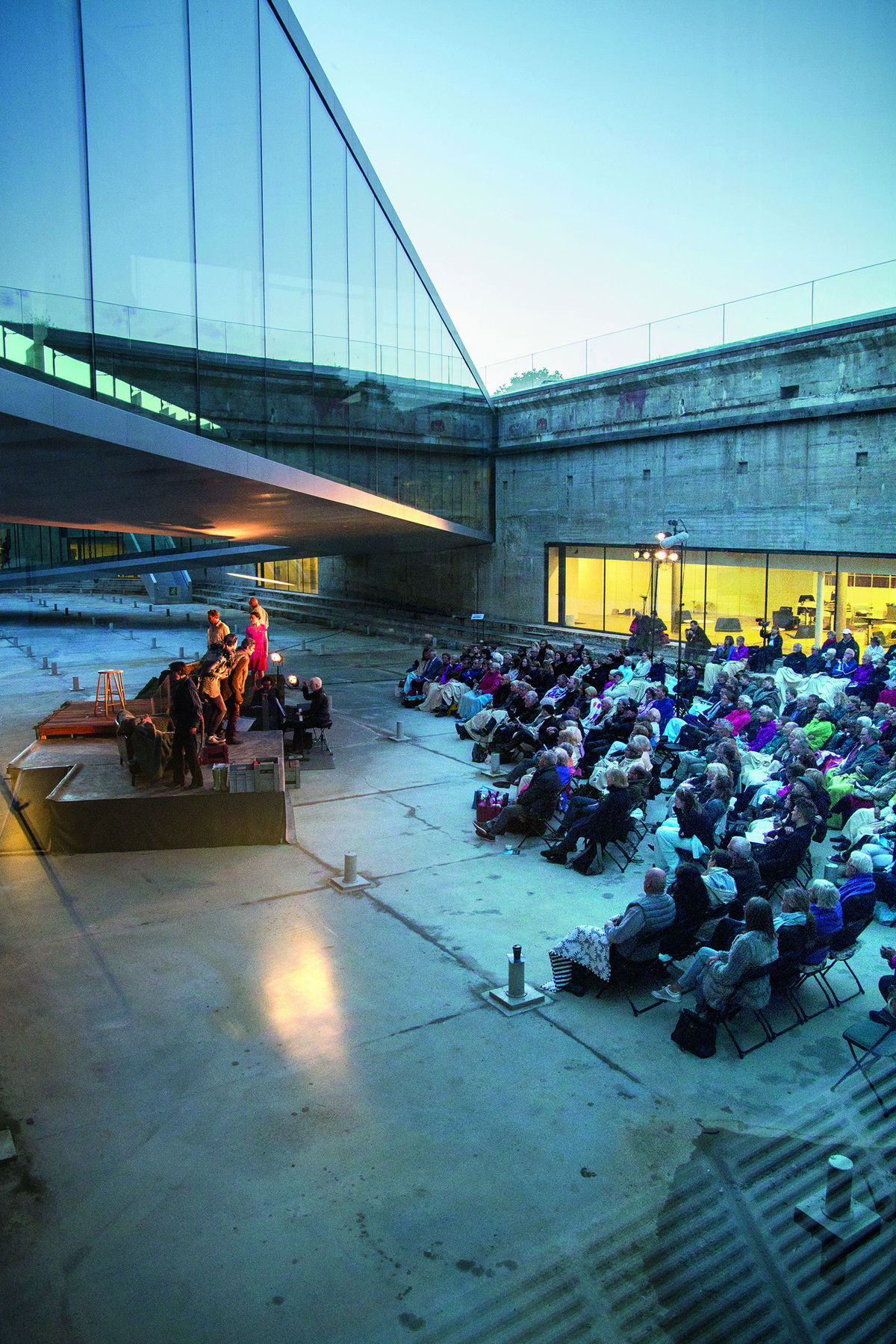

With hard-sound reflecting surfaces and an open ‘ceiling,’ the dry dock’s acoustics are perfect for dance performances and concerts, but also suitable for other outdoor activities, exhibitions, and events – turning the Maritime Museum into a center for cultural life in Helsingor. Through minimal means, BIG’s design created maximum functionality and architectural resonance.

The architecture of the museum is a collision between the old and the new: heavy textured concrete and light transparent steel and glass.

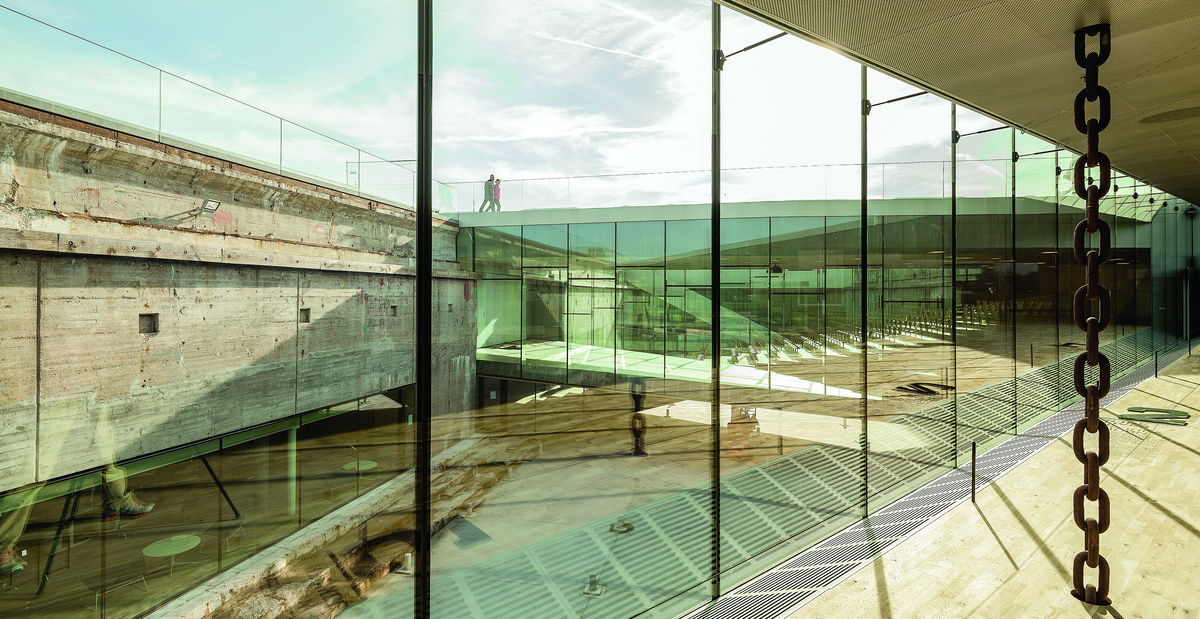

The anchor chain serves the double purpose of exhibit and structure – not just a theatrical element, but a hard working part of the building.

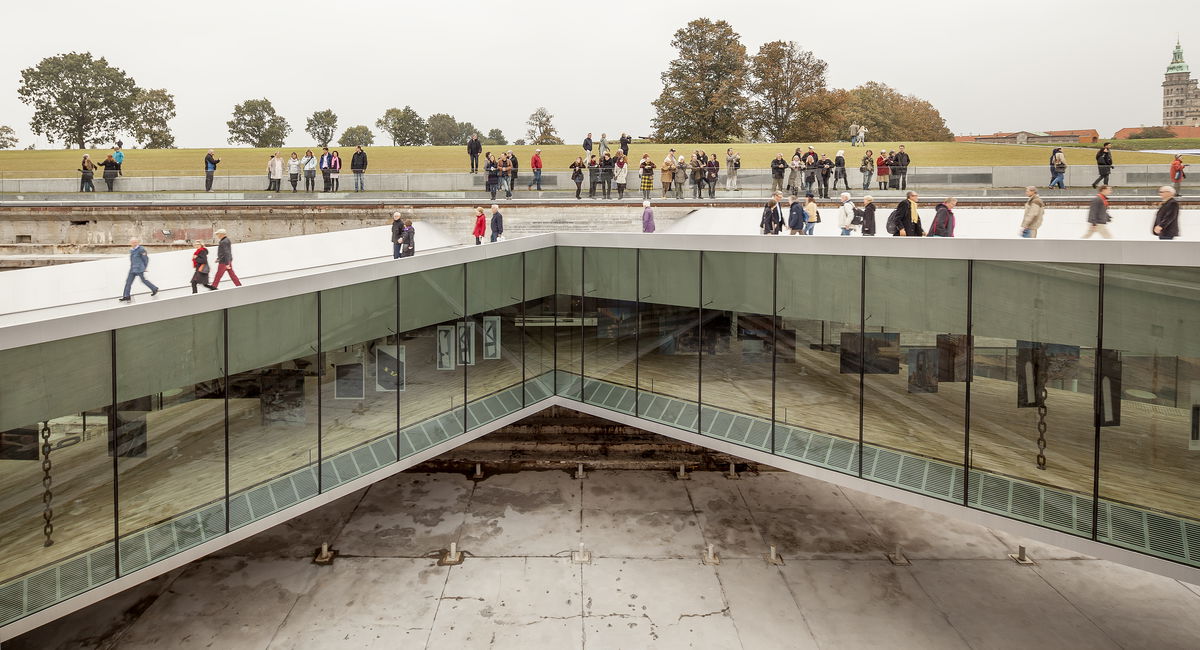

The galleries underneath are tilted glass pavilions open to the surrounding dock. To slim the structure down, the span is cut in half by hanging the floor from the ceiling.

The dock creates a museum space as a cohesive floor plan which discreetly becomes lower and lower across the entire museum length. Simple accessibility ramps and bridges are added, cutting through the dock in a structural and sculptural way.

The museum is a new form of public space as an urban void in Helsingor Docklands – an unexpected venue for the cultural life of Helsingor.

Bjarke Ingels Finn Nørkjær David Zahle Annette Jensen Armen Menendian Jan Magasanik Lone Fenger Albrechtsen Stefan Plugaru Zoltan Kalászi Gül Ertekin Alina Tamosiunaite Alysen Hiller Ana Merino Andreas Geisler Johansen Ariel Joy Norback Wallner Baptiste Blot Christian Alvarez Christin Svensson Claudia Hertrich Claudio Moretti Cory Mattheis Dennis Rasmussen Eskild Nordbud Felicia Guldberg Gaetan Brunet Henrik Kania James Duggan Schrader Jan Borgstrøm Jeppe Ecklon Johan Cool Jonas Mønster Karsten Hammer Hansen Kirstine Ragnhild Lucas Torres Aguero Malte Kloe Michael Andersen Oana Simionescu Rasmus Pedersen Riccardo Mariano Rune Hansen Sebastian Latz Tammy Teng Tina Tröster Todd Bennett Xi Chen Xing Xiong Xu Li Rasmus Rodam Marc Jay Tina Lund Højgaard Jensen Michal Kristof Andy Yu Qianyi Lim Maria Mavriku Masatoshi Oka Pablo Labra Peter Rieff Sara Sosio John Pries Jensen Kristina Loskotova

AWARDS

Dansk Stalpris (Danish Steel Award), 2016

Mies van der Rohe Award Finalist, 2015

RUM Magazine Award for Best Architecture of the Year, 2015

AIA Institute National Honor Award for Architecture, 2015

RIBA Awards European National Winner, 2014

World Architecture Festival Best Cultural Category Winner, 2014

European Prize of Architecture Philippe Rotthier, 2014

Danmarks Rederiforenings SØFARTSPRIS, 2014

Architizer A+ Awards Jury Winner, 2014

AIANY Design Awards Honor for Architecture, 2014

ArchDaily Cultural Building of the Year, 2014

DETAIL Prize, 2014

AL Light & Architecture Design Awards Commendable Achievement, 2014
